ALLNET RS102-D4E32H

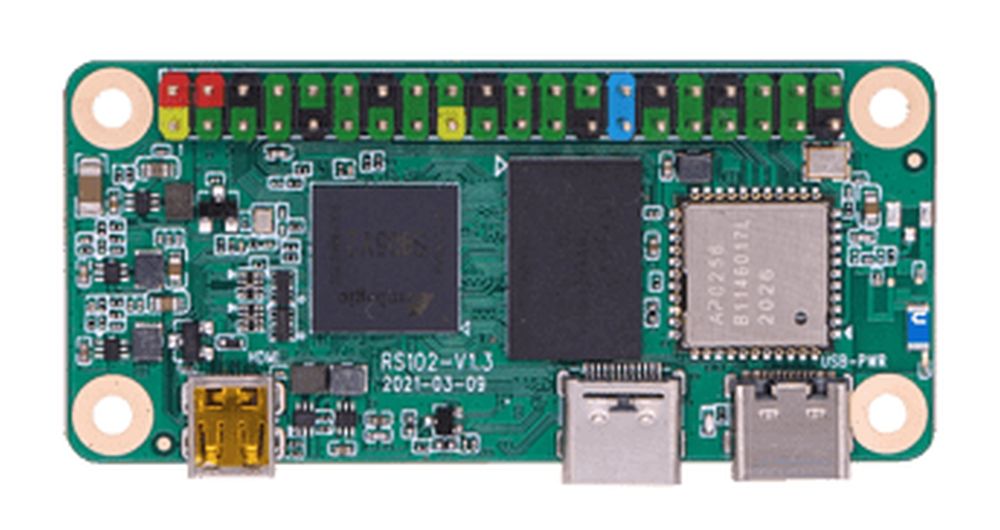

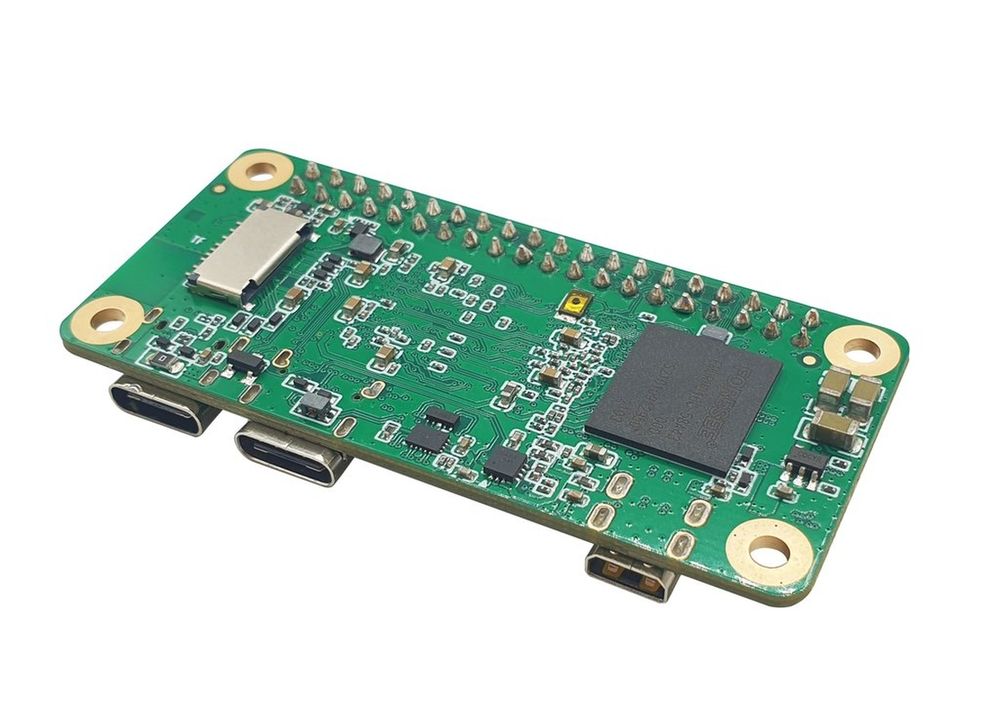

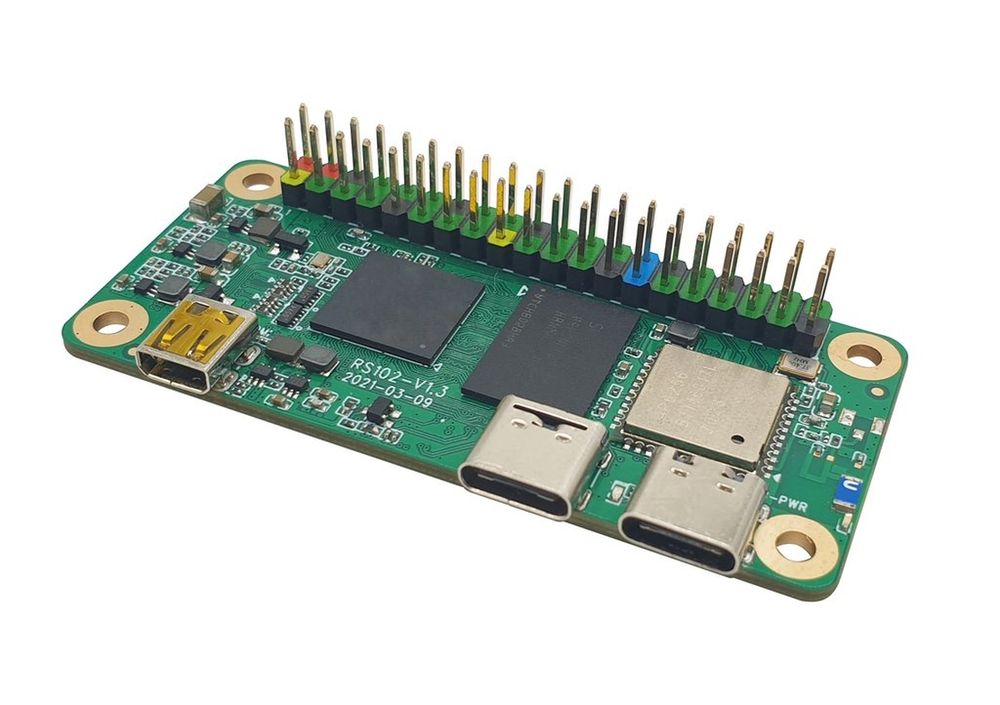

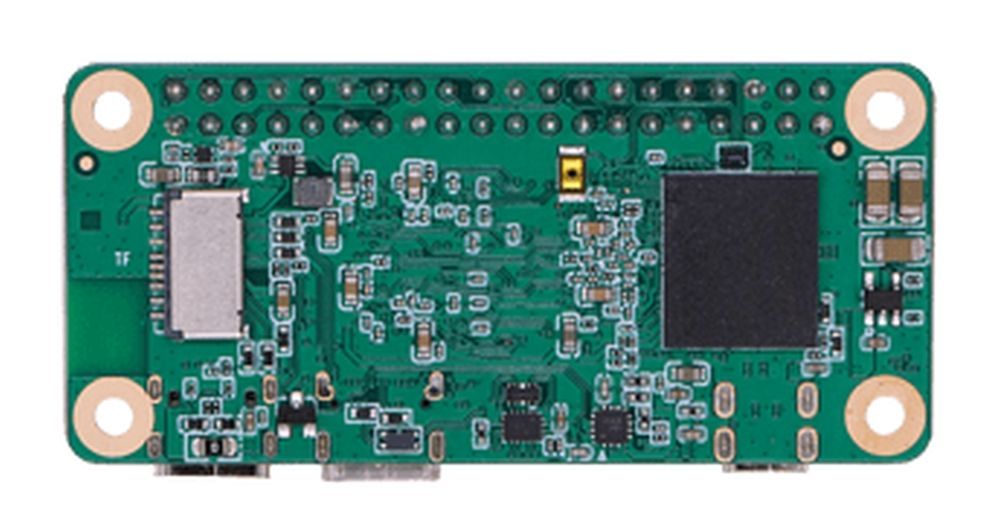

Radxa Zero 4GB/32GB D4E32H, pin strip soldered, antenna onboard
|
64,18 EUR |
|
|
( 76,37 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Lieske Part No.: | 1895355 |
|---|---|
| Mfg Part No: | RS102-D4E32H |
| UPC/EAN: | 4038816114341 |
| Weight: | 0.03 kg |
Product information for ALLNET RS102-D4E32H:
Amlogic S905Y2 64bit quad core based Mini SBC
Quadcore power with up to 4GB LPDDR4 RAM with the dimensions of a USB stick.
WLAN chipset OK AP6256
RADXA Zero product details
Amlogic S905Y264bit quad-core processor
Quad Cortex-A53, frequency 1.8Ghz, 12nm
GPU
Mali G31 MP2 GPU, supports OpenGL ES 1.1 /2.0 /3.1 /3.2, Vulkan 1.1, Open CL 1.1 1.2, 2.0 Full Profile
Memory LPDDR4
64bit dual channel LPDDR4@3200Mb/s, 1GB/ 2GB or 4GB
Wifi/BT Antenna
Wifi/BT with external antenna support*

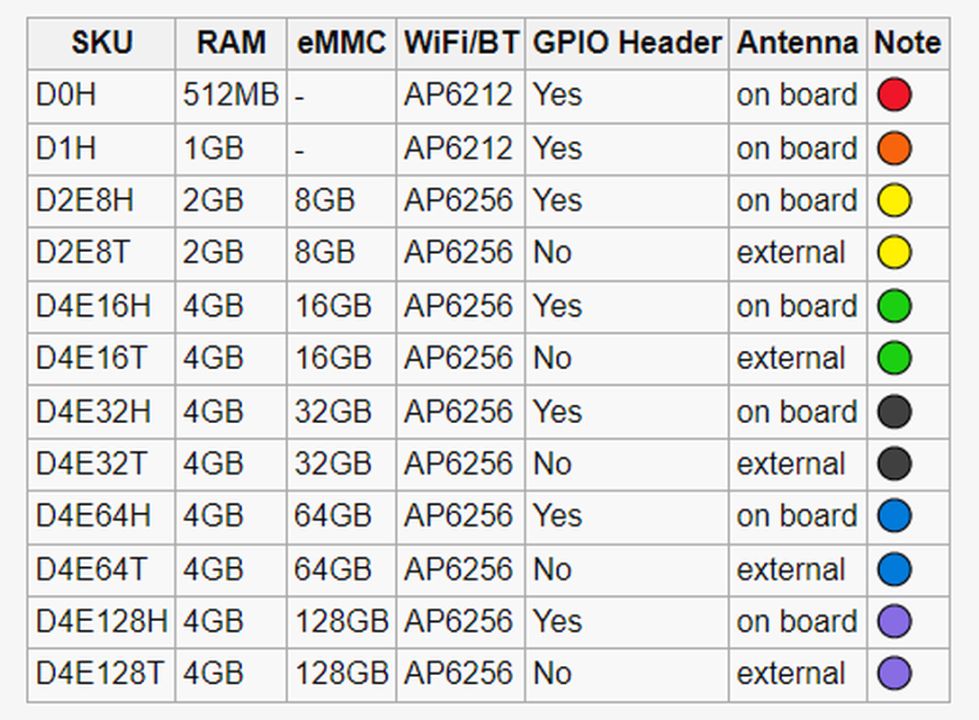

* WIFI4/BLE4 and WIFI4/BLE5 available for different models!
Storage eMMC 5.1
soldered high performance eMMC 5.1 with capacities of 8GB/ 16GB
Micro SD card
uSD slot supports up to 128G uSD card
Display Micro HDMI
HDMI 2.1, 4K@60 HDR
Periphery
HD codec H265/VP9 decode 4Kx2K@60
USB 3.0 Type-C HOST x1
USB 3.0 HOST
dedicated USB3.0 channel
USB 2.0 Type-C OTG x1
USB 2.0 OTG
Network (depending on the model)
Wireless 802.11 abgn wifi 2.4GHz, Bluetooth 4.2
Wireless 802.11 ac wifi 2.4/5GHz, Bluetooth 5.0
IO 40-pin expansion header:
Quadcore power with up to 4GB LPDDR4 RAM with the dimensions of a USB stick.
WLAN chipset OK AP6256
RADXA Zero product details
Amlogic S905Y264bit quad-core processor
Quad Cortex-A53, frequency 1.8Ghz, 12nm
GPU
Mali G31 MP2 GPU, supports OpenGL ES 1.1 /2.0 /3.1 /3.2, Vulkan 1.1, Open CL 1.1 1.2, 2.0 Full Profile
Memory LPDDR4
64bit dual channel LPDDR4@3200Mb/s, 1GB/ 2GB or 4GB
Wifi/BT Antenna
Wifi/BT with external antenna support*
* WIFI4/BLE4 and WIFI4/BLE5 available for different models!
Storage eMMC 5.1
soldered high performance eMMC 5.1 with capacities of 8GB/ 16GB
Micro SD card
uSD slot supports up to 128G uSD card
Display Micro HDMI
HDMI 2.1, 4K@60 HDR
Periphery
HD codec H265/VP9 decode 4Kx2K@60
USB 3.0 Type-C HOST x1
USB 3.0 HOST
dedicated USB3.0 channel
USB 2.0 Type-C OTG x1
USB 2.0 OTG
Network (depending on the model)
Wireless 802.11 abgn wifi 2.4GHz, Bluetooth 4.2
Wireless 802.11 ac wifi 2.4/5GHz, Bluetooth 5.0
IO 40-pin expansion header:
- 1 x UART
- 2 x SPI bus
- 2 x I2C bus
- 1 x PCM/I2S
- 1 x SPDIF
- 1 x PWM
- 1 x ADC
- 6 x GPIO
- 2 x 5V DC power in
- 2 x 3.3V power pin Others
Crypto Engine
one button
Size 66mm x 30mm
Essentials You NeedRADXA ZERO Power adapter with USB type C port equal or larger than 5W MicroSD Card or onboard eMMC module Keyboard < Mouse Monitor with HDMI input
