RADXA CM3i industrial embedded SOM module 2GB RAM /8GB EMMC Wifi/BT

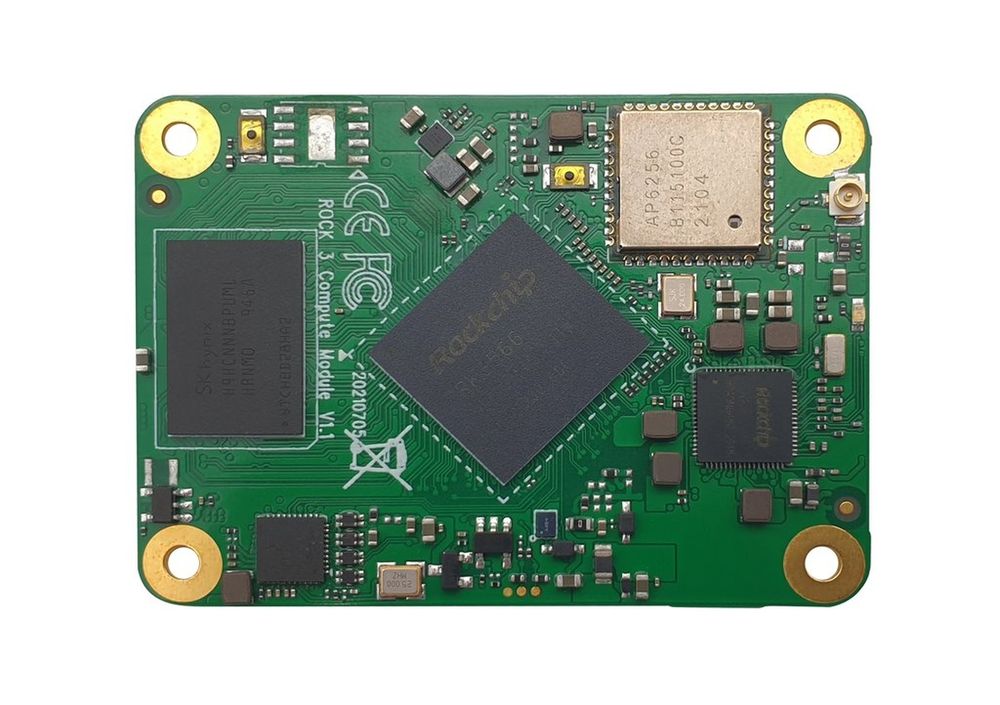

RADXA's new CM3I is a feature-rich industrial embedded SoM (System on Module)
based on the Rockchip RK3568 (J) industrial grade SoC in a small form factor of 70mm x 40mm, it integrates CPU/PMU/DRAM/FLASH STORAGE and wireless. (WiFi5/BT5)
Radxa's CM3I provides an out-of-the-box, cost-effective solution for countless applications. It also simplifies and accelerates industrial product development.
Features Overview:
Quad-core 64-bit high-performance solution
The Radxa CM3I is powered by the Rockchip RK3568(J) SoC, a 64-bit Quad Cortex A55 (ARM v8) low-power core running at 2.0GHz. It is available with a maximum of 8 GB RAM, up to 128 GB eMMC storage and powerful networking capabilities (onboard Gigabit Ethernet PHY and WLAN IEEE802.11b/g/n/ac + BLE5).

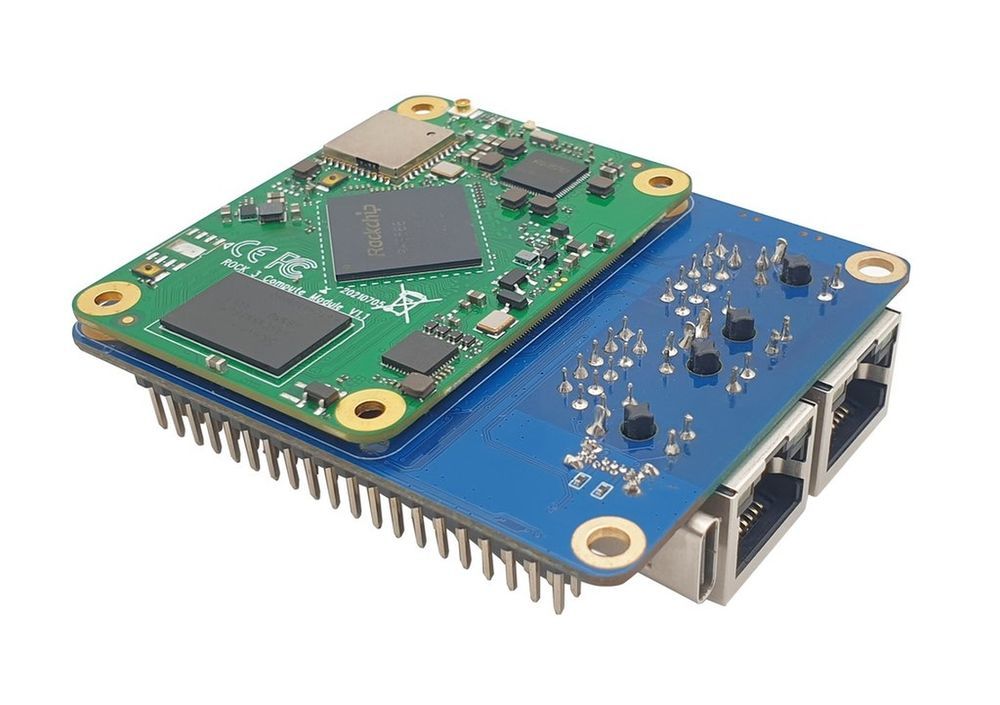

When developing a carrier board, engineers can save time developing industrial solutions and deploying them for mass production.
Rich interfaces
I2C, SPI, UART, ADC, PWM, GPIO, Ethernet, CAN, PDM, USB2, USB3, I2S, MIPI,
SATA, eDP interfaces are available as well as high bandwidth PCIe 2.0 buses.
Display Capability
Dual Video Out Processor supports dual screen output via HDMI, eDP, MIPI, DP, with resolution up to 4K x 2K and a 2.5k
Powerful multimedia support
4K VP9 and 4K 10bits H264/H265 video decoding, up to 60FPS
decoding multiple 1080P video formats including VC-1, MPEG-1/2/4, VP8
1080P encoding in H.264, VP8 formats
Small size and low power consumption

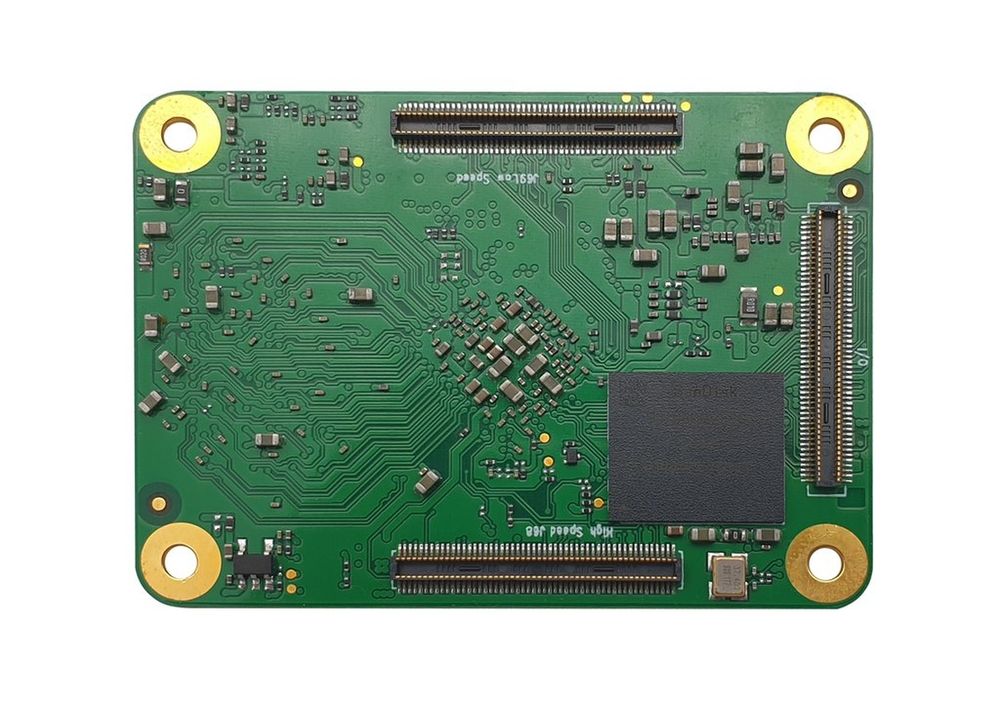

The 70mm x 40mm form factor and the industry-standard 4 x 100PIN board-to-board connectors save board space and provide standardized interfaces that save board space.
Multiple operating systems support
Ubuntu / Debian / Android (11/12)
Open documents and source code
Source code, documents, tools and utilities are freely available, community and commercial support are available to help you move your prototype into production
Wide widely used in various applications
Perfect SoM for robotics, industrial control, medical devices, etc.
Detailed specifications:
Processor:
Rockchip RK3568 (J), Quad-Core Cortex-A55 (ARM v8) 64-bit SoC @2.0GHz
Memory:
1GB, 2GB , 4GB or 8GB LPDDR4 (depending on variant)
Connectivity:

• Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac
wireless, Bluetooth 5.0, BLE with integrated and external antenna options

• Integrated Gigabit Ethernet PHY
• 1 × USB 2.0 port (high speed), 1 × USB 3.0 port (5 Gbps)
• 1 × PCIe 1-Lane Host, Gen 2 (5Gbps)
• 2 x SATA ports, one shared with USB 3, one shared with PCIe
• 50 × GPIO support
video :

• 1x HDMI up to 4K x 2K@60HZ
• 1x eDP four lanes, 2.7Gps per lane
• 2x MIPI DSI four lanes, 1.6 Gbit/s per lane
Audio:

• LINEOUT
• I2S
• PDM, supports microphone array
multimedia :

• VP9/H.264/H.265 decoding 4K@60HZ
• H.264/H.265 encodes 1080P@100HZ
• OpenGL ES 3.2/OpenCL 2.0/Vulkan 1.1 GPU
input voltage: 5V DC
Connection: 4x 100P 0.5mm pitch B2B Connection
Operating temperature:
J0 model (RK3568) 0° to 60° C
Model J1 (RK3568J) -40° to 85° C
Dimensions: 70 mm × 40 mm
