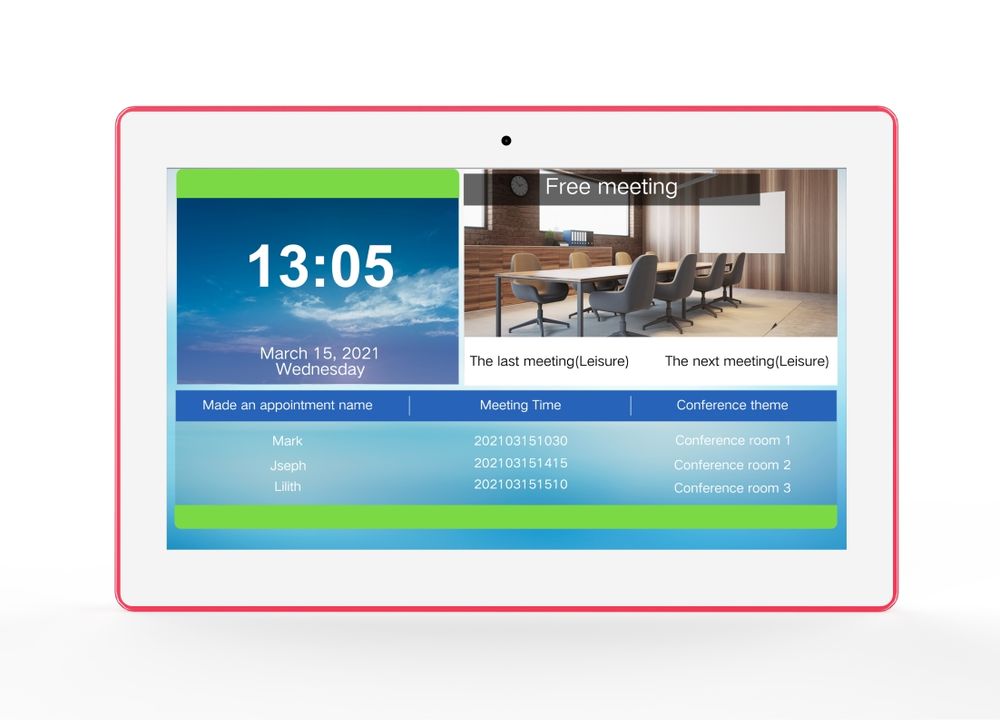

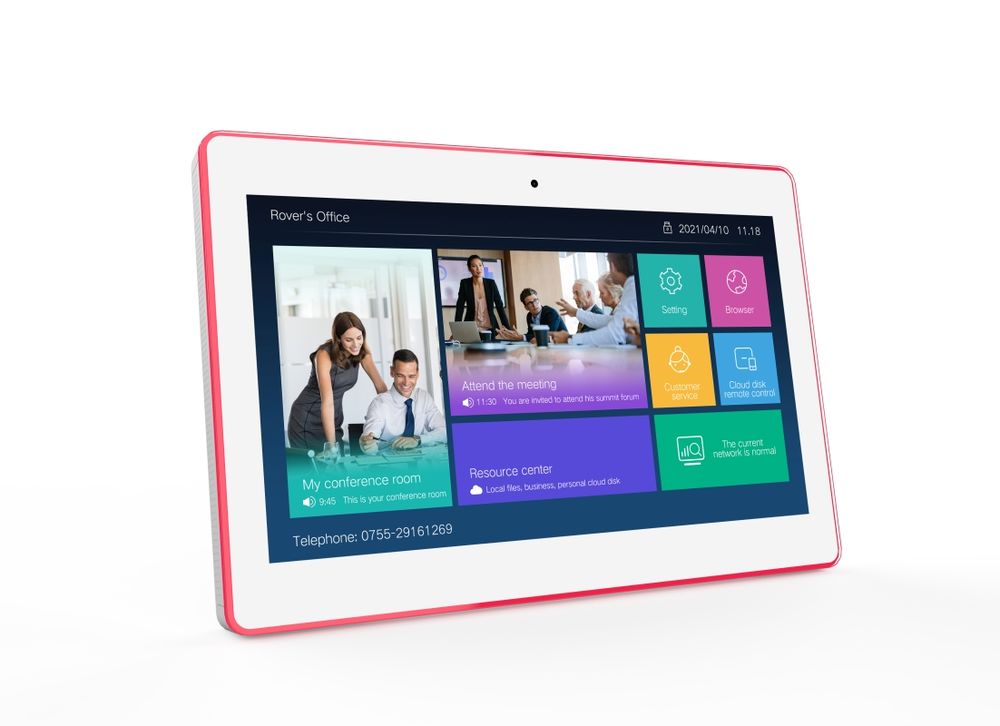

ALLNET meeting room RGB LED tablet 15 inch RK3399 white Android 10 and NFC/RFID

ALLNET meeting room LED tablet 15 inch RK3399 Android 10 and RFID (NXP Mifare, Desfire)

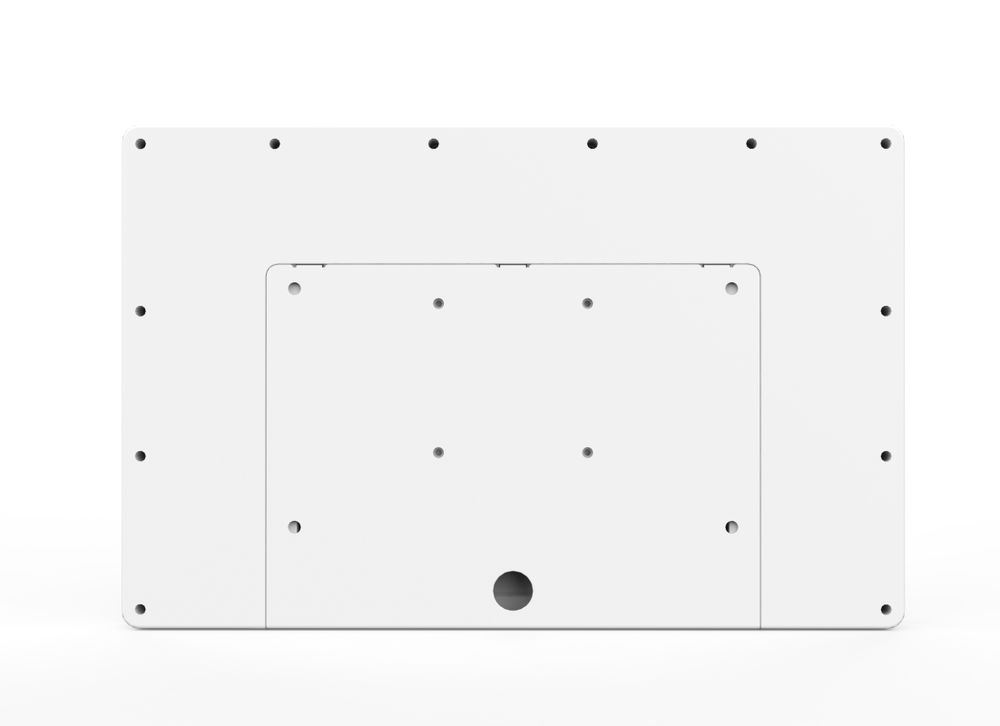

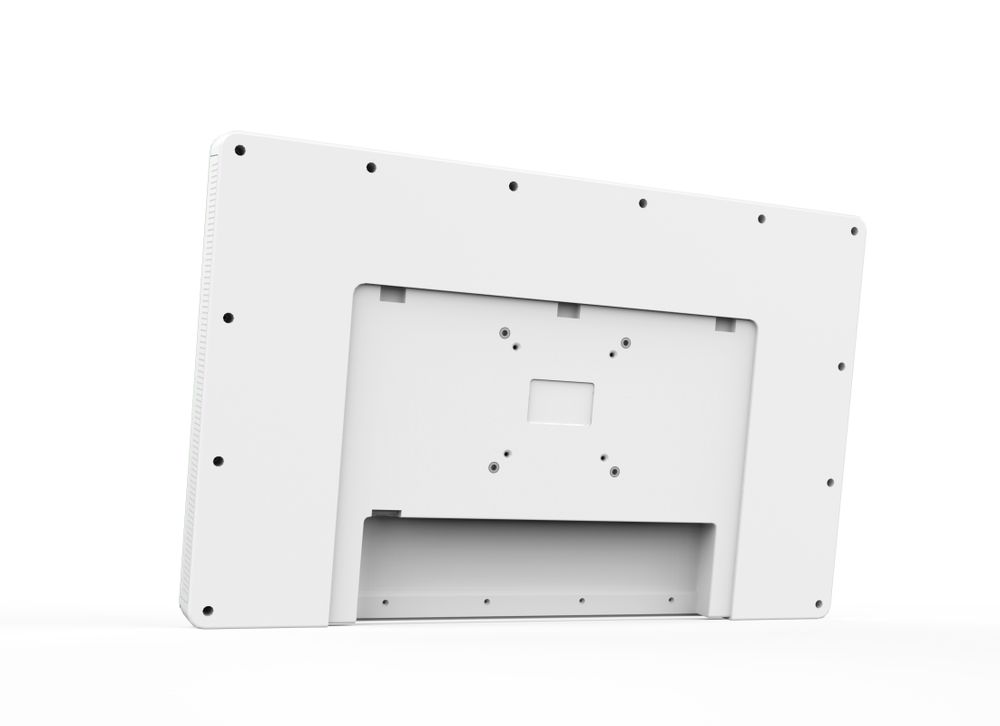

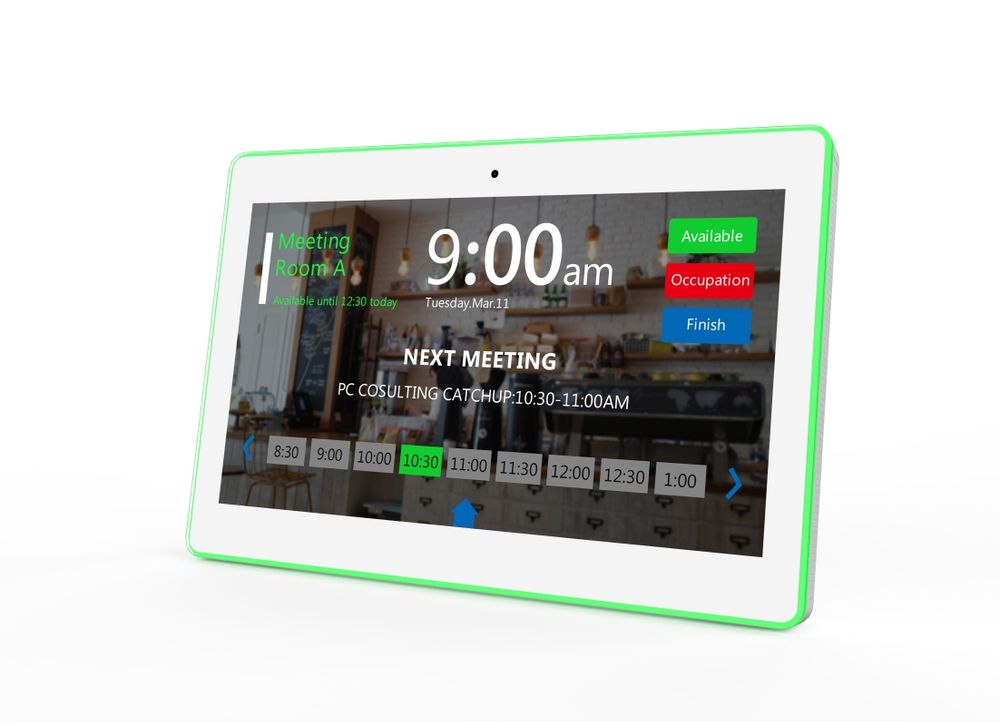

Includes power supply and integrated snap-in wall mount with theft protection. RGB LED for displaying, for example, warning signals, occupancy of meeting rooms, etc.
NFC can also be used to implement time recording terminals or information terminals with ID, such as multi-unit residential complexes.
Currently tested Android time terminal software: PDS time works, but the config file has to be imported manually, the camera is not addressed. According to the manufacturer, AIDA time works with our article numbers 174715/174716/174717/174888 and 182897 The API/SDK for NFC/RFID and LED We are happy to provide it upon request.
Specifications NFC: NXP PN7150
PN7150 is a full-fledged NFC controller solution with integrated firmware and NCI interface for contactless communication at 13.56 MHz. It is compatible with NFC Forum requirements.
PN7150 was developed based on lessons learned from previous generations of NXP NFC devices. It is the ideal solution for quickly integrating NFC technology into any application, especially those working with O/S environments such as Linux and Android.

• Full NFC Forum compliance with small form factor antenna
• Embedded NFC firmware that offers all NFC protocols as a pre-integrated feature
• Direct connection to the main host or microcontroller, through physical I2C bus and NCI
protocol

• Ultra-low power consumption in polling -Loop mode
• Highly efficient integrated power management unit (PMU)
• supported RF protocols
– NFCIP-1, NFCIP-2 protocol (see [8] and [11])
– ISO/IEC 14443A, ISO/IEC 14443B PICC, NFC Forum T4T modes via host interface (see [3])
– NFC Forum T3T via host interface
– ISO/IEC 14443A, ISO/IEC 14443B PCD designed according to NFC Forum digital protocol T4T platform and ISO-DEP
– FeliCa PCD mode
– MIFARE PCD encryption mechanism ( MIFARE Classic 1K/4K)
– NFC Forum tag 1 to 5 (MIFARE Ultralight, Jewel, Open FeliCa tag, MIFARE DESFire) (see [1])
– ISO/IEC 15693/ICODE VCD mode (see [9])
Further information can be found Please refer to the NFC data sheet. System CPU RK3399 RAM 2GB Internal memory 16GB Operation system Android 10

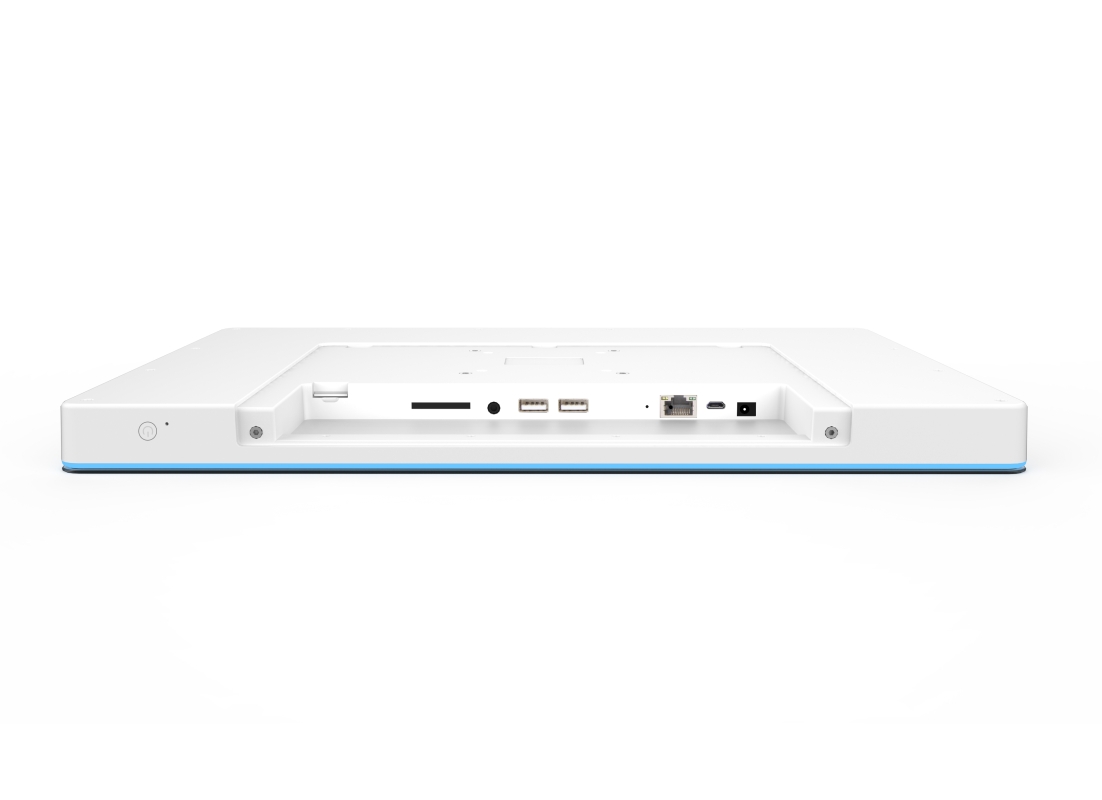

Display Touch screen 10-Point capacitive touch Panel 38,1 cm ( 15 inch ) LCD panel Resolution 1920x1080 Active area 344(H)x190mm(V) Display mode Normally black ,IPS Viewing angle 85/85/85/85(L/R/U/D) Contrast ratio 800 Luminance 280cd/m2 Aspect Ratio 16:9 Network WiFi 2.4/5GHz 802.11a/b/g/n Ethernet 100M/1000M Ethernet Buletooth Bluetooth 4.0 Interface Card slot SD card USB USB Host Micro USB Micro USB OTG USB USB for serial RJ45 with POE RJ45 POE IEEE802.3at Power jack DC power input Earphone 3.5mm earphone Media play Video format MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4K Audio format MP3/WMA/AAC etc. Photo jpeg, png, etc. Other VESA 204.5mm NFC NFC with 13.56M frequency)/RFID NXP Desfire Camera 2.0M/P,Front camera Microphone Microphone Speaker 2*1.5W LED Light bar LED light bar with RGB and mixed color Working temp 0--40degree Certificates CE/FCC/RoHS Language Multi-language Accessories Adapter Adapter,12V/2.5A User manual yes
