ALLNET outdoor antenna 5.8GHz 24dBi parabolic N-Type L-com

Your rating:
Average rating
product review for ALLNET outdoor antenna 5.8GHz 24dBi parabolic N-Type L-com
( 4.4 / 5 ) 16 ratings
Allnet HG5824DAllnet HG5824DAllnet HG5824DAllnet HG5824DAllnet HG5824DAllnet HG5824D
Allnet HG5824D
This image may differ from the desired article.
11.998,80 EUR
( 14.278,57 EUR incl. VAT )
≈ £10,282.97  |  ≈ $13,630.64
plus delivery charges: 53,00 €
Made to order · Delivery time approx. 25 workdaysinfo_outline
1x ALLNET outdoor antenna 5.8GHz 24dBi parabolic N-Type L-com
Printing view Bookmark Wholesale Inquiry
Lieske Part No.:301102
Mfg Part No: HG5824D
UPC/EAN: 4038816317032
Weight:2.71 kg
Graduated prices net
From piecesPrice per pieces
211.908,81 EUR
411.818,82 EUR
611.728,83 EUR
811.638,84 EUR
Further Antennas from AllnetFurther products in category Antennas All products of Allnet

Product information for Allnet HG5824D:

ALLNET antenna 5.8 GHz 24dBi parabolic outdoor N-Type L-com
Highlights:Parabolic WLAN antenna
5.8 GHz ISM band
Charactersitics: 9 degrees horizontal and vertical
Lable: HG5824D
Radiation angle: H9 degree, V9 degree
N-Type port
Superior performance

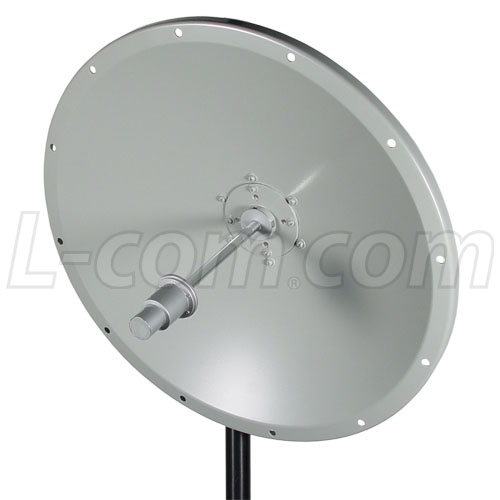

The HyperGain 5.8GHz High Performance Parabolic Dish WLAN Antenna is ideal for directional 5.8GHz ISM / UNII band applications. It has 24 dBi gain with a 9° beam width. This antenna can be oriented in either vertical or horizontal polarization.
Robust and weatherproof
The reflector bowl of this antenna is made of high-quality aluminum for particularly good strength. The shell is coated with a light gray UV polymer for durability and aesthetics. The small diameter of the shell minimizes wind exposure.
Specifications
Model
HG5824D
Frequency
5725-5850 MHz
Gain
24 dBi
Polarization
Horizontal or Vertical
Horizontal Beam Width
9°
Vertical Beam Width
9°
Front to Back Ratio
30 dB
Impedance
50 Ohm
Max. Input Power
100 Watts
VSWR
< 1.5:1 avg.
Weight
6.6 lbs. (3 kg)
Diameter
17.2 in. (436.8 mm)
Mounting
3 cm ( 1,2 inch ) (32 mm) to 5,1 cm ( 2 inch ) (51 mm) dia. masts
Operating Temperature
-40° C to 85° C
(-40° F to 185° F)
Lightning Protection
DC Short
Connector
N-Female
RoHS Compliant
Yes

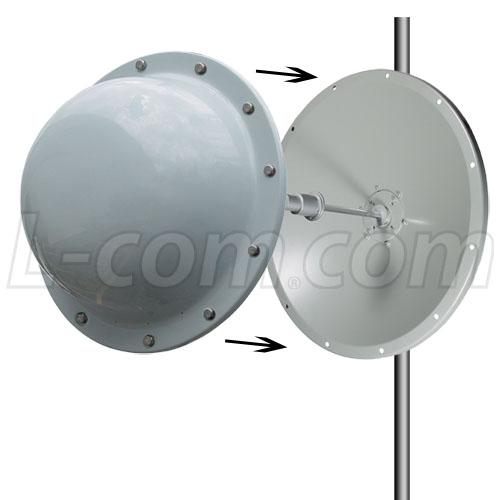

Radome Cover Part Number
HGR-04
Wind Loading Data
Wind Speed (MPH)
Loading
100
53 lb.
125
82 lbs.
