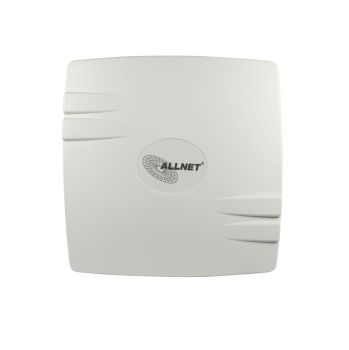

Allnet ANT-DUAL-PATCH-185
WLAN.eu antenna 2.4 / 5 GHz Flat Patch Outdoor 4/7 dBi N-Type
|
80,19 EUR |
|
|
( 95,43 EUR incl. VAT ) ≈ £68.80 | ≈ $92.94 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 194915 |
|---|---|
| Mfg Part No: | ANT-DUAL-PATCH-185 |
| UPC/EAN: | 4038816926609 |
| Weight: | 1.15 kg |
Product information for Allnet ANT-DUAL-PATCH-185:
ALLNET Antenna 2, 4/5 GHz Flat Patch Outdoor 4/7 dBi N-Type
Electromagnetical Properties:
Frequency range:
2400MHz - 2500MHz
5150MHz - 5850MHz
VSWR:
Nominal 1.5:1, Maximum 2:1
Nominal Impedance:
50 ohm
Gain:
4 dBi @ 2.45GHz
7 dBi @ 5.8GHz
Polarization:
Vertical or Horizontal
Azimuth Beamwidth (3dB):
Nominal 25° @ 2.45GHz
Nominal 15° @ 5.8GHz
Elevation Beamwidth (3dB):
Nominal 35° @ 2.45GHz
Nominal 25 ° @ 5.8GHz
Maximum Power:
10 W
Mechanical Properties:
Enclosure:
185mm x 185mm x 45mm
Connectors:
N female
IP Protection:
IP 67
Temperature range:
from -40 °C to 80 °C
Wind Speed:
160Km/h
Electromagnetical Properties:
Frequency range:
2400MHz - 2500MHz
5150MHz - 5850MHz
VSWR:
Nominal 1.5:1, Maximum 2:1
Nominal Impedance:
50 ohm
Gain:
4 dBi @ 2.45GHz
7 dBi @ 5.8GHz
Polarization:
Vertical or Horizontal
Azimuth Beamwidth (3dB):
Nominal 25° @ 2.45GHz
Nominal 15° @ 5.8GHz
Elevation Beamwidth (3dB):
Nominal 35° @ 2.45GHz
Nominal 25 ° @ 5.8GHz
Maximum Power:
10 W
Mechanical Properties:
Enclosure:
185mm x 185mm x 45mm
Connectors:
N female
IP Protection:
IP 67
Temperature range:
from -40 °C to 80 °C
Wind Speed:
160Km/h
Questions & answers
What is the delivery time of Allnet ANT-DUAL-PATCH-185 WLAN.eu antenna 2.4 / 5 GHz Flat Patch Outdoor 4/7 dBi N-Type?
The article Allnet ANT-DUAL-PATCH-185 WLAN.eu antenna 2.4 / 5 GHz Flat Patch Outdoor 4/7 dBi N-Type is currently in stock
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allnet ANT-DUAL-PATCH-185 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Allnet ANT-DUAL-PATCH-185 WLAN.eu antenna 2.4 / 5 GHz Flat Patch Outdoor 4/7 dBi N-Type always at the best possible price. We can give you a discount of 2% on Allnet ANT-DUAL-PATCH-185 WLAN.eu antenna 2.4 / 5 GHz Flat Patch Outdoor 4/7 dBi N-Type if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
