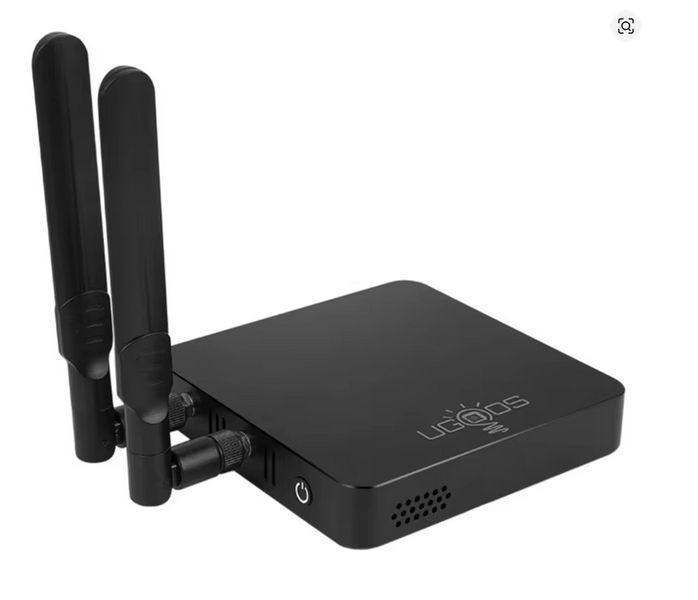

Allnet AM6-S922X
Android Media Player Digital Signage AM6- Hochleistungsplayer Amlogic S922 Wlan AC 2GB/16GB 4K content_copy

High Performance Multimedia Player with Android 9.0. Dieser Player ist bestens zur Wiedergabe von digitalem Content geeignet und ist auf dem aktuellen Stand der Technik. CPU: Amlogic S922X with 12nm 1.8G HZ,Quad core ARM Cortex-A73 - 1.7Ghz and dual core ARM Cortex-A53 CPU - 1.8Ghz GPU: ARM MaliTM-G52 MP6(6ppc) Operating system: Android 9.0 RAM: 2GB LPDDR4 (4Gb optional for OEM orders) Storage capacity(flash memory ): 16GB EMMC(8GB/32Gb/64Gb optional for OEM orders) WIFI: AP6398S 2.4G+5G the wireless module complies with IEEE 802.11 a/b/g/n/ac 2x2 MIMO standard and it can achieve up to a speed of 867Mbps with dual stream in 802.11n to connect the wireless LAN. Bluetooth: Bluetooth 5.0 Network: 1000M EthernetIntegrated IEEE 802.3 10/100/1000M Ethernet MAC with RGMII interface, Wake on Lan function supported. WOL Wake On Lan SPDIF YES CEC support RTC support HDR support AV decode: Audio:MP3,WAV,WMA,MPEG,PCM,AC3 etc. Video/Picture VP9 Profile-2 up to 4Kx2K@60fps H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps AVS2-P2 Profile up to 4Kx2K@60fps H.264 AVC HP@L5.1 up to 4Kx2K@30fps H.264 MVC up to 1080P@60fps MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) WMV/VC-1 SP/MP/AP up to 1080P@60fps AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) RealVideo 8/9/10 up to 1080P@60fps Multiple language and multiple format sub-title video support MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) Supports JPEG thumbnail, scaling, rotation and transition effects Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats Video/Picture Encoding Independent JPEG and H.265/H.264 encoder with configurable performance/bit-rate JPEG image encoding H.265/H.264 video encoding up to 1080P@60fps with low latency Video Output Built-in HDMI 2.1 transmitter including both controller and PHY with CEC, Dynamic HDR and HDCP 2.2, 4Kx2K@60 max resolution output o CVBS 480i/576i standard definition output o Supports all standard SD/HD/FHD video output formats: 480i/p, 576i/p, 720p, 1080i/p and 4Kx2K External storage: USB HOST 3.0*1 USB HOST 2.0*3 HDMI: HDMI 2.1 Type-A 4Kx2K@60fps max resolution AV output: AUX+CVBS 480i/576i Key output: Power Antenna: 2 Extra Antennas Port: TF Card x1 POWER INPUT: DC 12V/2A Dimension 11.6*11.6*2.8CM
