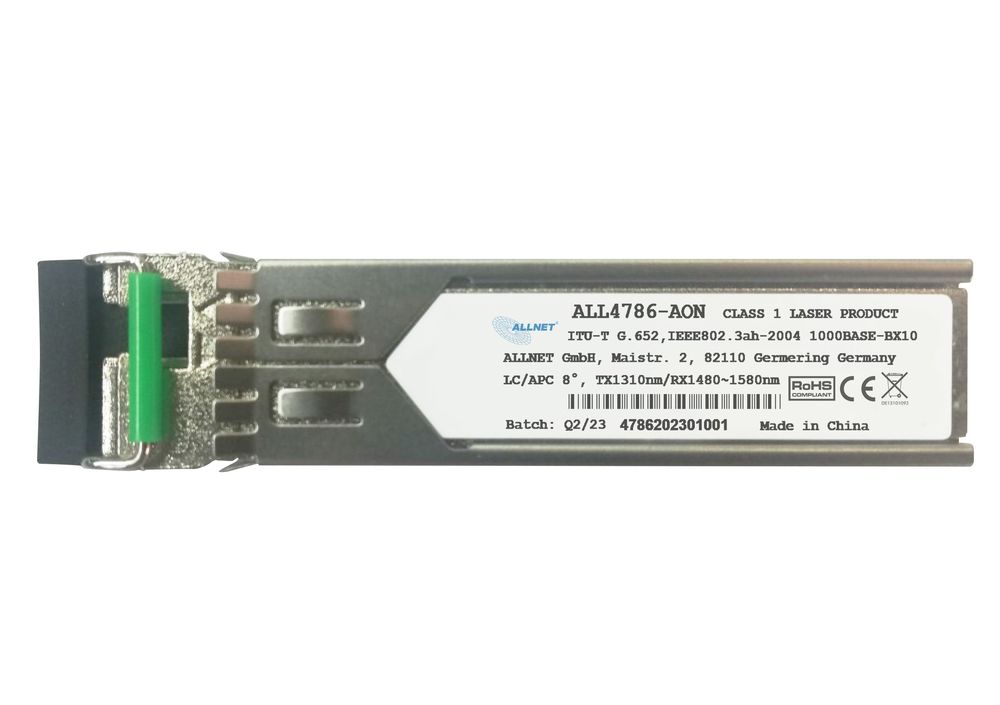

ALLNET ALL4786-AON
AVM FRITZ!BOX 55xx Fiber accessory AON replacement GBIC

Your rating:
Average rating
Rating for ALLNET ALL4786-AON AVM FRITZ!BOX 55xx Fiber accessory AON replacement GBIC
( 0 / 5 ) 0 ratings
ALLNET ALL4786-AONALLNET ALL4786-AON
ALLNET ALL4786-AON
This image may differ from the desired article.
57,82 EUR
( 68,81 EUR incl. VAT )
2025-10-22Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: 5 pieces
1x ALLNET ALL4786-AON AVM FRITZ!BOX 55xx Fiber accessory AON replacement GBIC
Lieske Part No.:2027002
Mfg Part No: ALL4786-AON
UPC/EAN: 4038816128027
Weight:0.03 kg

Product information for ALLNET ALL4786-AON:

AVM FRITZ!BOX 5530 Fiber zbh. AON replacement GBIC ALL4786-AON ATTENTION: Works in an ONT. This GBIC is only the fiber wave GBIC for the standard AON. A suitable ONT is still required with the corresponding modem ID. Highlights: ITU-T G.652 IEEE 802.3ah-2004 1000BASE-BX10 LC-APC 8° Wavelength: TX 1310 nm, RX 1480 to 1580 nm Full duplex transmission Transmitting power: -9 to -3 dBm Receiving power range: -3 to -23 dBm Range: 10 km Support for SFF-8472 Laser Class 1 Compatible with AVM Fritz Art. 2000 2940 Technical Details: 1.25Gbps BiDi LC/APC 20Km SFP Transceiver ALL4786-AON Product FeaturesUp to 1.25Gbps data links 20Km with 9/125µm SMF Tx1310nm/ Rx1490nm BiDi Simplex LC/APC Connector Hot-pluggable SFP footprint Single 3. 3V power supply Operating temperature: 0~70? DDMI SFF-8472 Compliance RoHS Applications
v 1.25Gbps 1000Base-LX PART NUMBER WAVE LENGTH TX/RX DISTANCE LASER TEMPERATURE ALL4786-AON 1310nm/1490nm 20km FP/PIN 0~70? Product Description The ALLNET ALL4786-AON SFP is a small form factor pluggable (SFP) transceiver compatible with multi-sourcing agreements (MSAs). It is suitable for single-mode fiber (SMF) communications in 1.25Gbps Ethernet and 1G/2G Fiber Channel.Regulatory Compliance ALLNET ALL4786-AON transceivers are Class 1 Laser Products comply with FDA regulations. Meet Class 1 eye safety requirements of EN 60825 and the electrical safety requirements of EN 60950.Absolute Maximum Ratings Parameter Symbol Min. Max. Unit Supply Voltage VCC -0.5 3.6 V Storage Temperature TS -40 85 °C Operating Case Temperature TC 0 70 ° C Recommended Operating Conditions Parameter Symbol Min. Typical Max. Unit Operating Case Temperature TC 0 70 °C Power Supply Voltage VCC 3.15 3.3 3.45 V Power Supply Current ICC 300 mA Data Rate 1.25 GBps Max Link Length on 9/125µm SMF Lmax 20 km Electrical Characteristics Parameter Symbol Min. Typical Max. Unit Transmitter Input Differential Impedance Zin 90 100 110 O Data Input Swing Differential Vin 500 2400 mV Tx-Dis Disable Vd 2.0 Vcc V Tx-Dis Enable Ven 0 0.8 V TX-Fault (Fault) 2.0 Vcc+0.3 V TX-Fault (Normal) 0 0.8 V Receiver Data Output Swing Differential Vout 370 2000 mV Rx-Los Fault Vlf 2.0 Vcc+0.3 V Rx-Los Normal Vln 0 0+0.8 V Optical Characteristics Parameter Symbol Min. Typical Max. Unit Transmitter Centre Wavelength ?c 1290 1310 1330 nm Spectral Width (RMS) s 4 nm Average Output Power Pout -9 -3 dBm Extinction Ratio ER 9 dB Optical Rise/Fall Time tr/tf 2 ns Receiver Centre Wavelength ?c 1470 1490 1610 nm Receiver Sensitivity PIN -23 dBm Receiver Overload PMAX -3 dBm LOS De-Assert LOSD -30 dBm LOS Assert LOSA -35 dBm LOS Hysteresis 0.5 4.5 dB Pin Descriptions Pin Symbol Description Ref. 1 VEET Transmitter Ground (Common with Receiver Ground) 6.1 2 TFAULT Transmitter Fault. Not supported. 3 TDIS Transmitter Disable. Laser output disabled on high or open. 6.2 4 MOD_DEF(2) Module Definition 2. Data line for Serial ID. 6.3 5 MOD_DEF(1) Module Definition 1. Clock line for Serial ID. 6.3 6 MOD_DEF(0) Module Definition 0. Grounded within the module. 6.3 7 Rate Select No connection required 8 LOS Loss of Signal indication. Logic 0 indicates normal
surgery. 6.4 9 VEER Receiver Ground (Common with Transmitter Ground) 6.1 10 VEER Receiver Ground (Common with Transmitter Ground) 6.1 11 VEER Receiver Ground (Common with Transmitter Ground) 6.1 12 RD- Receiver Inverted DATA out. AC Coupled. 13 RD+ Receiver Non-inverted DATA out. AC Coupled. 14 VEER Receiver Ground (Common with Transmitter Ground) 6.1 15 VCCR Receiver Power Supply 16 VCCT Transmitter Power Supply 17 VEET Transmitter Ground (Common with Receiver Ground) 6.1 18 TD+ Transmitter Non-Inverted DATA in. AC Coupled. 19 TD- Transmitter Inverted DATA in. AC Coupled. 20 VEET Transmitter Ground (Common with Receiver Ground) 6.1 Notes: Circuit ground is internally isolated from chassis ground. Laser output disabled on TDIS >2.0V or open, enabled on TDIS 0~95
Serial ID Defined by SFP MSA (96 bytes) 96~127
Vendor Specific (32 bytes) 128~255
Reserved (128 bytes) *Customized Area Address Description Hex Data ASCII A0 20~35 Vendor Name 41 4c 4c 4e 45 54 20 47 6d 62 48 ALLNET GmbH DDM THRESHOLD ALL4786-AON Low Alarm Low Warn High Warn High Alarm Temp -5? 0? 70? 75? Voltage 3V 3.1V 3.6V 3.7V Tx Bias 3mA 4mA 70mA 75mA Tx Power -13.5dBm -9.5dBm -1dBm 1dBm Rx Power -23dBm -19dBm -3dBm 1dBm Recommend Circuit Mechanical Specifications Recommend Circuit Mechanical Specifications
