ALLNET ALL4550_L4_1037 ALL4550 / PoE LED display 1037mm L4

ALLNET ALL4550 / PoE LED display 1037mm L4
Highlights: via network and Internet can be reached any
The web interface can be reached by a PC, notebook or with a web pad. (An integrated XML interface provides the data query from outside.)
Individually adapted to every need
The ALLNET ALL4550 PoE LED display shows a variety of text information such as RSS feeds, stock quotes or news. In addition, individual texts can be entered and displayed directly on the display. Located on the network sensors ALLNET building automation product range are integrated on, can also be addressed and the respective measured values ??are displayed on the ALL4550 display.

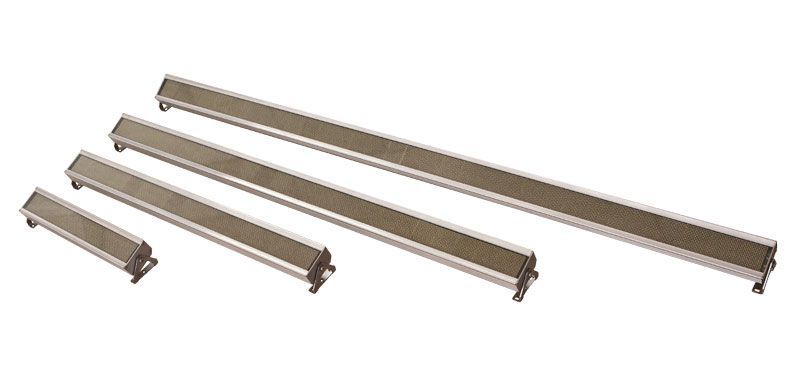

The ALL4550 LED display consists of power-saving LED modules and is available in lengths of 269mm, 525mm, 781mm and 1037mm available: Other lengths available on request.
The ALL4550 PoE LED display has a Linux-based open source operating system. Thus, it offers enough space for your own developments and adaptations of the software directly to the intended users of the application.
Specifications: Element
Specification
Network connection:
1x RJ45 10 / 100Mbps
PoE capability:
YES IEEE802.3af / at
Standards:
IEEE 802.3af Power over Ethernet
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
Display options:
-RSS Feeds
-Börsendaten
-individual texts programmable
Connections:
1x RJ45 input PoE
1x USB for optional options
1x alternative power supply input (hollow bushing) 12-28VDC
Power consumption:
Max. 25W at full load.
Housing:
Metal housing
Surroundings:
Temperature Operation: 0 ~ 40 ° C
Operating Humidity: 10% ~ 95% (non-condensing)
Labelling:
CE, RoHS
Dimensions:

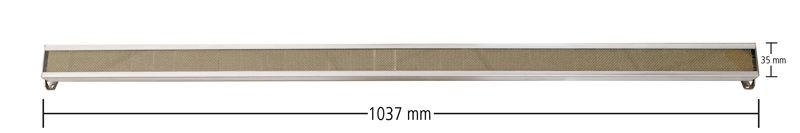

269/525/781/1037 x 50 x 35 mm (length x width x height)
Weight:
986g grams
Package Contents:

• ALLNET ALL4550
-Operating instructions

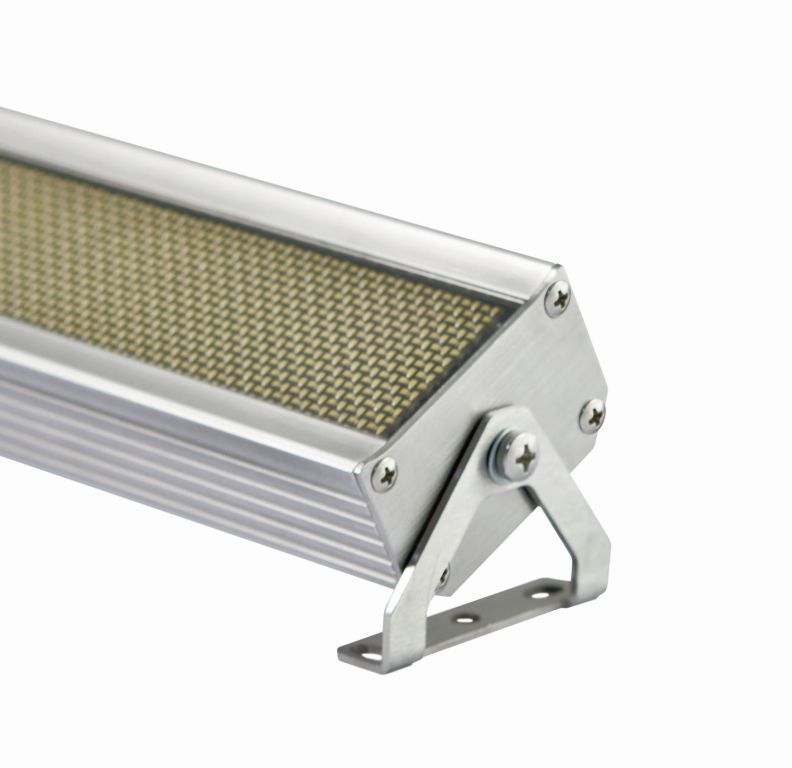

Mounting angles with screws
-USB Connection cable for future options
Energy efficiency class A +
kwh / 1000h: 25.00
Lumens: 2800
Watt: 25.0
Nominal life time: 0 hrs.
Switching cycles: 0
Opt. Ambient temperature: 0 ° C
