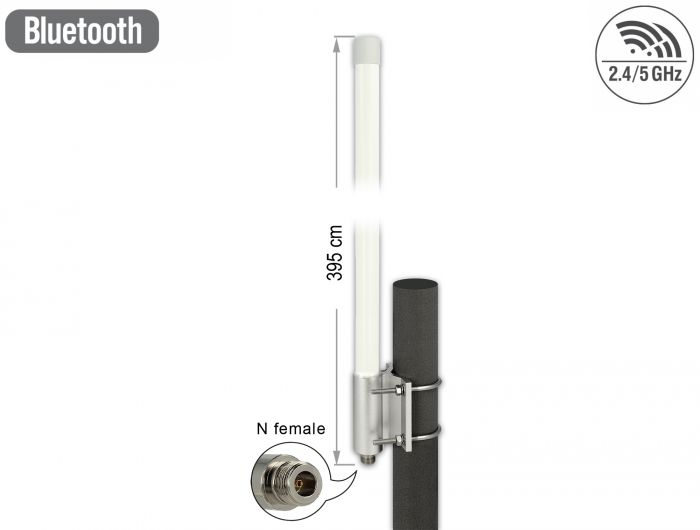

ALLNET Antenna 2.4/5 GHz 6.2~8dBi DualBand Omnidirectional Antenna ALL19025
|
99,97 EUR |
|
|
( 118,96 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 2113410 |
|---|---|
| Mfg Part No: | ALL19025 OMNI |
| UPC/EAN: | 4038816219480 |
| Weight: | 0.35 kg |
Product information for ALLNET ALL19025_OMNI:
Short description This waterproof WLAN antenna from Delock enables the use of various WLAN bands outdoors. Specification Connection: 1 x N socket waterproof Frequency range:
2400 - 2500 MHz

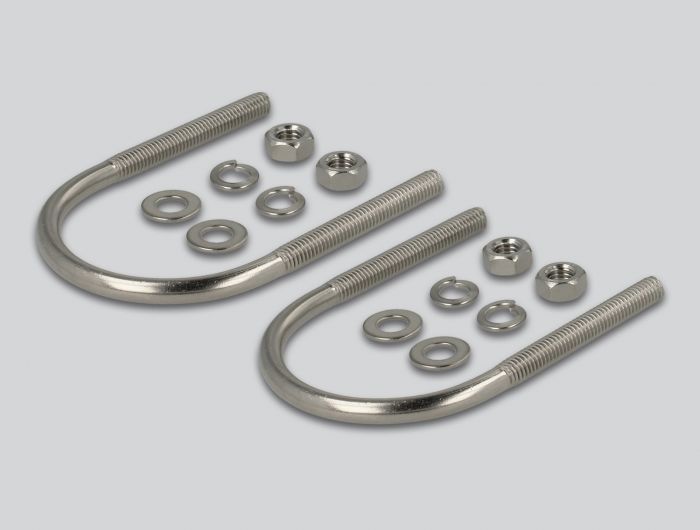

5150 - 5875 MHz Antenna gain: 6.2 - 8 dBi Impedance: 50 Ohm VSWR: 3, 0 - 5.0 Polarization: linear, vertical Operating temperature: -40 °C ~ 85 °C Housing material: GRP Length: approx. 395 mm Diameter: approx. 27 mm Weight: approx. 297 g System requirements Device with a free N connection Package contents Antenna Fastening material Packaging White Box Technical Details: General Mounting type pole
wall Suitable for indoor yes Suitable for outdoor yes Interface connector N socket Technical characteristics Frequency range 5150 MHz - 5875 MHz • 2400 MHz - 2500 MHz Antenna gain 6.2 - 8.0 dBi Beam width horizontal 360° Beam width vertical 17° Impedance 50 ?O Operating temperature -40 °C ~ 85 °C Polarization linear vertical Power handling max. 100 W VSWR 2.5 Physical characteristics Antenna type omnidirectional Housing color white Housing material GFRP Weight 297 g with mounting material Diameter 2.6 cm Length 395mm
2400 - 2500 MHz
5150 - 5875 MHz Antenna gain: 6.2 - 8 dBi Impedance: 50 Ohm VSWR: 3, 0 - 5.0 Polarization: linear, vertical Operating temperature: -40 °C ~ 85 °C Housing material: GRP Length: approx. 395 mm Diameter: approx. 27 mm Weight: approx. 297 g System requirements Device with a free N connection Package contents Antenna Fastening material Packaging White Box Technical Details: General Mounting type pole
wall Suitable for indoor yes Suitable for outdoor yes Interface connector N socket Technical characteristics Frequency range 5150 MHz - 5875 MHz • 2400 MHz - 2500 MHz Antenna gain 6.2 - 8.0 dBi Beam width horizontal 360° Beam width vertical 17° Impedance 50 ?O Operating temperature -40 °C ~ 85 °C Polarization linear vertical Power handling max. 100 W VSWR 2.5 Physical characteristics Antenna type omnidirectional Housing color white Housing material GFRP Weight 297 g with mounting material Diameter 2.6 cm Length 395mm
