ALLNET Wireless AP WIFI6? AX1200? 2x2? Outdoors? 1x GbE passive PoE 24VDC? IP55? Bridge/AP/WDS? ALL-WB100AXF-1200

ALLNET Wireless AX 1200Mbps IP55 Outdoor Bridge ALL-WB100AXF-1200 Highlights: Wi-Fi 6 technology for powerful and efficient Wi-Fi in outdoor areas Beamforming optimizes antenna signal, reception and reliability for clients 2x2 directional antennas to support up to 1200 Mbps in the 5 GHz range High transmit power of 26 dBm extends Wi-Fi to the yard or from building to building Integrated directional antenna with high gain (16 dBi) extends wireless networks up to 5 miles (point-to-point) IP55 certified weatherproof and dustproof housing Flexible operating modes: access point, station, WDS access point, WDS station, repeater GE PoE port supports flexible power options The ALLNET Wireless Bridge WiFi6 2x2 5GHz IP55 Outdoor Long Range CPE provides reliable and efficient outdoor Wi-Fi connectivity with Wi-Fi 6 technology and beamforming optimization. It features a high transmit power of 26 dBm and a built-in high gain directional antenna of 16 dBi for an extended Wi-Fi range of up to 5 miles (point-to-point). It is also weatherproof and offers flexible operating modes with easy installation over 100 meters.
Technical Details: Model Name ALL-WB100AXF-1200 Chipset Main Control Unit IPQ5018 Flash RF Power Setting Transmit Power (5GHz) Conductive 22dBm per-chain @MCS0 20Mhz Interfaces Ethernet 1x 1GbE RJ45 54VDC Proprietary PoE INPUT
1x 1GbE RJ45 LAN Out LED Indicator 4x single -color LED, 3x tri-color LED for signal Reset Button 1x Power Spec Power Source 48V Proprietary PoE (EPA5006GR)
Max. Power Consumption PoE: Max. 13W Antenna Antenna Specification Internal Patch Array 1x single-band @5Ghz, 14dBi (Port1: 40°x20°Port2: 40°x20°) 22dBm TX Power max. Antenna Beamwidth: Azimuth:40°, Elevation:20° Environmental Rain Mounting Options

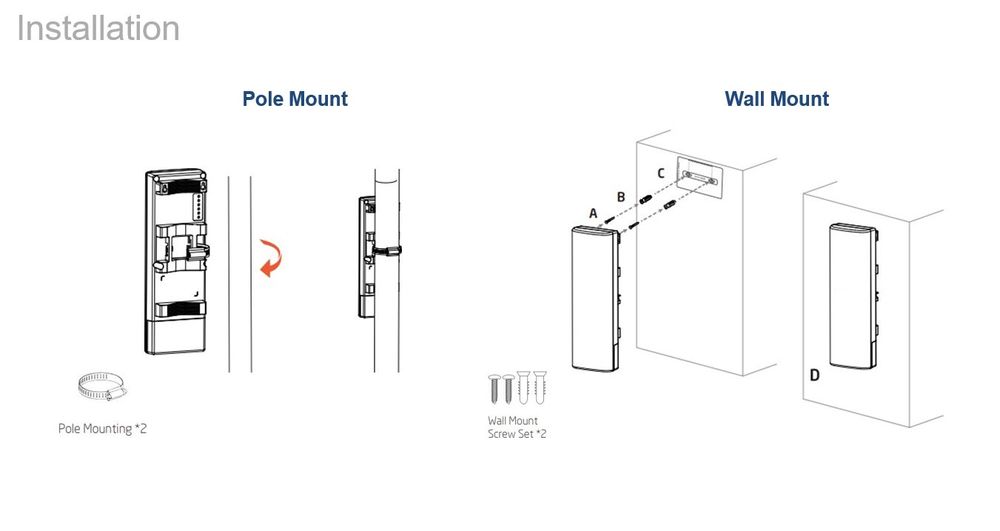

Dimension 260*84*55mm Wall Mount YES Pole Mount YES Certification Marks FCC
CE
