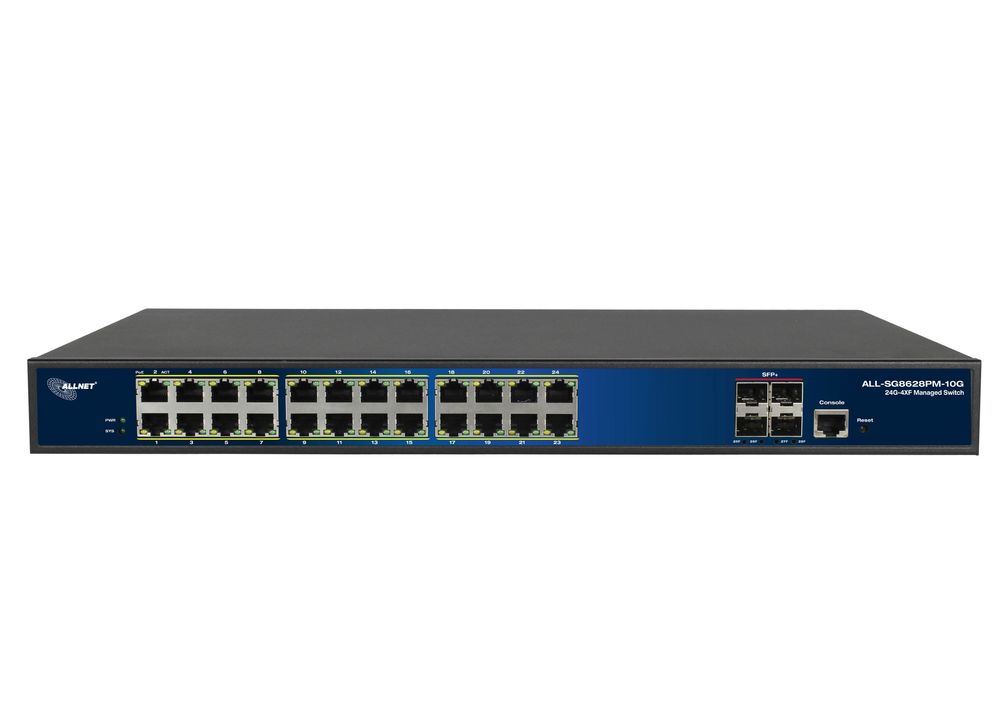

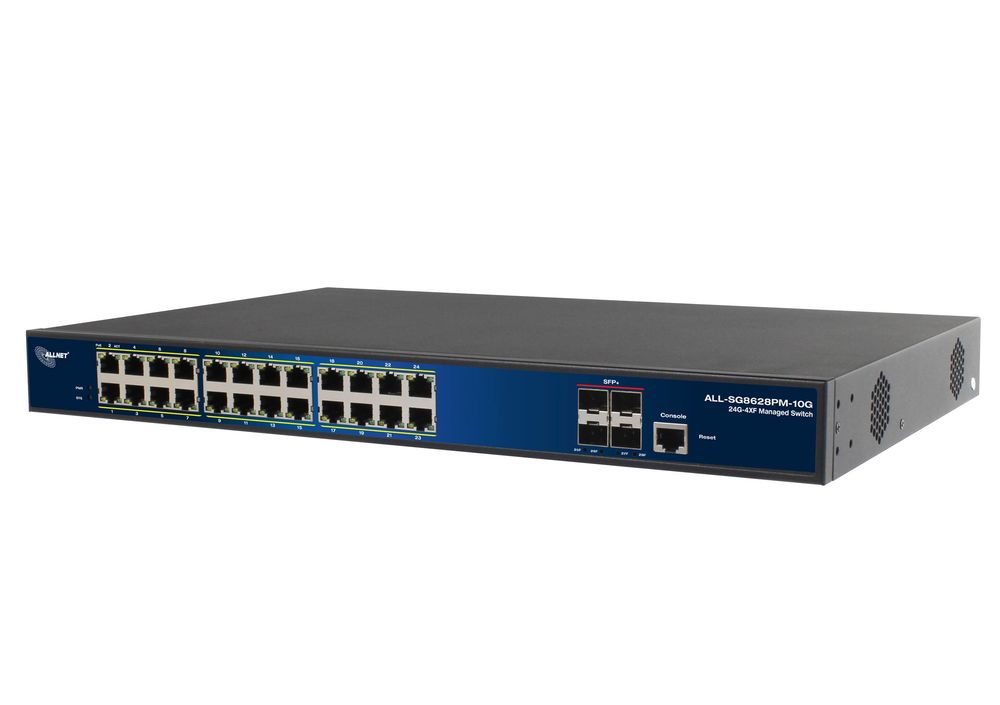

ALLNET Switch fully managed 24 Port Gigabit 370W / 24x PoE+ / 4x SFP+ 10G / 48,3 cm ( 19 inch ) / ALL-SG8628PM-10G

ALLNET Switch fully managed 24 port Gigabit 370W / 24x PoE+ / 4x SFP+ 10G / 48,3 cm ( 19 inch ) / ALL-SG8628PM-10G Highlights: 24 port Gigabit Layer2+ switch architecture (ports 1~24) 4 ports SFP+ 10G slots for optional GBICSs compatible ( Ports 25~28) Supports various PoE management functions, including PoE Shedule, PoE PD Alive, etc. Supports SFP DDM
Robust Layer 2 functions
The ALL-SG8628PM-10G can be programmed for advanced switch management functions , such as port aggregation, Q-in-Q VLAN, Spanning Tree Protocol, QoS, bandwidth control, ERPS, IGMP/MLD snooping, etc. The ALL-SG8628PM-10G enables the operation of a high-speed trunk that supports multiple Ports Combined.
Powerful Security Features
The ALL-SG8628PM-10G provides a comprehensive access control list (ACL) to enforce security at the network edge. It can be used to restrict network access by blocking packets based on source and destination IP addresses , TCP/UDP port numbers or defined typical network applications are rejected. The protection mechanism also includes 802.1x port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to protect user privacy.
Improved Security and Traffic Control
The ALL-SG8628PM-10G supports DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to protect against IP snooping attacks and drop ARP packets with invalid MAC address. The network administrator can now build highly secure corporate networks with significantly less time and effort than before.
Easy-to-Use, Secure Management
For efficient management, the ALL-SG8628PM-10G Managed Switch Series is equipped with console, web and SNMP management interfaces. With the management interface, the ALL-SG8628PM-10G offers a user-friendly, platform-independent management and configuration option. The ALL-SG8628PM-10G supports SNMP and can be managed via any management software based on the standard SNMP v1 or v2 protocol. At the same time, the ALL-SG8628PM-10G provides Cisco-like commands via Telnet or the console port, so the customer does not have to learn new commands for these switches. In addition, the ALL-SG8628PM-10G offers secure remote management by supporting SSH, SSL and SNMP v3 connections, where packet contents can be encrypted during each session.
Intelligent SFP DDM function
The ALL-SG8628PM-10G supports the SFP-DDM (Digital Diagnostic Monitor) function, which allows the network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers such as: B. optical output power, optical input power, temperature, laser bias voltage and transceiver supply voltage.
PoE scheduling function for energy saving
To protect the environment, the ALL-SG8628PM-10G Ethernet PoE switch can effectively control power supply in addition to its ability to deliver high wattage. The PoE scheduling feature helps to enable or disable PoE power for each PoE port during specific time intervals and is a powerful feature that helps SMBs or enterprises save electricity and money.
Scheduled PD Reboot
The ALL-SG8628PM-10G intelligent PoE switch allows each of the connected PoE IP cameras or PoE wireless access points to be rebooted at a specific time every week. This reduces the risk of the IP camera or AP crashing due to a buffer overflow.
Redundant ring with fast recovery for critical network applications
The ALL-SG8628PM-10G supports redundant ring technology and has strong, fast self-recovery capability to prevent interruptions and external interference. It integrates advanced ITU-T G.8032 ERPS technology, Spanning Tree Protocol (802.1s MSTP), and a redundant power system into the customer's industrial automation network to improve system reliability and uptime in harsh factory environments. In a certain simple ring network, the data connection recovery time can be up to 20 ms.
1588 Timing Protocol for Industrial Computer Networks
The ALL-SG8628PM-10G is ideal for telecommunications and Carrier Ethernet applications, supporting MEF service delivery and timing-over-packet solutions for IEEE 1588 and synchronous Ether
Specifications: Model ALL-SG8628PM -10G Copper Ports 24-10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports Fiber Ports 4-10G SFP interfaces PoE Ports 1~24-802.3af/802.3at PoE Injector Ports Console Ports 1 x RS-232 -to-RJ45 serial port (115200, 8, N, 1) Switch Architecture Store-and-Forward Switch Fabric 128Gbps/non-blocking Throughput 94.23Mpps @64 bytes Address Table 32K entries Share Data Buffer 32Mb Jumbo Frame 9600 Bytes SDRAM 2Gb Flash Memory 128Mb Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex Reset Button >2 sec.: Factory default and reset Power Supply 100~240V AC, 50/60Hz, 4A (max.) Power Consumption Max. 370 watts PoE standards IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE PoE Power Supply Type Per Port 52V DC, 300mA. Max. 15.4 watts (IEEE 802.3af)
Per port 52V DC, 600mA. Max. 30 watts (IEEE 802.3at) LED Indicators Power: Green
Solid on- power work normal, off- power disconnected
System: Green
Blink-work normally, solid on- soft work abnormal, fast Blink - soft upgra
de
PoE: Yellow
Solid on- PoE work normally, Off- PoE doesn't work, Blink - PoE overload
10/100/1000T RJ45 Interfaces (Port 1 to Port 48): 1000 LNK/ACT (Green)
Blink - port connected with data transmission Solid on- port connected
without data transmission
1G/10G SFP Interfaces (Port 25 to Port 28): Blue
Blink - port connected with data transmission Solid on-port connected
without data transmission EMC Surge Immunity:
4KV Per: IEC61000-4-5
ESD Protection:
ESD Level 4 Per: IEC61000-4-2
EFT Level 4 Per: IEC61000-4-4 Layer2 Functions Port configuration Auto-negotiation
Flow Control
Port Mirror: TX/RX/BOTH Many-to-1 monitor
CPU Mirror
Traffic statistics Link Aggregation Static link aggregation
LACP (Dynamic Trunk/Static Trunk)
Algorith based on Source/Destination MAC
Algorithm based on Source/Destination IP MAC Table Aging Time
Static MAC address
Dynamic MAC address management VLAN 4094 Active VLANs
4094 VID
802.1Q Tag VLAN
Port VLAN
Protocol VLAN
MAC VLAN
Voice VLAN
802.1ad Q-in-Q tunneling
Private VLAN (Protected port)
GARP/GVRP ACL 512ACLs
L2, L3 e L4
Time-based ACL
IP ACL
MAC ACL
MAC-IP ACL
User-Defined ACL
ICMPv6 Spanning tree 802.1D Spanning Tree Protocol (STP)
802.1w Rapid Spanning Tree Protocol (RSTP)
802.1s Multiple Spanning Tree Protocol (MSTP)
Loop Guard
Root Guard
TC-BPDU Guard
BPDU Guard
BPDU Filter Ring Protection < G.8032 ERPS Ring
Fast Ring Multicast 1024 groups
IGMP v1/v2 /v3 Snooping, Fast Leave
MLD Snooping
Multicast VLAN
IGMP filter
MVR
Multicast Routing QOS 8 mapping IDs to 8 level priority queues
CoS port-based
CoS 802.1p-based
CoS DSCP-based
Scheduling algorithms SP, WRR, SP+WRR
Storm Control (Broadcast, Multicast, Unknown Unicast)
Bandwidth control per port
SWRR, DWRR for Scheduling
Flow Redirect
Precedence
TOS
Rate Limiting(Ingress/Egress)
Stri Priority Security Features Port Security
MAC address filter
ARP Association (Manual, ARP scanning, DHCP snooping)
ARP Protection
AAA
DAI
DoS (Denial of Service)
Classification of packages based on: End.MAC, IP End, TCP / UDP Ports,
Protocol Type
802.1x Authentication (port-based e MAC-based)
TACACS/TACACS+ Authentication
RADIUS Authentication
DHCP Filter
Guest VLAN
SSLv2/SSLv3/TLSv1
SSHv1/SSHv2
Restriction of WEB access based on: IP Address, And. MAC and Port
Port Isolation
Loopback detection Management SNMP v1/v2c/v3 with Full Private MIBs
RMON 4 groups
WEB (HTTP/HTTPS)
CLI (Telnet, Console, SSHv1/v2)
Firmware upgrade via console/web/TFTP
Configuration Backup/Reload
Dual Firmware
LLDP
Configuration Export/Import
CDP Aware
OAM (IEEE802.3ah)
CFM (IEEE802.1ag)
sFlow
Telnet Synchronization, IEEE1588 Support IEEE1588v2 transparent clock Other Features DNS Client
DHCP Relay
DHCP Client
DHCP Snooping
DHCP Option 66
DHCP Option 67
DHCP Option 82
NTP/ SNTP Client
UPNP
UDLD PoE management Total PoE power budget control
Per port PoE function enable/disable
PoE admin-mode control
PoE port power feeding priority
Per PoE port power limitation
PD classification detection
PD alive check
PoE schedule
Soft-reboot PoE Non-stop Maintenance Cable Diagnostics
Ping
SFP DDM (Digital Diagnostics Monitoring)
Thermal protection
System log (Local and Remote)
Memory and CPU Monitoring
Tracert/ tracert 6 Layer 3 functions Static Routing IPv4 Unicast: Static Routing(Software Base)
IPv6 Unicast: Static Routing(Software Base) IPV6 IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
Ping6
Telnet(v6)
Http/Https
Interface IPV6
ACL IPV6 Dimension 440x290x44 .5 mm Weight 4.5 kg Working Temperature -10 C to 45 C Storage Temperature -20 C to 70 C MTBF 50,000hrs
