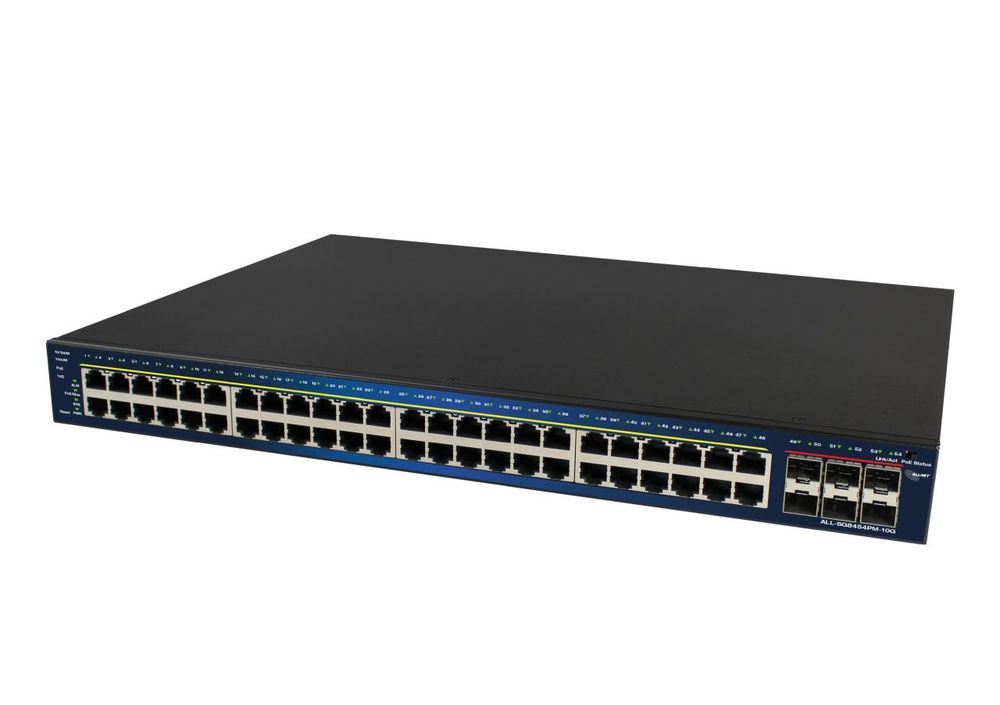

ALLNET Switch smart managed Layer2 54 Port • 48x 1 GbE • PoE Budget 800W • 48x PoE at • 6x SFP+ • 48,3 cm ( 19 inch ) • ALL-SG8454PM-10G Highlights: 48 Port Gigabit non-blocking switch architecture + 6 SFP+ Mini-GBIC slots = Total 52 ports Supports NWay protocol for speed (10/100/1000Mbps) and duplex mode (half/full) auto-detection Switch capacity up to 216Gbps 32K MAC address table 12K bytes jumbo frames 2x 480W power supply installed to offer max. 800W PoE power 4x smart fans installed Discover the ALLNET Smart Managed 48-Port Gigabit Switch - your ultimate solution for network performance improvement and PoE provision!
With the ALLNET ALL-SG8454PM-10G Switch you can achieve Reach new heights in network performance and management. This intelligent managed Gigabit switch is equipped with 48 ports for lightning-fast connections and features 6 SFP+ Mini-GBIC slots, giving you a total of 52 versatile connection options.
Supreme Speed and Flexibility:
Our switch architecture offers an impressive non-blocking Gigabit connection. With support for the NWay protocol, you can automatically detect speeds of 10/100/1000Mbps and the desired duplex mode (half or full duplex), allowing you to adjust effortlessly.
Impressive Capacity and Manageability:
This switch offers an impressive capacity of up to 216Gbps, giving you ample headroom for smooth data transfers and network activities. The built-in 32K MAC address table keeps your network running smoothly, and support for 12K-byte jumbo frames further improves efficiency.
PoE power and cooling:

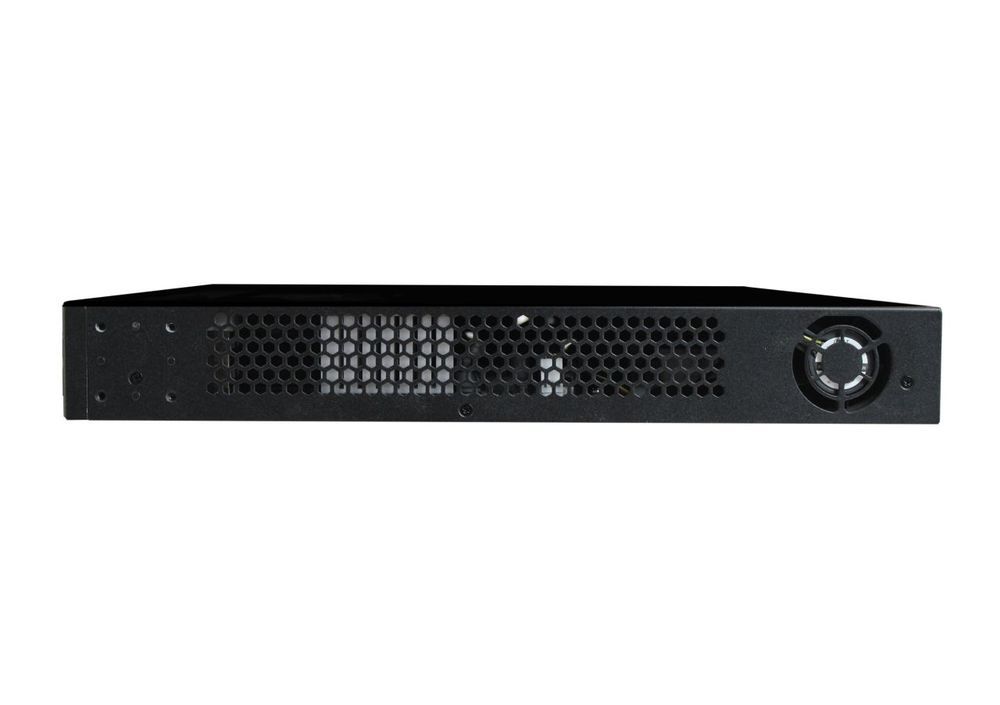

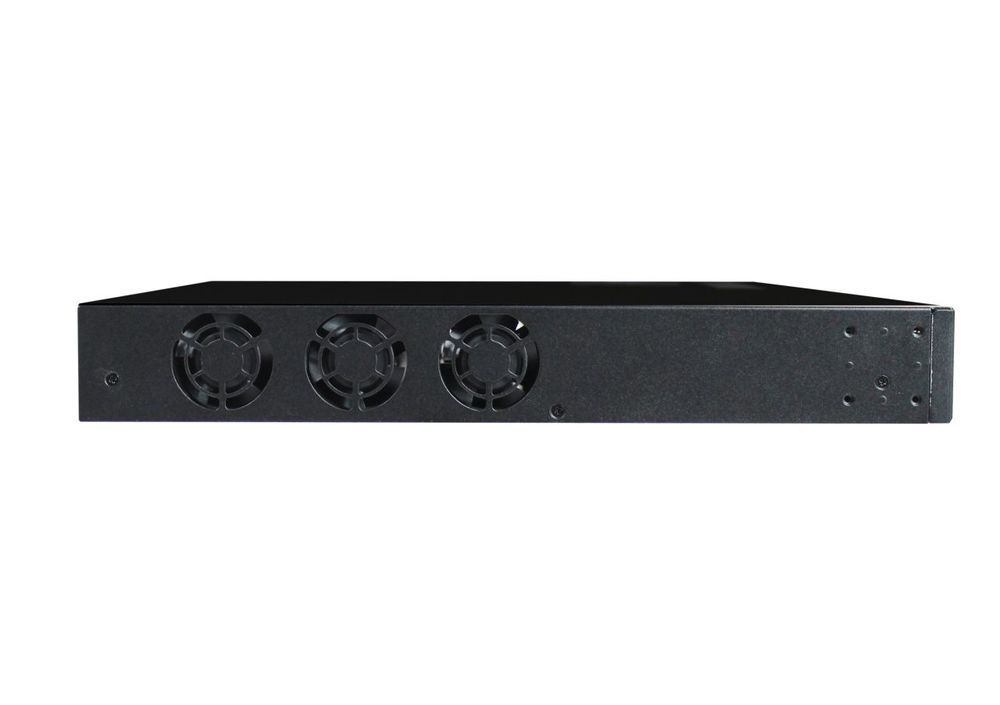

Thanks to the 2 built-in 480W power supplies, you can provide up to 800W PoE power to effortlessly power your PoE-enabled devices. In addition, the switch has 4 intelligent fans that ensure optimal cooling so that your network functions reliably even under load.
The ALLNET ALL-SG8454PM-10G is the perfect choice to take your network to the next level. Maximum performance, intelligent management and first-class PoE provisioning make this switch the ideal choice for companies that value top performance and flexibility.
Invest in the future of your network with the ALLNET Smart Managed 48-Port Gigabit Switch - your connection to modern network technology! Mechanical Drawings: Technical Details: Hardware Specs: Items Specifications Model No. ALL-SG8454PM-10G Key Components RTL9311+RTL8218Dx6 GD32E230G8U6TR + RTL8238Bx6 Flash IC: MXIC 32M Byte DDR: 2G bits I/O ports 48x GbE ports, RJ45
6 x 10G ports, SFP+
Reset Button: reset to default setting, re-start system

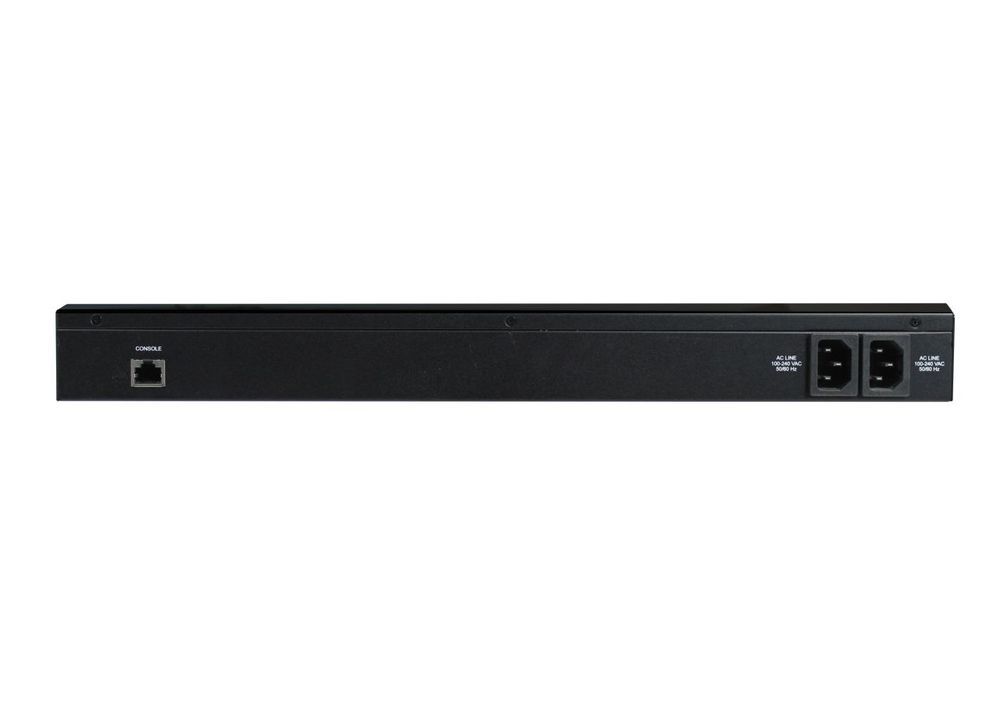

Console port by RJ45 type PoE ports Port# 1~ 48

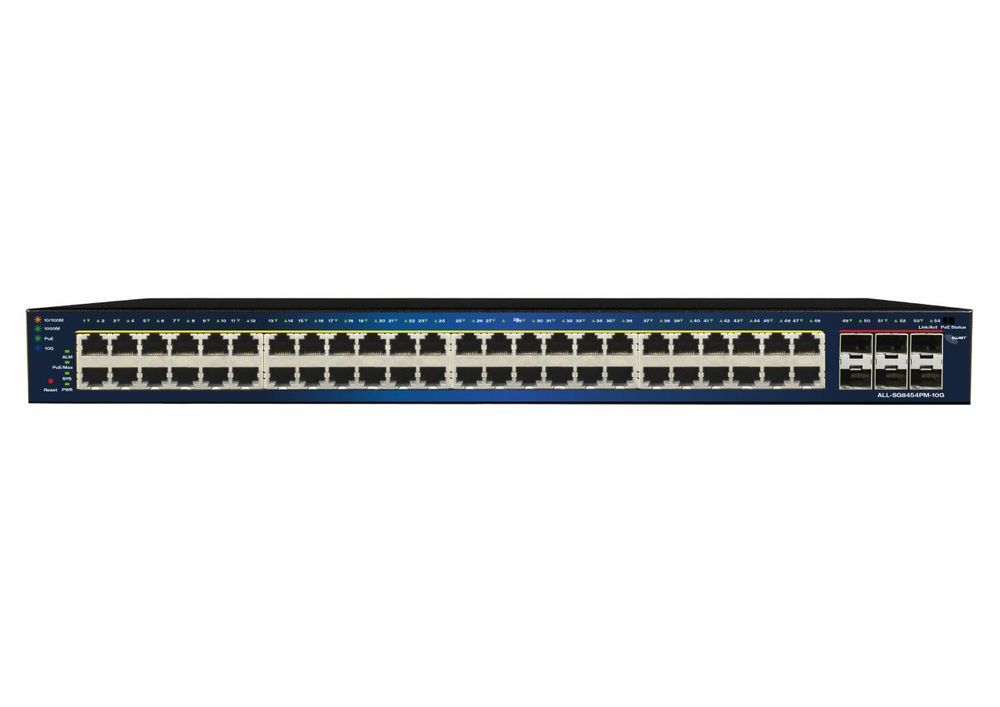

IEEE802.3at, IEEE802.3af LED Define PWR: Green LEDOff: power off or fail On: power on SYS: Green LEDOff: power off or fail On: system is ready Blinking: system booting up Alert: Red LEDOff: Switch is normal condition On: Alarm for system failure because of overheat, wrong voltage. PoE Max: Green LEDOff: No over PoE max power Alert On: Over PoE max power Alert 1-48 Port LED:
Link/ACT:Off: port disconnected or link fail Green on: 1000Mbps connected Amber on: 10/100Mbps connected Blinking: sending or receiving data 49-52 port LED:
SFP+:

• Off: disconnected or fail
• Blue: 10Gbps connected
• Green: 1000Mbps connected
• Blinking: data transmitting
PoE: Green LEDOff: PoE power output off Green on: PoE power output on Slide Switch: Swap Port LED
Follow the standard PSE pin-out standard of Alternative A (MAD-X) which is sending out power over number 1,2,3,6 pins of 8 wires of Ethernet CAT5 UTP cable Reset button Support reset to default configuration Dimension 441(W) x 330(D) x 45(H) mm FAN Design Fan*4 (Smart Fan) Temperature Operating: 0 ~ 50?
Storage: -40 ~ 70? Humidity Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 90% RH (non-condensing) Software Specs: Status System Information Logging Message Port Statistics Error Disabled Bandwidth Utilization Link Aggregation MAC Address Table 16K Network IP Address Static / Dynamic System Time SNTP / From Computer / Manual Time Port Port Setting State / Speed / Duplex / Flow Control Error Disabled Recovery Interval ACL / ARP Rate Limit / BPDU Guard / Broadcast Flood / DHCP Rate Limit / Port Security / Self Loop / Unicast Flood / Unknown Multicast Flood Link Aggregation Group Port Setting State / Speed / Flow Control LACP EEE Jumbo Frame 12K Byte PoE Global Setting Schedule Status Priority Setting Power Limit Power Show VLAN VLAN Create VLAN VLAN Configuration Membership Port Setting Voice VLAN Property Voice OUI Protocol VLAN Protocol Group Group Binding MAC VLAN MAC Group Group Binding Surveillance VLAN Property Surveillance OUI GVRP Property Membership Statistics MAC Address Table Dynamic Address Aging Time Static Address Filtering Address Spanning Tree Property State / Operation Mode / Path Cost / BPDU Handling Operation Mode:STP/RSTP/MSTP Port Setting MST Instance MST Port Setting Statistics Discovery LLDP Property Port Setting MED Network Policy MED Port Setting Packet View Local Information Neighbor Statistics Multicast General Property Unknown Multicast Action / Multicast Forward Method Group Address Router Port Forward All Table Throttling Filtering Profile Filtering Binding IGMP Snooping Property State / Version / Report Suppression Querier Statistics MLD Snooping Property State / Version / Report Suppression Statistics MVR Property State / VLAN / Mode / Group Start / Group Count / Query Time Port Setting Group Address Security RADIUS TACACS+ AAA Method List Login Authentication Console / Telnet / SSH / HTTP / HTTPS Management Access Management VLAN Management Service Telnet / SSH / HTTP / HTTPS / SNMP / Session Timeout Management ACL Management ACE Authentication Manager Property Port Setting Sessions Port Security Protected Port Storm Control State / Broadcast / Unknown Multicast / Unknown Unicast / Action (Drop / Shutdown) DoS Property Port Setting Dynamic ARP Inspection Property Statistics DHCP Snooping Property Statistics Option82 Property Option82 Circuit ID IP Source Guard Port Setting IMPV Binding Save Database ACL MAC ACL MAC ACE IPv4 ACL IPv4 ACE IPv6 ACL IPv6 ACE ACL Binding QoS General Property CoS / DSCP / CoS-DSCP / IP Precedence Queue Scheduling Strict Priority / WRR CoS Mapping DSCP Mapping IP Precedence Mapping Rate Limit Ingress / Egress Port Egress Queue Diagnostics Logging Property Console / RAM / Flash Remote Server Mirroring Ping Traceroute Copper Test Fiber Module UDLD Property Message Time Neighbor Management User Account Firmware Upgrade / Backup Action (Upgrade / Backup) / Method (TFTP / HTTP) Active Image Active Image / Backup Image Configuration Upgrade / Backup Action (Upgrade / Backup) / Method (TFTP / HTTP) Save Configuration Source File / Destination File, Restore Factory Default SNMP View Group Community User Engine ID Trap Event Authentication Failure / Link UP_Down / Cold Start / Warm Start Notification RMON Statistics History Event Alert
