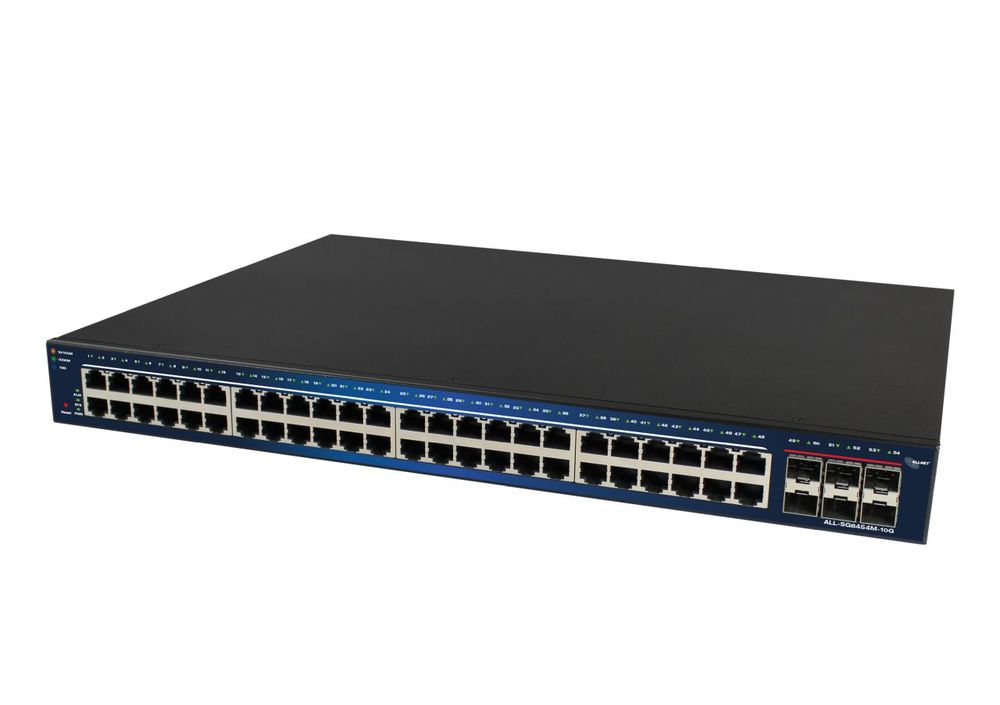

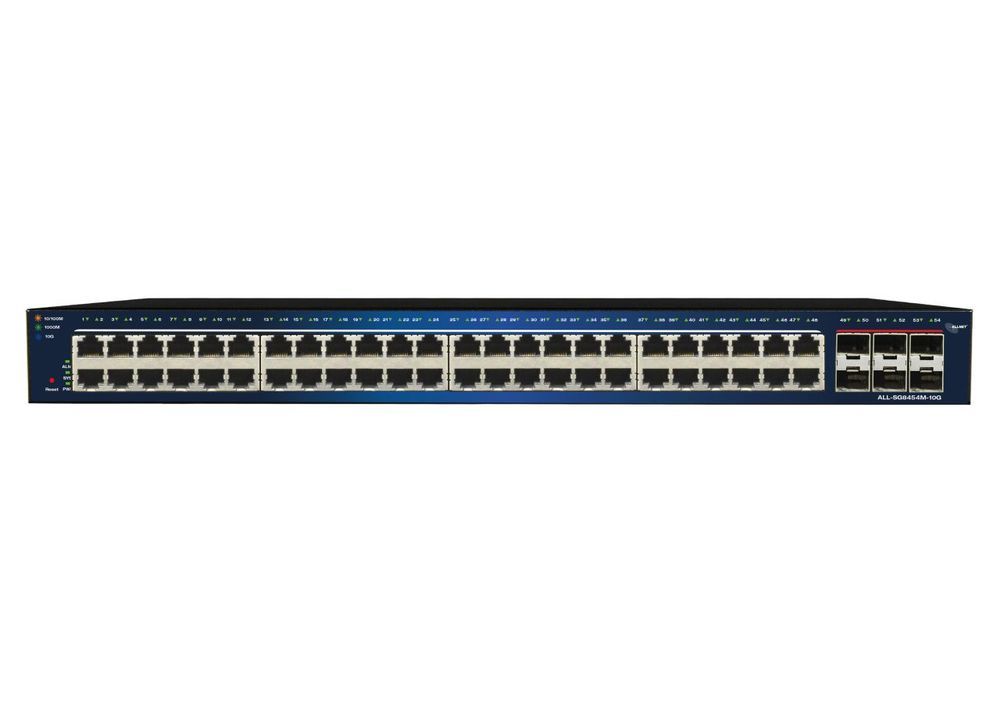

ALLNET Switch smart managed Layer2 54 Port? 48x ports 1 GbE? 6x SFP+? 48,3 cm ( 19 inch )? ALL-SG8454M-10G content_copy

ALLNET Switch smart managed Layer2 54 Port • 48x Port 1 GbE • 6x SFP+ • 48,3 cm ( 19 inch )• ALL-SG8454M-10G Highlights: 48 port Gigabit non-blocking switch architecture + 6 SFP+ mini GBIC slots = 52 ports in total Supports NWay protocol to automatically detect speed (10/100/1000Mbps) and duplex mode (half/full) Switch capacity up to 176Gbps 32K MAC address table Packet buffer size: 16Mbit 12K bytes jumbo frames Forwarding rate: 129.3Mpps (64-byte packet size) Supports Web UI for configuration Supports console port with CLI command Supports HW monitor alarm Are you looking for a powerful network switch that meets all your needs? Our 48-port Gigabit switch with 6 additional SFP+ Mini-GBIC slots is the perfect solution for you. Here are some of the impressive specifications this device has to offer:
Maximum Connectivity: With a total of 52 ports, including 48 Gigabit Ethernet ports and 6 SFP+ Mini-GBIC slots, you are well equipped to manage your network efficiently.
Intelligent Speed and Duplex Mode: The switch supports the NWay protocol, which enables automatic speed and duplex mode (10/100/1000Mbps, half/full) detection, so you don't have to worry about manual configuration.
High Capacity: With an impressive switch capacity of up to 176 Gbps, this switch can handle even the most demanding applications and data transfers.
Large MAC Address Table: With a 32K MAC address table, this switch offers ample space to manage your network devices.
Jumbo frames: 12K byte jumbo frames are available for transferring large amounts of data, increasing the efficiency of your network performance.
Easy configuration: Thanks to the support of a web interface (Web UI), you can conveniently configure your switch and adapt it to your needs.
Management flexibility: The switch supports a console port with CLI commands, giving advanced users full control over the configuration.
Reliable monitoring: With the support of HW Monitor alarms, you are immediately informed of any hardware problems to minimize downtime.
Rely on our network technology to make your communications seamless and efficient. This switch offers you the performance and reliability you need for your network. Experience the future of connectivity with our 48-port Gigabit switch.Technical Drawings: Technical Details: Hardware Specs: Items Specifications Model No. ALL-SG8454M-10G Key Components RTL9311M+RTL8218Dx6 Flash IC: MXIC 64 Byte DDR: 4G bits I/O ports 48x GbE ports, RJ45
6 x 10G ports, SFP+
Reset Button: reset to default setting, re-start system

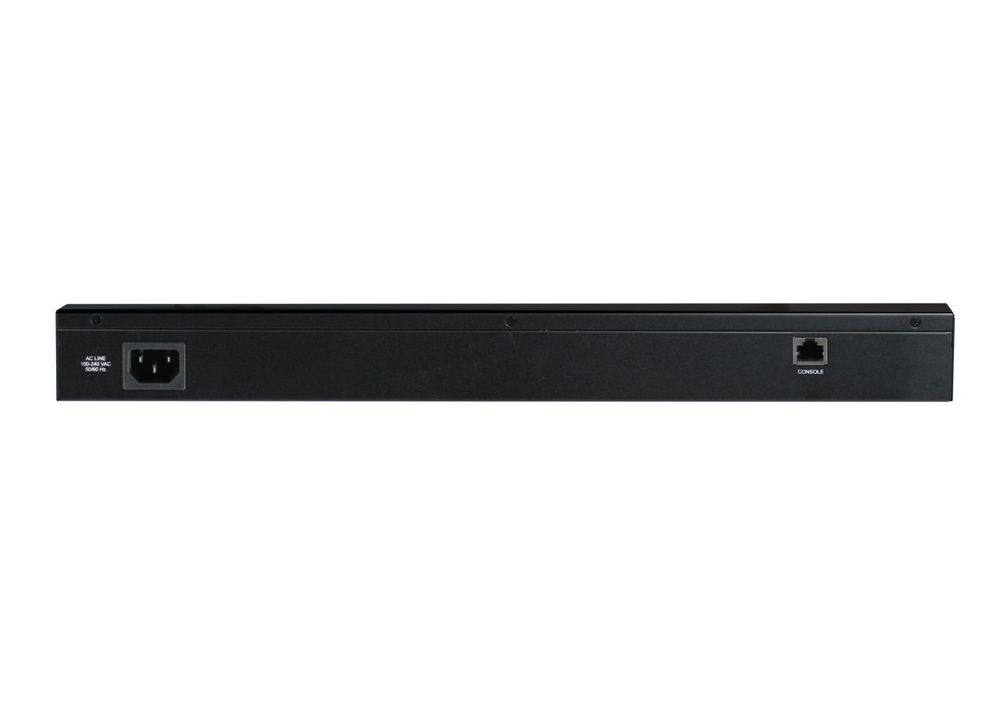

Console port by RJ45 type LED Define PWR: Green LEDOff: power off or fail On: power on SYS: Green LEDOff: power off or fail On: system is ready Blinking: system booting up Alert: Red LEDOff: Switch is normal condition On: Alarm for system failure because of overheat, wrong voltage. 1-48 Port LED:
Link/ACT:Off: port disconnected or link fail Green on: 1000Mbps connected Amber on: 10/100Mbps connected Blinking: sending or receiving data 49-52 port LED:
SFP+:

• Off: disconnected or fail
• Blue: 10Gbps connected
• Green: 1000Mbps connected
• Blinking: data transmitting HW feature IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3ae SFP+
IEEE802.3az EEE
MAC address Table: 32K
Packet buffer size: 16Mbit
Jumbo Frame: 12K bytes
176Gbps switching capacity
Forwarding rate: 129.3Mpps (64-byte package size) Data Transfer Rate Ethernet:10 Mbps(half duplex),20 Mbps(full duplex)
Fast Ethernet:100 Mbps(half duplex),200 Mbps(full duplex)
Giga Ethernet:2000 Mbps(full duplex)
10 Gigabit Ethernet:20 Gbps(full duplex) System Monitor HW Monitor IC: ADT7463 Voltage Monitor Input Voltage: 12V (+/-7% Alarm Threshold) I/O Voltage: 3.3V (+/- 5% Alarm Threshold) DDR Voltage: 1.5V (+/- 5% Alarm Threshold) PHY Voltage: 1.1V (+/- 5% Alarm Threshold) MAC Voltage:1.0V (+/- 5% Alarm Threshold) Temperature Monitor BOARD: 0~80°C MAC: 0~85°C PHY: 0~85°C Power Input Internal power supply
Input: 90~264VAC/47~63Hz

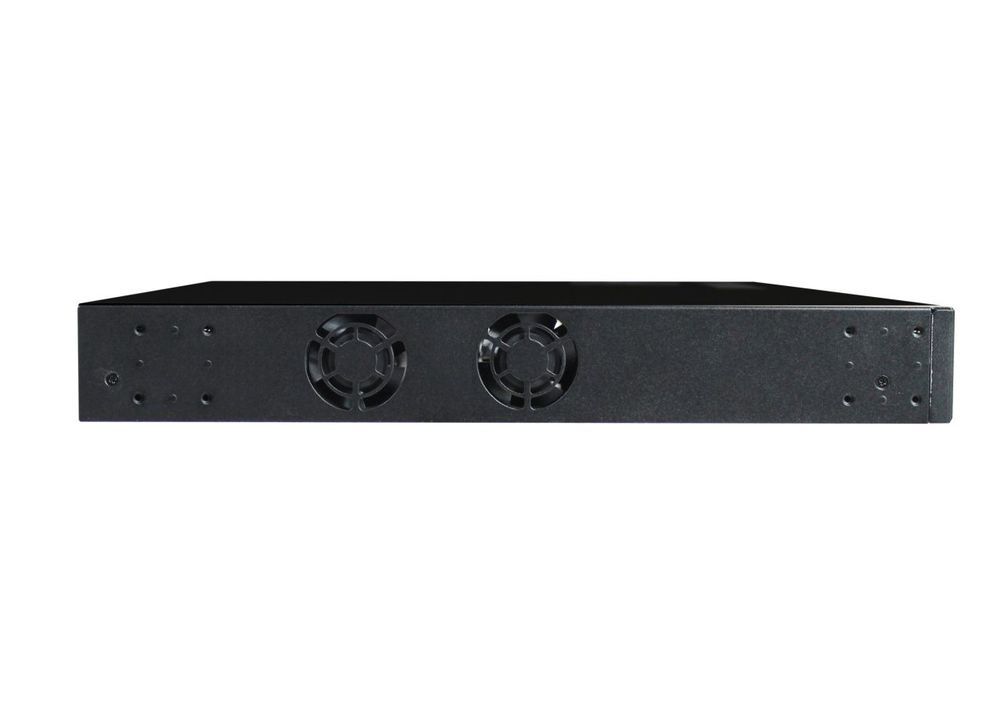

Output: 12V/6A Reset button Support reset to default configuration Dimension 441(W) x 270(D) x 45(H) mm FAN Design Reserve One Fan Temperature Operating: 0 ~ 40?
Storage: -40 ~ 70? Humidity Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 90% RH (non-condensing) Software Specs: Status System Information Logging Message Port Statistics Error Disabled Bandwidth Utilization Link Aggregation MAC Address Table 16K Network IP Address Static / Dynamic System Time SNTP / From Computer / Manual Time Port Port Setting State / Speed / Duplex / Flow Control Error Disabled Recovery Interval ACL / ARP Rate Limit / BPDU Guard / Broadcast Flood / DHCP Rate Limit / Port Security / Self Loop / Unicast Flood / Unknown Multicast Flood Link Aggregation Group Port Setting State / Speed / Flow Control LACP EEE Jumbo Frame 12K Byte PoE Global Setting Schedule Status Priority Setting Power Limit Power Show VLAN VLAN Create VLAN VLAN Configuration Membership Port Setting Voice VLAN Property Voice OUI Protocol VLAN Protocol Group Group Binding MAC VLAN MAC Group Group Binding Surveillance VLAN Property Surveillance OUI GVRP Property Membership Statistics MAC Address Table Dynamic Address Aging Time Static Address Filtering Address Spanning Tree Property State / Operation Mode / Path Cost / BPDU Handling Operation Mode:STP/RSTP/MSTP Port Setting MST Instance MST Port Setting Statistics Discovery LLDP Property Port Setting MED Network Policy MED Port Setting Packet View Local Information Neighbor Statistics Multicast General Property Unknown Multicast Action / Multicast Forward Method Group Address Router Port Forward All Table Throttling Filtering Profile Filtering Binding IGMP Snooping Property State / Version / Report Suppression Querier Statistics MLD Snooping Property State / Version / Report Suppression Statistics MVR Property State / VLAN / Mode / Group Start / Group Count / Query Time Port Setting Group Address Security RADIUS TACACS+ AAA Method List Login Authentication Console / Telnet / SSH / HTTP / HTTPS Management Access Management VLAN Management Service Telnet / SSH / HTTP / HTTPS / SNMP / Session Timeout Management ACL Management ACE Authentication Manager Property Port Setting Sessions Port Security Protected Port Storm Control State / Broadcast / Unknown Multicast / Unknown Unicast / Action (Drop / Shutdown) DoS Property Port Setting Dynamic ARP Inspection Property Statistics DHCP Snooping Property Statistics Option82 Property Option82 Circuit ID IP Source Guard Port Setting IMPV Binding Save Database ACL MAC ACL MAC ACE IPv4 ACL IPv4 ACE IPv6 ACL IPv6 ACE ACL Binding QoS General Property CoS / DSCP / CoS-DSCP / IP Precedence Queue Scheduling Strict Priority / WRR CoS Mapping DSCP Mapping IP Precedence Mapping Rate Limit Ingress / Egress Port Egress Queue Diagnostics Logging Property Console / RAM / Flash Remote Server Mirroring Ping Traceroute Copper Test Fiber Module UDLD Property Message Time Neighbor Management User Account Firmware Upgrade / Backup Action (Upgrade / Backup) / Method (TFTP / HTTP) Active Image Active Image / Backup Image Configuration Upgrade / Backup Action (Upgrade / Backup) / Method (TFTP / HTTP) Save Configuration Source File / Destination File, Restore Factory Default SNMP View Group Community User Engine ID Trap Event Authentication Failure / Link UP_Down / Cold Start / Warm Start Notification RMON Statistics History Event Alert
