ALLNET Switch smart managed Layer2 24 Port? PoE budget 370W? 24x PoE at ? 4x SFP? 48,3 cm ( 19 inch ) ? ALL-SG8428v2PM content_copy

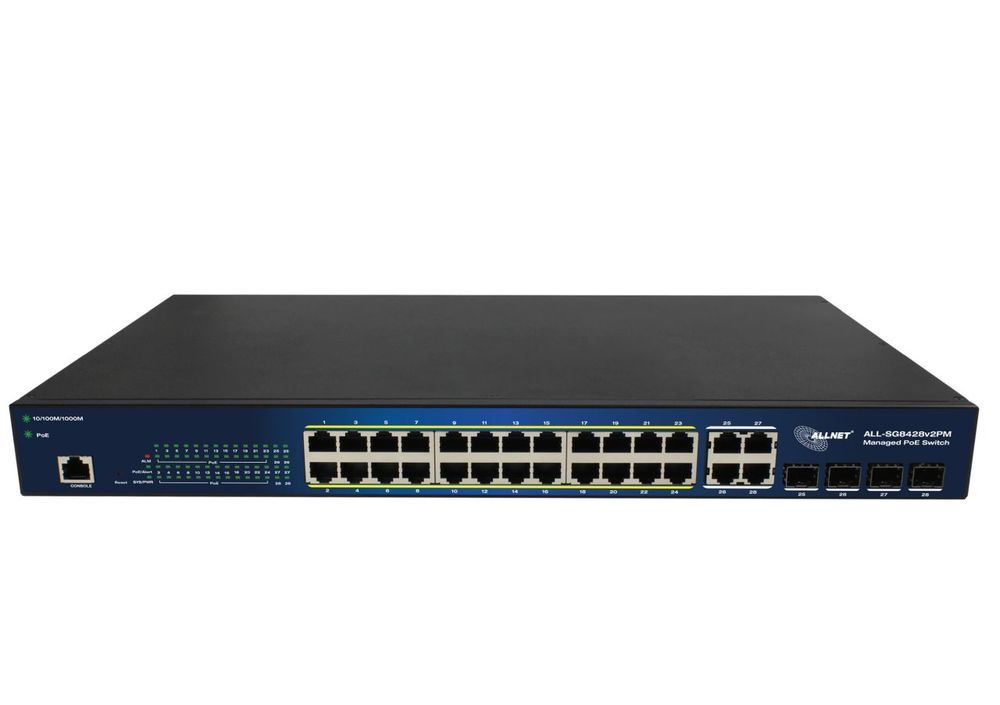

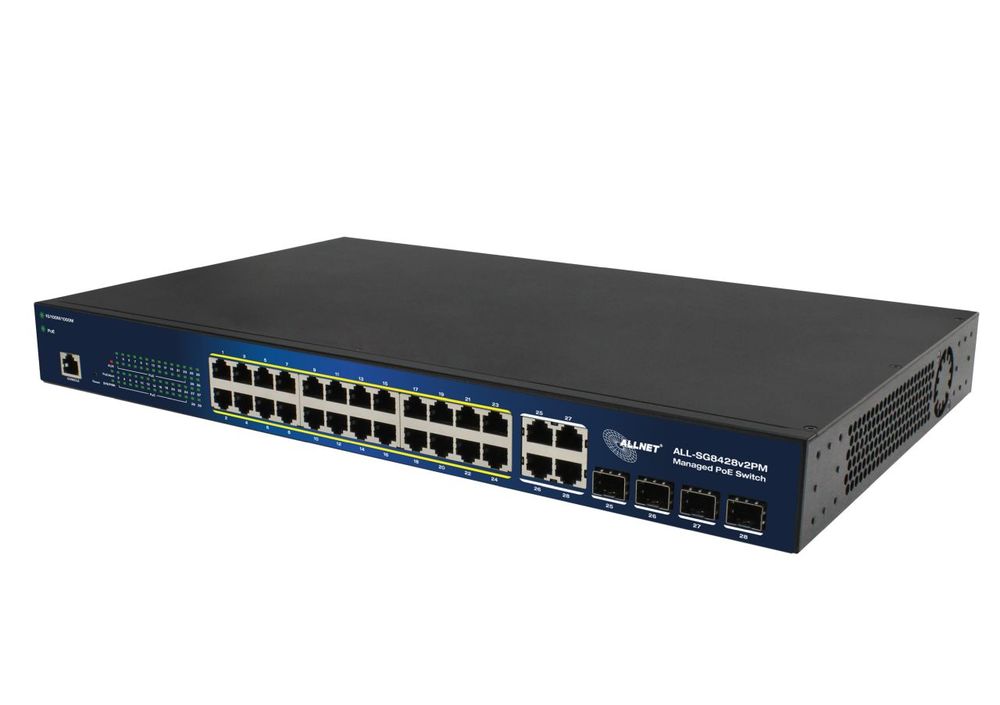

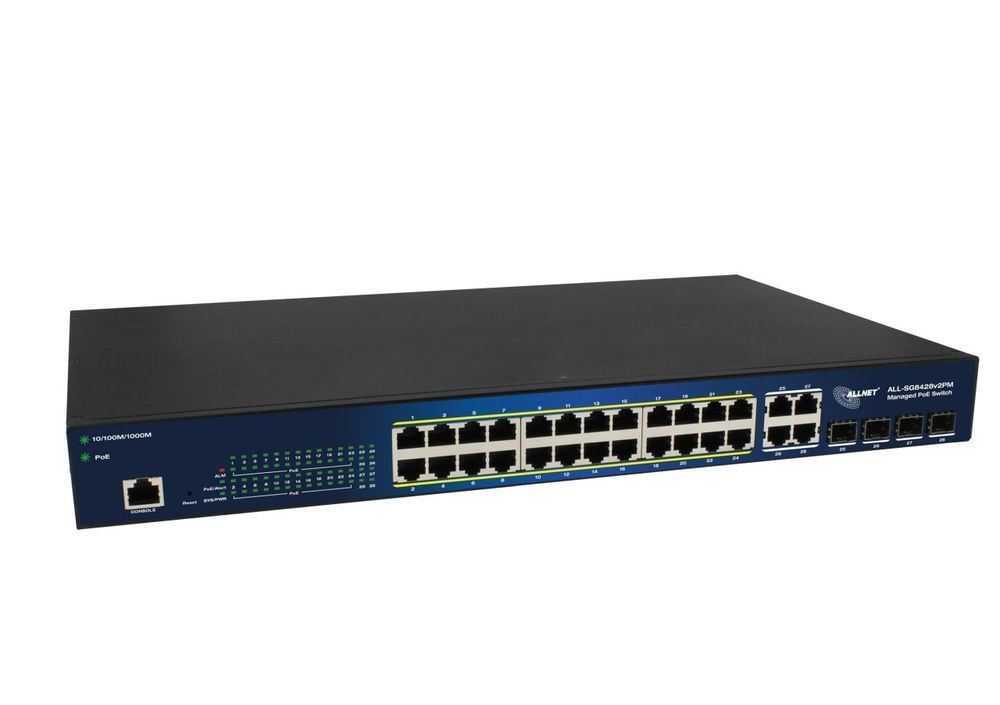

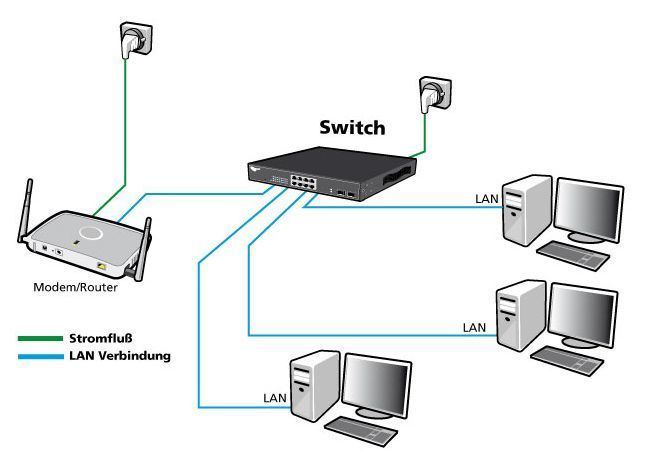

ALLNET Switch smart managed Layer2 24 Port • PoE Budget 370W • 24x PoE at • 4x SFP • 48,3 cm ( 19 inch ) • ALL-SG8428v2PM Highlights:24 port Gigabit non-blocking switch architecture Supports NWay Protocol (10/100/1000Mbps) and duplex mode (half/ full) Auto detection support back-pressure (half duplex), flow control (IEEE 802.3x and IEEE 802.3az Energy Efficient Ethernet VLAN: Port based / Tagged based Link Aggregation (IEEE802.3ad LACP) IGMP Snooping (v1/v2) QoS ( Port Based, Flow, 802.1p, IP-TOS, IP DSCP) Storm control (Broadcast, Multicast, Unicast) 370W PoE Budget supports PoE IEEE802.3af/at PSE devices The new ALLNET ALL-SG8428v2PM switch provides an optimal basis for small and medium workgroups with high network and data volumes and enables fast data transmission in the network. With a total of 24 backwards compatible gigabit ports, the connected computers and servers are connected to each other reliably and powerfully. The ALL-SG8428v2PM can achieve a maximum PoE budget of Pass on 370W to the end devices. The 24 Gigabit PoE ports support the PoE standard IEEE802.3af and the IEEE802.3at standard. There are 2 fans installed on the side of the switch.Mechanical Drawings: Technical details: Items Specifications Model No. ALL-SG8428v2PM Key Components RTL8382M+RTL8218Dx2+RTL8214FC
Flash IC:16MB
DDR: 1Gb
IP808ARx3 PSE controller I/O ports 24x GbE ports, RJ45
4 x port GbE SFP/RJ45 combo
Reset Button: reset to default setting, re-start system PoE ports Port# 1~ 24
IEEE802.3at, IEEE802.3af LED Define PWR/SYS: Green LEDOff: power off or fail On: power on Blinking: system booting up PoE Alert: Green LEDOff: No over PoE Max power Alert On: Over PoE Max power Alert ALM: Red LEDOff: Switch is normal condition On: Alarm for system failure because of overheat, wrong voltage, Fan failed. Port LED:
RJ45:Off: port disconnected or link fail Green on: 10/100/1000Mbps connected Blinking: sending or receiving data PoE:Off: PoE power output off Green on: PoE power output on SFP:

• Off: disconnected or fail
• Green: 100/1000Mbps connected
• Blinking: data transmitting HW feature IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3az EEE
IEEE802.3x
IEEE802.3z
IEEE802.3at, IEEE802.3af
MAC address Table: 8K
Packet buffer size: 4.1M
Jumbo Frame: 10K bytes
56Gbps switching capacity
Forwarding rate: 41.66Mpps (64-byte package size) Data Transfer Rate Ethernet:10 Mbps (half duplex),20 Mbps (full duplex)
Fast Ethernet :100 Mbps (half duplex),200 Mbps (full duplex)
Giga Ethernet:2000 Mbps (full duplex) PoE power pin-out Alternative A (Pin 1.2/3.6) PoE Output power capacity Maximum output :30W per each portCompliant with IEEE802.3af/at standard, Following IEEE802.3at/ at to support PoE or PoE+ Automatically discover the connection of PD device and immediately sends power to it Auto disable port if the port current is over 700mA or short happens Priority default setting is lower port NO. has high priority The maximum power used by power devices is defined by the following classification. When Port works in Auto Mode, the output port power limit will be associated with PD classification Value. Follow the standard PSE pin-out standard of Alternative A (MAD-X) which is sending out power over number 1,2,3,6 pins of 8 wires of Ethernet CAT5 UTP cable System Monitor HW Monitor IC: ADT7476 Voltage Monitor Input Voltage : 12V (+/-7% Alarm Threshold) I/O Voltage: 3.3V (+/- 5% Alarm Threshold) DDR Voltage: 1.5V (+/- 5% Alarm Threshold) PHY Voltage: 1.1V (+/- 5% Alarm Threshold) MAC Voltage:1.0V (+/- 5% Alarm Threshold) Temperature Monitor BOARD: 0~80°C MAC: 0~85°C PHY: 0~85°C Power Input Internal power supply

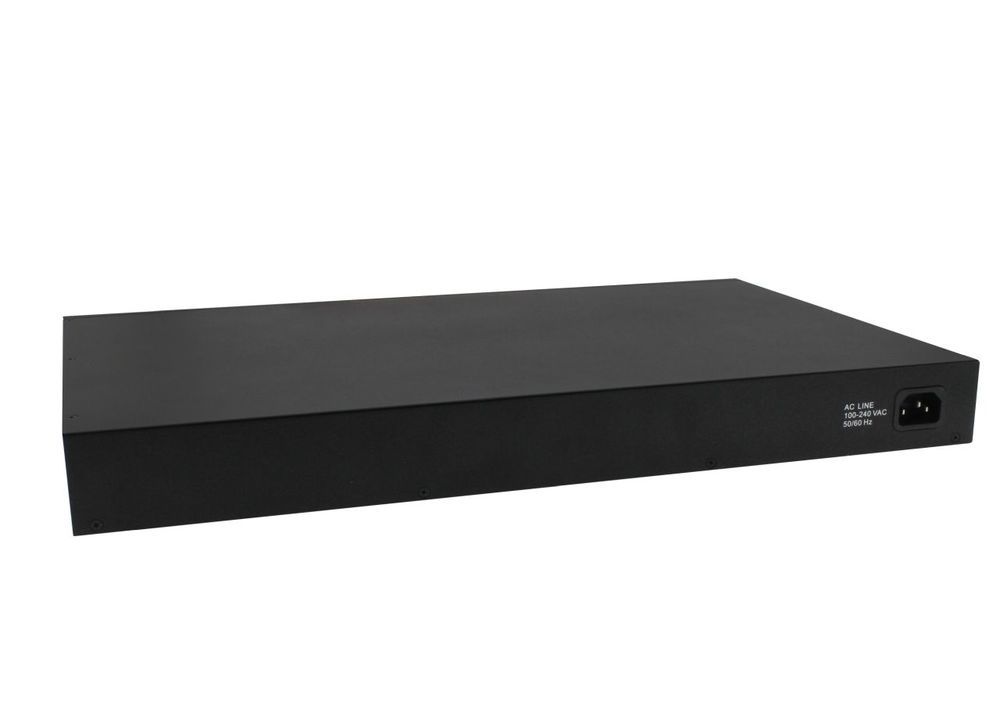

Input: 100 -240V AC
Output: 450W PoE Power Budget 370W Reset button Support reset to default configuration Dimension 441(W) x 270(D) x 45(H) mm FAN Design 6300 Fanx2 (Smart Fan) Temperature Operating: -5~ 50?
Storage: -40~70? Humidity Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 90% RH (non-condensing) Software Feature Status System Information Logging Message Port Statistics Error Disabled Bandwidth Utilization Link Aggregation MAC Address Table 8K Network IP Address Static / Dynamic System Time SNTP / From Computer / Manual Time Port Port Setting State / Speed / Duplex / Flow Control Error Disabled Recovery Interval ACL / ARP Rate Limit / BPDU Guard / Broadcast Flood / DHCP Rate Limit / Port Security / Self Loop / Unicast Flood / Unknown Multicast Flood Link Aggregation Group Port Setting State / Speed / Flow Control LACP EEE Jumbo Frame 9K Byte PoE Global Setting Schedule Status Priority Setting Power Limit Power Show VLAN VLAN Create VLAN VLAN Configuration Membership Port Setting Voice VLAN Property Voice OUI Protocol VLAN Protocol Group Group Binding MAC VLAN MAC Group Group Binding Surveillance VLAN Property Surveillance OUI GVRP Property Membership Statistics MAC Address Table Dynamic Address Aging Time Static Address Filtering Address Spanning Tree Property State / Operation Mode / Path Cost / BPDU Handling Operation Mode:STP/RSTP/MSTP Port Setting MST Instance MST Port Setting Statistics Discovery LLDP Property Port Setting MED Network Policy MED Port Setting Packet View Local Information Neighbor Statistics Multicast General Property Unknown Multicast Action / Multicast Forward Method Group Address Router Port Forward All Table Throttling Filtering Profile Filtering Binding IGMP Snooping Property State / Version / Report Suppression Querier Statistics MLD Snooping Property State / Version / Report Suppression Statistics MVR Property State / VLAN / Mode / Group Start / Group Count / Query Time Port Setting Group Address Security RADIUS TACACS+ AAA Method List Login Authentication Console / Telnet / SSH / HTTP / HTTPS Management Access Management VLAN Management Service Telnet / SSH / HTTP / HTTPS / SNMP / Session Timeout Management ACL Management ACE Authentication Manager Property Port Setting MAC-Based Local Account WEB-Based Local Account Sessions Port Security Protected Port Storm Control State / Broadcast / Unknown Multicast / Unknown Unicast / Action (Drop / Shutdown) DoS Property Port Setting Dynamic ARP Inspection Property Statistics DHCP Snooping Property Statistics Option82 Property Option82 Circuit ID IP Source Guard Port Setting IMPV Binding Save Database ACL MAC ACL MAC ACE IPv4 ACL IPv4 ACE IPv6 ACL IPv6 ACE ACL Binding QoS General Property CoS / DSCP / CoS-DSCP / IP Precedence Queue Scheduling Strict Priority / WRR CoS Mapping DSCP Mapping IP Precedence Mapping Rate Limit Ingress / Egress Port Egress Queue Diagnostics Logging Property Console / RAM / Flash Remote Server Mirroring Ping Traceroute Copper Test Fiber Module UDLD Property Message Time Neighbor Management User Account Firmware Upgrade / Backup Action (Upgrade / Backup) / Method (TFTP / HTTP) Active Image Active Image / Backup Image Configuration Upgrade / Backup Action (Upgrade / Backup) / Method (TFTP / HTTP) Save Configuration Source File / Destination File, Restore Factory Default SNMP View Group Community User Engine ID Trap Event Authentication Failure / Link UP_Down / Cold Start / Warm Start Notification RMON Statistics History Event Alarm Marks Safety LVD EN62368-1:2014 EMC CE EN55032: 2015+AC:2016
EN55035: 2017 class A FCC Part15, Subpart B: ANSI C
