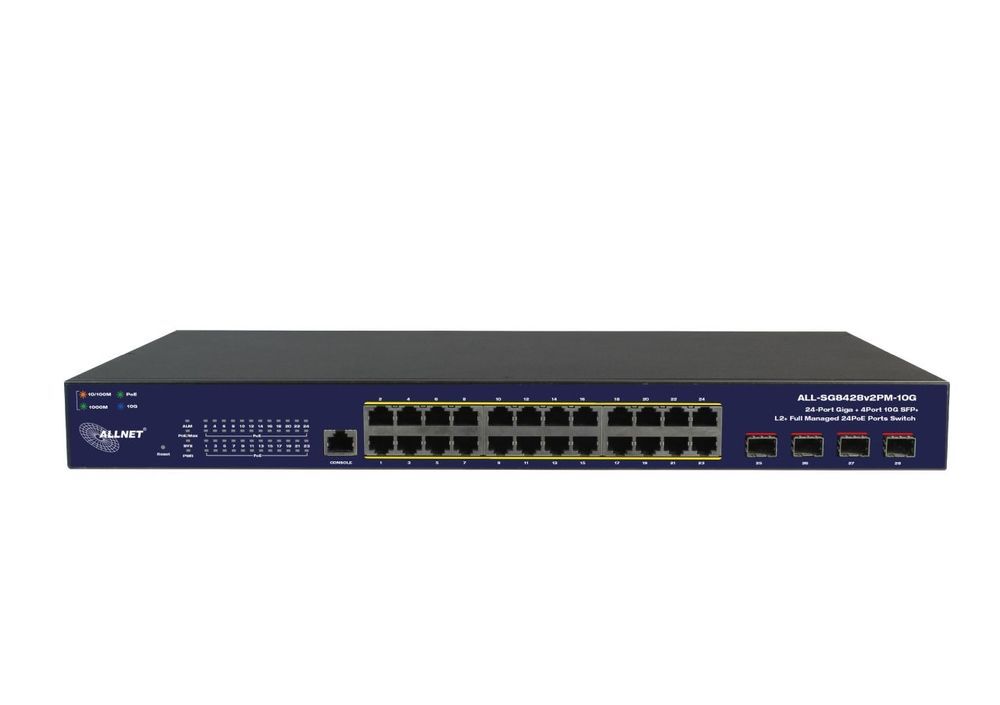

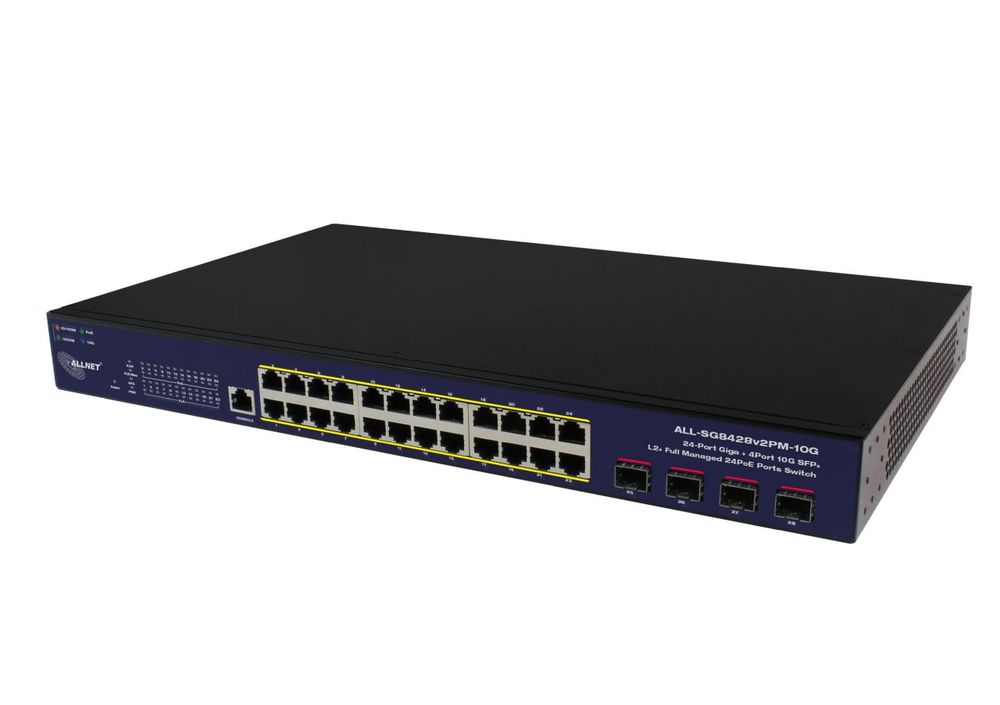

ALLNET Switch smart managed Layer2 28 Port • 24x 1 GbE • PoE Budget 400W • 4x SFP+ • 48,3 cm ( 19 inch ) • Fanless • ALL-SG8428v2FPM-10G Highlights: 24 Port PoE Gigabit non-blocking switch architecture + 4 SFP+ Mini-GBIC slots = Total 28 ports PoE standard according to IEEE802.3af / at max. 30W per port Supports NWay protocol for speed (10/100/1000Mbps) and duplex mode (half/full) auto-detection Switch capacity up to 128Gbps 16K MAC address table 12K bytes Jumbo frames 400W PoE Budget Hardware monitor alarm FANLESS Get the ALLNET Switch smart managed Layer2 28 Port now - the powerhouse for your network!
With 24 Gigabit Ethernet ports that support PoE according to Supporting IEEE802.3af/at and offering a maximum power of 30W per port, you are able to reliably power your devices. Additionally, this switch has 4 SFP+ Mini-GBIC slots, which increases the total number of available ports to an impressive 28.
This switch not only offers power, but also intelligent functions. Thanks to the NWay protocol, it automatically detects the optimal speed (10/100/1000Mbps) and duplex mode (half/full) for your devices. The switch capacity is up to 128Gbps, and the 16K MAC address table ensures efficient data management.
With a generous jumbo frames memory of 12K bytes, you are ready to transfer large amounts of data. The integrated 400W PoE budget provides enough power to run your PoE devices, all without a fan, ensuring a quiet and interference-free environment.
Expand your network options and rely on the quality of the ALLNET Switch smart managed Layer2 28 Port. Order the ALL-SG8428v2FPM-10G today and take the performance of your network to the next level! Mechanical Drawings: Technical Details: Hardware Specs: Items Specifications Model No. ALL-SG8428v2FPM-10G Key Components RTL9301-CG+RTL8218Dx3 GD32E230G8U6TR + RTL8238Bx3 Flash IC: MXIC 32M Byte DDR: 2G bits I/O ports 24x GbE ports, RJ45
4 x 10G ports, SFP+
Reset Button: reset to default setting, re-start system
Console port by RJ45 type PoE ports Port# 1~ 24
IEEE802.3at, IEEE802.3af LED Define PWR: Green LEDOff: power off or fail On: power on SYS: Green LEDOff: power off or fail On: system is ready Blinking: system booting up ALM: RED LEDOff: Switch is normal condition On: Alarm for system failure because of overheat, wrong voltage. PoE Max: Green LEDOff: No over PoE max power Alert On: Over PoE max power Alert 1-24 Port LED:
Link/ACT:Off: port disconnected or link fail Green on: 1000Mbps connected Amber on: 10/100Mbps connected Blinking: sending or receiving data 25-28 port LED:
SFP+:

• Off: disconnected or fail
• Blue: 10Gbps connected
• Green: 1000Mbps connected
• Blinking: data transmitting
PoE: Green LEDOff: PoE power output off Green on: PoE power output on HW feature IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3ae SFP+
IEEE802.3az EEE
MAC address Table: 16K
Packet buffer size: 12Mbit
Jumbo Frame: 12K bytes
128Gbps switching capacity
Forwarding rate: 95.2Mpps (64-byte package size) Data Transfer Rate Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Giga Ethernet: 2000 Mbps (full duplex)
10 Gigabit Ethernet: 20 Gbps (full duplex) System Monitor HW Monitor IC: ADT7476 Voltage MonitorInput Voltage: 12V (+/-7% Alarm Threshold) I/O Voltage: 3.3V (+/- 5% Alarm Threshold) DDR Voltage: 1.5V (+/- 5% Alarm Threshold) PHY Voltage: 1.1V (+/- 5% Alarm Threshold) MAC Voltage:1.0V (+/- 5% Alarm Threshold) Temperature Monitor BOARD: 0~80°C MAC: 0~85°C PHY: 0~85°C Power Input Internal power supply
Input: 90~264VAC/47~63Hz
Output: 600W PoE Power Budget 400W Reset button Support reset to default configuration Dimension 441(W) x 270(D) x 44(H) mm FAN Design Fanless Temperature Operating: 0 ~ 40?
Storage: -40 ~ 70? Humidity Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 90% RH (non-condensing) Software-Specs: Status System Information Logging Message Port Statistics Error Disabled Bandwidth Utilization Link Aggregation MAC Address Table 16K Network IP Address Static / Dynamic System Time SNTP / From Computer / Manual Time Port Port Setting State / Speed / Duplex / Flow Control Error Disabled Recovery Interval ACL / ARP Rate Limit / BPDU Guard / Broadcast Flood / DHCP Rate Limit / Port Security / Self Loop / Unicast Flood / Unknown Multicast Flood Link Aggregation Group Port Setting State / Speed / Flow Control LACP EEE Jumbo Frame 12K Byte PoE Global Setting Schedule Status Priority Setting Power Limit Power Show VLAN VLAN Create VLAN VLAN Configuration Membership Port Setting Voice VLAN Property Voice OUI Protocol VLAN Protocol Group Group Binding MAC VLAN MAC Group Group Binding Surveillance VLAN Property Surveillance OUI GVRP Property Membership Statistics MAC Address Table Dynamic Address Aging Time Static Address Filtering Address Spanning Tree Property State / Operation Mode / Path Cost / BPDU Handling Operation Mode:STP/RSTP/MSTP Port Setting MST Instance MST Port Setting Statistics Discovery LLDP Property Port Setting MED Network Policy MED Port Setting Packet View Local Information Neighbor Statistics Multicast General Property Unknown Multicast Action / Multicast Forward Method Group Address Router Port Forward All Table Throttling Filtering Profile Filtering Binding IGMP Snooping Property State / Version / Report Suppression Querier Statistics MLD Snooping Property State / Version / Report Suppression Statistics MVR Property State / VLAN / Mode / Group Start / Group Count / Query Time Port Setting Group Address Security RADIUS TACACS+ AAA Method List Login Authentication Console / Telnet / SSH / HTTP / HTTPS Management Access Management VLAN Management Service Telnet / SSH / HTTP / HTTPS / SNMP / Session Timeout Management ACL Management ACE Authentication Manager Property Port Setting Sessions Port Security Protected Port Storm Control State / Broadcast / Unknown Multicast / Unknown Unicast / Action (Drop / Shutdown) DoS Property Port Setting Dynamic ARP Inspection Property Statistics DHCP Snooping Property Statistics Option82 Property Option82 Circuit ID IP Source Guard Port Setting IMPV Binding Save Database ACL MAC ACL MAC ACE IPv4 ACL IPv4 ACE IPv6 ACL IPv6 ACE ACL Binding QoS General Property CoS / DSCP / CoS-DSCP / IP Precedence Queue Scheduling Strict Priority / WRR CoS Mapping DSCP Mapping IP Precedence Mapping Rate Limit Ingress / Egress Port Egress Queue Diagnostics Logging Property Console / RAM / Flash Remote Server Mirroring Ping Traceroute Copper Test Fiber Module UDLD Property Message Time Neighbor Management User Account Firmware Upgrade / Backup Action (Upgrade / Backup) / Method (TFTP / HTTP) Active Image Active Image / Backup Image Configuration Upgrade / Backup Action (Upgrade / Backup) / Method (TFTP / HTTP) Save Configuration Source File / Destination File, Restore Factory Default SNMP View Group Community User Engine ID Trap Event Authentication Failure / Link UP_Down / Cold Start / Warm Start Notification RMON Statistics History Event Alert
