ALLNET Switch smart managed 6 Port Gigabit 95W / 4x PoE / 1x Gi 6 Port Gigabit 95W / 4x PoE / 1x PoE bt In / ALL-SG8206PDM

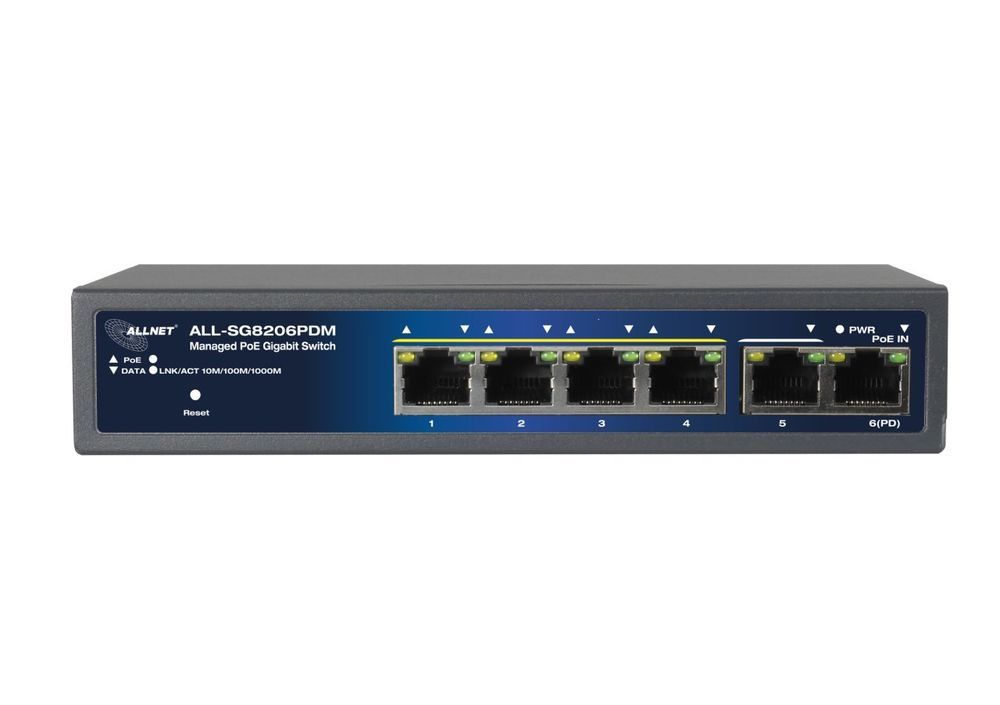

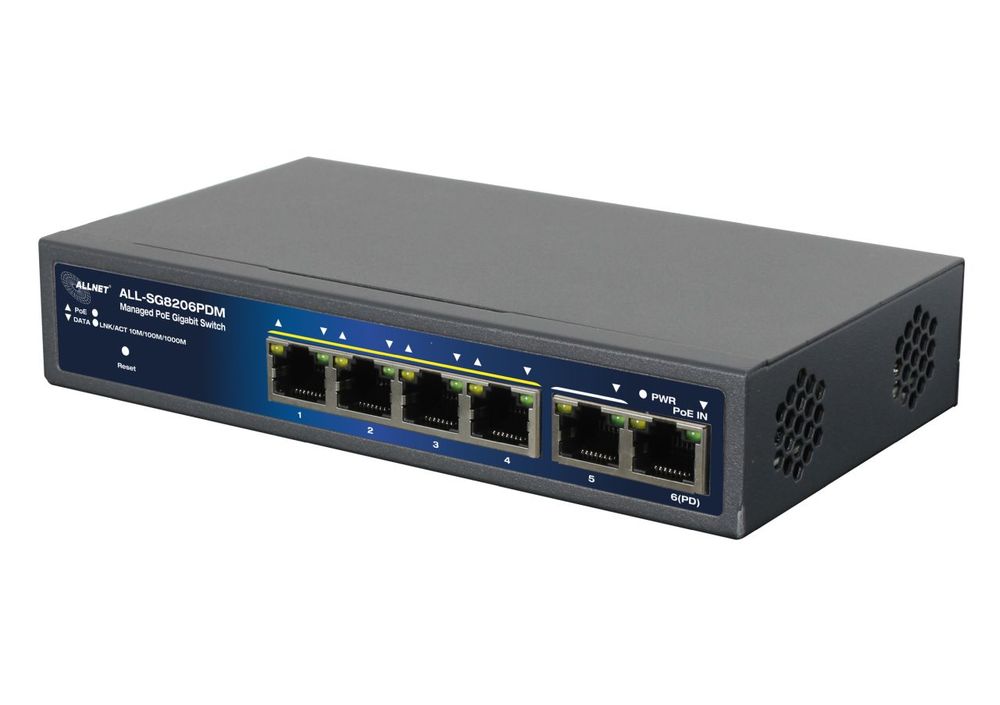

Highlights: IEEE 802.3at standard compliant with IEEE 802.3af electrical receiving device (PD) single port output power up to 30W, the sixth port is PD port, supports 95W PD power supply Automatic detection and identification of standard PoE receiving devices, intelligent Power supply, does not destroy non-standard PoE receiving devices. Port power supply priority is supported to ensure continuous power supply to important nodes in the network. Panel indicators monitor work status and assist in troubleshooting Supports PD-Alive function Supports IEEE802.3x full-duplex flow control and backpressure Half-duplex flow control Supports 802.1Q VLAN, Port VLAN, QoS, bandwidth control and storm suppression Supports port traffic statistics , port monitoring, cable detection and loopback protection Supports remote management via APP and web server Fast PoE and permanent PoE are supported Panel indicators to monitor work status Intelligent line speed forwarding detection Data exchange is in store-and-forward mode Operating temperature: 0°C ~ 40 °C The ALL-SG8206PDM is an in-house development based on a switch with 4 PSE, 1x Gigabit LAN and 1 PD ports. It has 6*10/100/1000Mbps RJ45 ports, including 1-4 ports with PoE PSE function, supporting 30W output, port 5 is a standard Gigabit LAN and port 6 has PD function and supports PoE according to IEEE802.3bt with max. 95W power. 1*PD electrical equipment Indicator PWR(Orange)?LNK/ACT(Green)?PoE(Orange) Network Media 10BASE-T: UTP category 3,4,5 cable(=100m) 100BASE-TX: UTP category 5, 5e cable (=100m) 1000BASE-T: UTP category 5e, 5 cable(=100m) MAC Address Table 8K, Auto-learning, Auto-aging Jumbo Frame 9216Byte Packet Buffer 4.1M bit Transfer Mode Store-and-forward Switching Capacity 12Gbps Packet Forward Speed 8.93Mpps Dimensions(L*W*H) 168*86*32mm Fan Fanless Power Supply Mode Built-in power supply and PoE power supply PSE Port Port1~4 PSE Power On RJ45 Mode A 1/2(+),3/ 6(-) PSE Total Power 60W PSE Power Output Voltage: DC 55V Power:30W(MAX) PD Port Port6 PD Input 95W Operating Temperature 0°C ~ 40°C Storage Temperature -40°C ~ 70°C Operating Humidity 10% ~ 90% non-condensing Storage Humidity 5% ~ 90% non-condensing Surge Protection Common mode ±4KV, differential mode ±2KV MTBF >50000 hours Electrostatic Standard Contact 6KV, air 8KV Green Energy Saving Support IEEE 802.3az Function menu Functional description Added Basic Login authentication and logout Bilingual (Chinese-English switching) Port panel (dual color rate

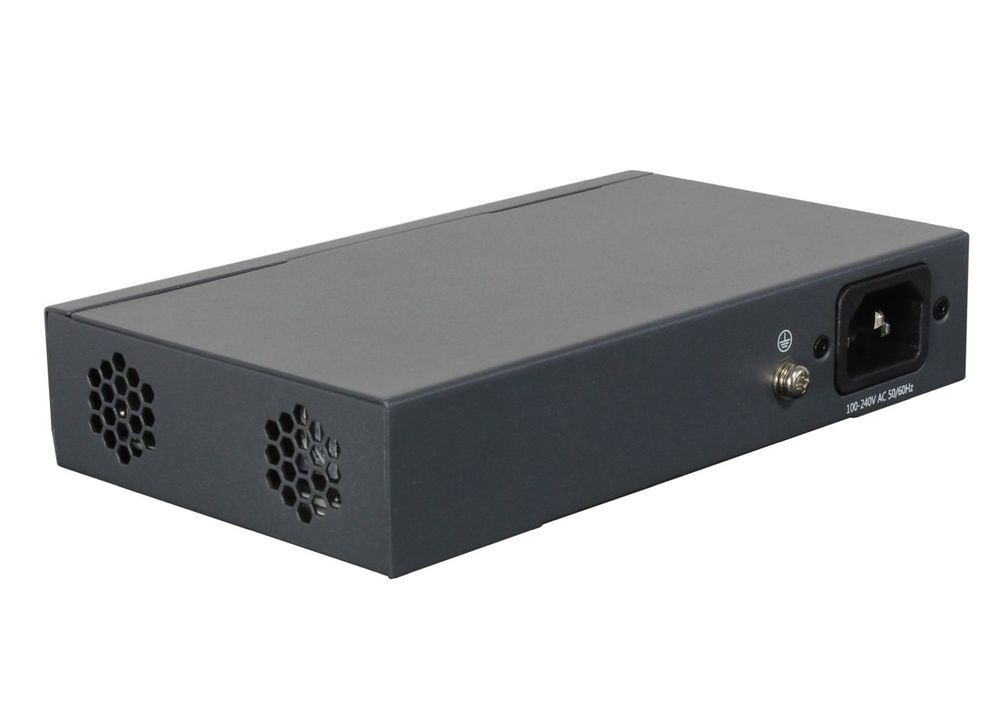

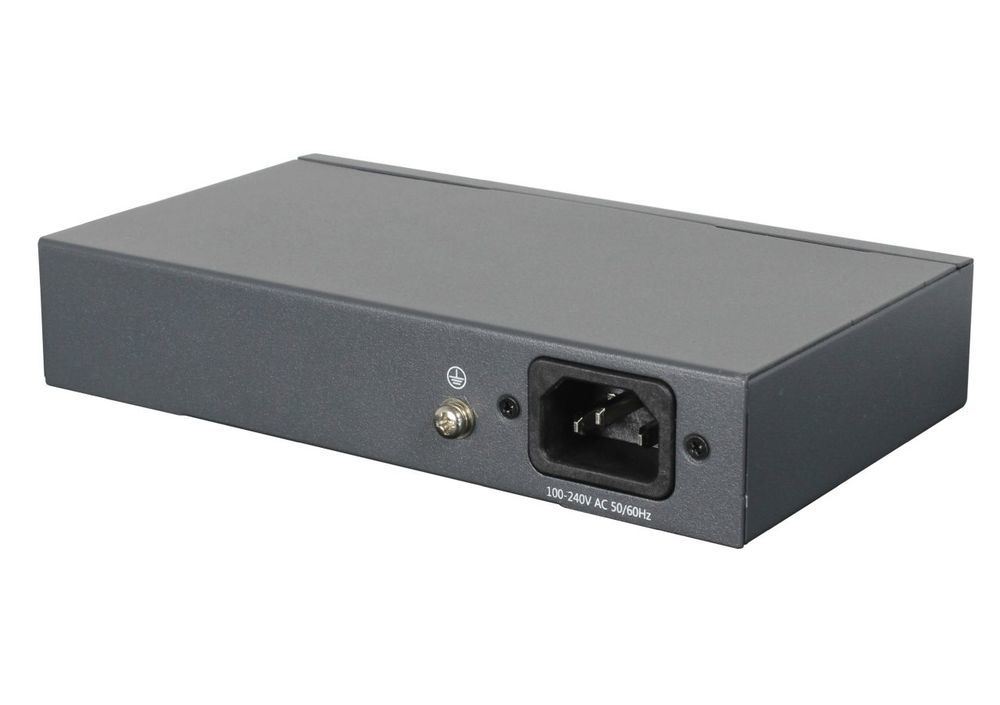

The ALL-SG8206PDM has a built-in 60W power supply. It offers high performance, enterprise-grade QoS, advanced security strategies and extensive Layer 2 management features. With all these advanced features, the PoE switch is the ideal choice for small and medium-sized businesses..Technical Details: Model ALL-SG8206PDM Standard IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1X ,IEEE 802.1q,IEEE 802.1p,IEEE 802.1d,IEEE 802.1w,IEEE 802.3ad,IEEE802.3af,IEEE802.3at Interface 4 PSE port (Port1-4)
differentiator) 1000 m green 100 m / 10 m orange yellow One click Dumb Switch mode System configuration Equipment information Device name Device contact Location of equipment IP Address Setting Static/dynamic Support the DNS Web configuration Web Timeout Setting User management The password must contain at least
six letters and digits The firmware update Local upgrade Equipment management Equipment to restart factory data reset The system log Monitoring management The port statistical Cable testing Ring network configuration rlpp ONVIF Detect Switch Configuration Port configuration Status Speed/Duplex/Flow Control CCTV Port mirror Entrance/exit /ALL Port isolation Simple implementation of the
VLAN reference to dumb Port aggregation Static Static MAC MAC filtering MAC query Categories display static/dynamic MAC list SNMP V1 DHCP Snooping VLAN configuration Member of the VLAN VLAN configuration Access?Trunk QoS configuration Port speed limit The broadcast storm QOS Queue Setting Enable/disable power supply
