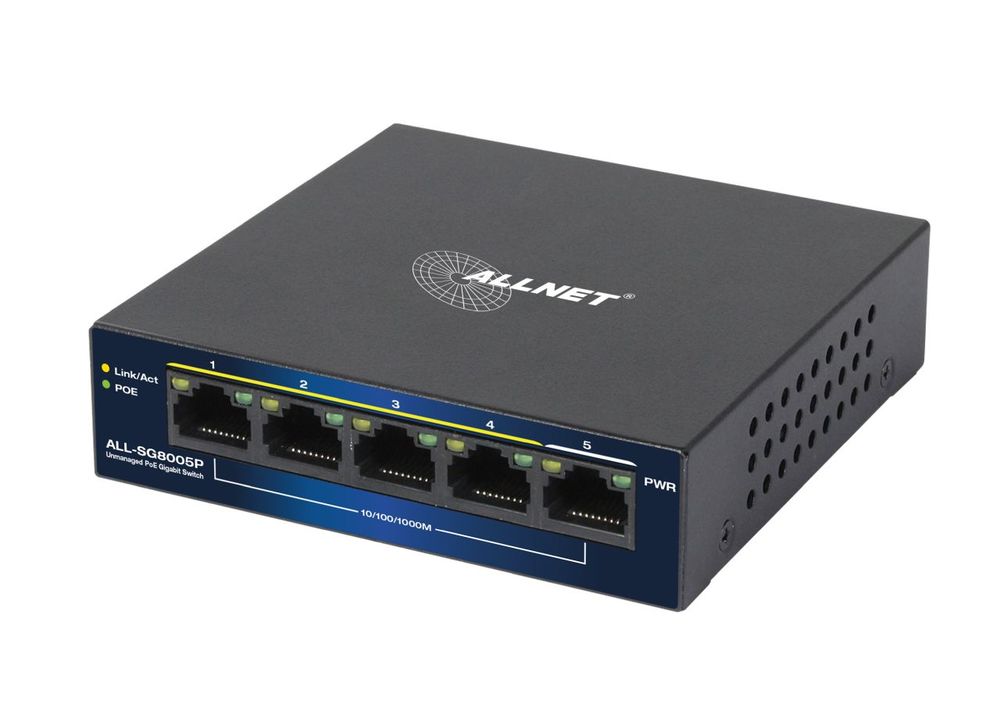

ALLNET Switch unmanaged Layer2 5 Port? 5x 1GbE? PoE budget 69W? Fanless? ALL-SG8005P

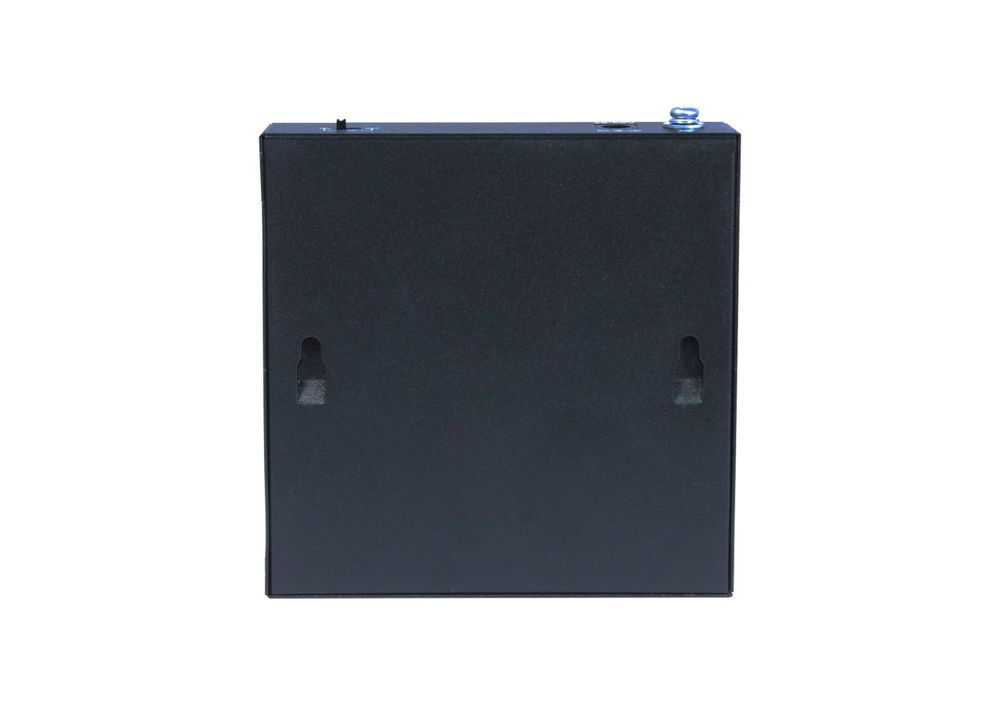

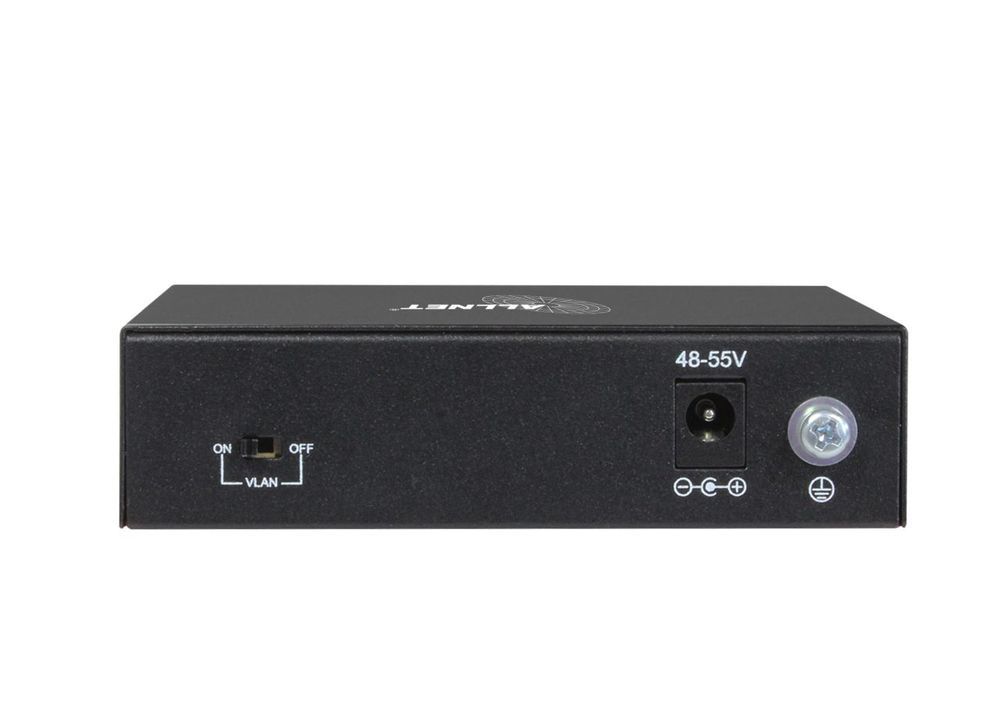

ALLNET Switch unmanaged Layer2 5 port • 5x 1GbE • PoE Budget 69W • Fanless • ALL-SG8005P Highlights: Port 1-4 PoE output, port 5 = uplink port Compact metal housing Default mode or VLAN port isolation mode (interconnect with port 5) 2KV surge Protection Offers 2K MAC address entry Compact dimensions: 100 x 99.44 x 26mm Wall mounting possible / Optional magnets see accessories Supports IEEE802.3x flow control for full duplex. Power supply and power cable 55VDC / 1.3A are included in the scope of delivery. The ALL-SG8005P desktop switch is a POE switch with Auto-MDI/MDIX function designed to reduce network congestion and provide redundant network communication. Each port offers high bandwidth and can power wireless APs, IP cameras, etc. Support half/full duplex mode, Plug Network Port 4 10/100/1000Mbps PoE RJ45 port (Port1~port4) 1 10/100/1000Mbps RJ45 port uplink (Port5) Network cable type 10/100/1000MBase-TX: Category 3 /4/5/5E/6 twisted
pair, support a maximum transmission distance of 100 Meter Dimensions (W×D×H) 100x99.4x26mm Weight: 199.5g MAC 2K Performance Bandwidth:10Gbps
Frame filtering and transmission rate: 10M port maximum 14,800 pps
100M port maximum148,800pps
1000M port maximum148,8000pps LED indicator Port: Link/Act 10/100/1000Mbps , showing yellow PoE port: power supply status, showing green Power indication: power-on state, showing green Surge protection Ethernet PoE port : Common mode:2KV,Differential
mode:0.5KV POE pin 1/2(-),3/6(+) Power input rated voltage/frequency 100-240VAC/50-60Hz Power Max power for single port 30W, total max PoE output 52W.
External power adapter: 69W

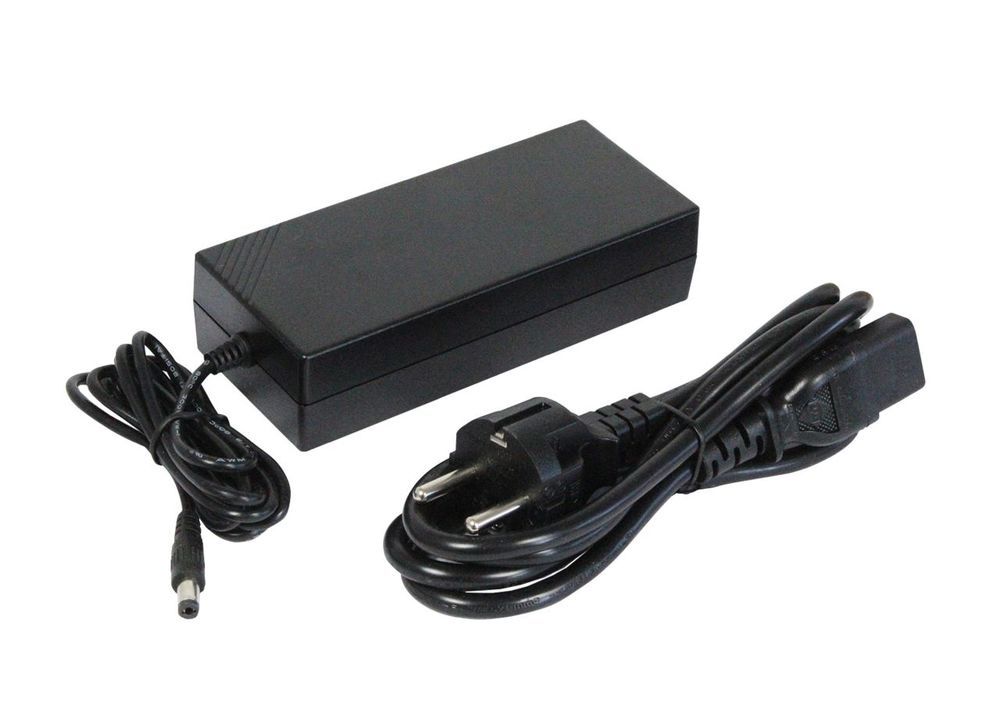

55VDC / 1.3A with Power cord is included Working temperature 0°C~40°C Working environment humidity 10%~85% storage temperature -10°C~70°C Storage humidity 10%~90% Cooling Natural heat dissipation method
