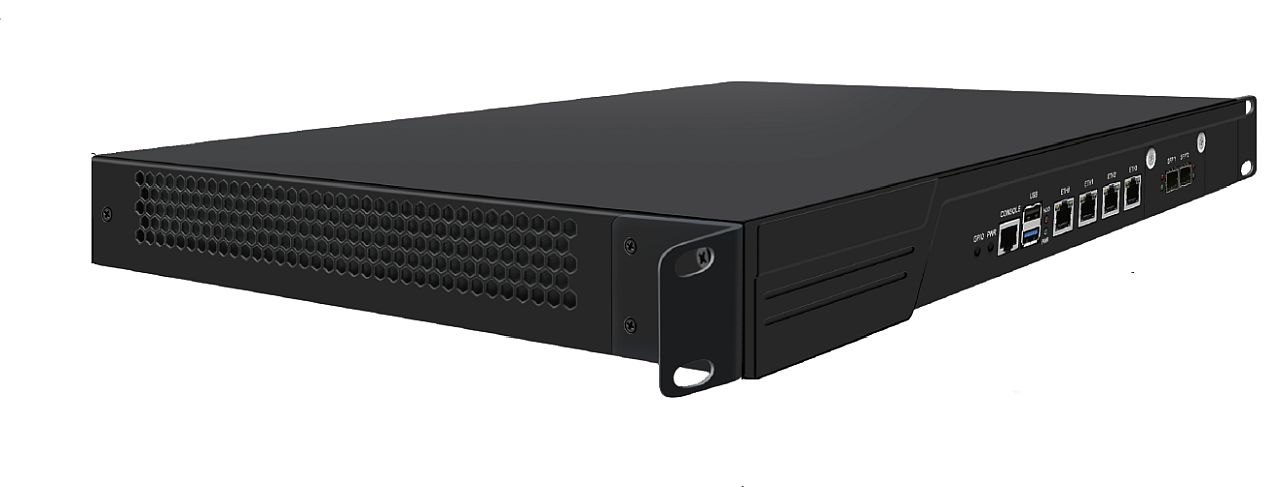

1U Rack Netzwerk-/Security-Appliance – Intel® N150, 16GB DDR5, 4×2.5G + 2×10G SFP+, 256GB NVMe Diese energieeffiziente Rack-Netzwerk-Appliance auf Basis der Intel® Alder Lake-N Plattform ist ideal als Firewall/UTM, VPN-Gateway, Router oder SD-WAN-CPE. In der von dir gewünschten Konfiguration arbeitet das System mit Intel® Processor N150, 16GB DDR5 und einer performanten Netzwerkbestückung aus 4×2.5GbE RJ45 plus 2×10G SFP+ – perfekt für Umgebungen, in denen schnelle Uplinks und stabile 24/7-Verfügbarkeit gefragt sind. Konfiguration (wie von dir vorgegeben) CPU: Intel® N150 (Alder Lake-N, Low-Power Plattform) N97-N100-N200-N305-1U-2U????? RAM: 16GB DDR5 (SO-DIMM DDR5-4800 Plattform unterstützt bis 48GB) Netzwerk: 4× 2.5G RJ45 (Intel i226-V Controller) + 2× 10G SFP+ Storage: 256GB NVMe SSD (Konfiguration) Highlights & Vorteile Starker Netzwerk-Fokus: 2.5G-Ports für LAN/DMZ-Segmentierung + 10G SFP+ für schnelle Backbone-/Core-Uplinks. Erweiterbar per PCIe: PCIe Gen3 x8 Slot (x4 Signal) zur Bestückung mit Dual/Quad-NICs bis hin zu 10G-SFP+. BYPASS-Option: vorbereiteter Steckplatz/Option zur BYPASS-Funktion (1–4 Ports, kundenspezifisch) – wichtig für Security-Appliances im Fail-Safe-Betrieb. Rack-Gehäuse 1U oder 2U: mit aktiver Kühlung (mehrere Lüfter je nach Bauhöhe) für stabilen Dauerbetrieb. Stromversorgung flexibel: 100–240V AC, optional Single- oder redundantes Netzteil (modell-/konfigurationsabhängig). I/O & Management: RJ45-Console, USB 2.0/3.0,
VGA sowie Features wie Watchdog und PXE/Wake-on-LAN. Typische Einsatzbereiche Firewall/UTM, IDS/IPS, VPN-Gateway, Standortvernetzung, SD-WAN, Routing/Load-Balancing, Edge-Security im Industrie- oder Filialbetrieb. Category Item Value Main Code Name Intel® Alder Lake-N Main Popular model N150 Main Memory 1 * SO-DIMM DDR5 4800MHz 16GB (MAX 48G) LAN IC Intel® i226-V LAN Speed 2500Mbps 2.5G adapting LAN Interface 4 * Intel® Ethernet Controller 2.5G RJ45 Storage M.2 N/A Storage mSATA / SATA 1 * SATA3.0 6Gbps / 1 * mSATA / 1 * CF (One out of three) Display Header/Pin 1 *
VGA / 1 * JHDMI / 1 * EDP BIOS UEFI AMI UEFI BIOS USB Interface 1 * USB2.0 / 1 * USB3.0 USB Header/Pin 2 * USB2.0 (Vertical) / 6 * USB2.0 (Array pin) Power Supply Voltage 100-240V~50 / 60Hz Power Supply Mainboard ATX 4PIN 12V / DC-12V 55mm*25mm PCI-E Extension 1 * PCI-E x8 Slot Gen3 PCIe3.0 x4 Other GPIO 4 * programmable GPIO Other Watchdog 255 Levels, 0-255 Seconds Other Bypass N/A Other COM 1 * RJ45 Console / 2 * COM (Array pin) Other TPM N/A Other 4G / WiFi 1 * miniPCIe Other Other Network WakeUp / PXE Dimension Spec 1U (440mm*320mm*45mm) / 2U (435mm*439mm*90mm) Work Temp Temperature 0°C~60°C, Storage: -10°C~70°C Work Temp Humidity 10%~90%, Storage: 5%~95%, non-condensing System OS
Windows 10/11, Windows Server, Linux, not included!
Questions & answers
What is the delivery time of Allnet ALL-RackPC-N150 Network Appliance/Server 48,3 cm ( 19 inch ) Intel® N150 1U Barebone 4x 2,5GBit LAN 2x SFP+ ?
The article Allnet ALL-RackPC-N150 Network Appliance/Server 48,3 cm ( 19 inch ) Intel® N150 1U Barebone 4x 2,5GBit LAN 2x SFP+ is currently
in stock
According to our experience the article is ready for dispatch within 4 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Allnet ALL-RackPC-N150 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Allnet ALL-RackPC-N150 Network Appliance/Server 48,3 cm ( 19 inch ) Intel® N150 1U Barebone 4x 2,5GBit LAN 2x SFP+ always at the best possible price. We can give you a discount of 2% on
Allnet ALL-RackPC-N150 Network Appliance/Server 48,3 cm ( 19 inch ) Intel® N150 1U Barebone 4x 2,5GBit LAN 2x SFP+ if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Allnet ALL-RackPC-N150 Network Appliance/Server 48,3 cm ( 19 inch ) Intel® N150 1U Barebone 4x 2,5GBit LAN 2x SFP+ we can offer you a price of 667,44 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
