ALLNET ALL-GHN101-2wire / G.HN bundle for 2 wire connection

Your rating:
Average rating
product review for ALLNET ALL-GHN101-2wire / G.HN bundle for 2 wire connection
( 4.5 / 5 ) 657 ratings
Allnet All-GHN101-2-wire-Set
This image may differ from the desired article.
Allnet All-GHN101-2-wire-SetAllnet All-GHN101-2-wire-SetAllnet All-GHN101-2-wire-SetAllnet All-GHN101-2-wire-Set
-15% 208,80 EUR 244,69 EUR
( 248,47 EUR incl. VAT )
≈ £174.56  |  ≈ $230.72
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline
In Stock: >1000 pieces
1x ALLNET ALL-GHN101-2wire / G.HN bundle for 2 wire connection
Datasheet:file_download Download
Lieske Part No.:922349
Mfg Part No: All-GHN101-2-wire-Set
UPC/EAN: 4038816053428
Weight:1 kg
Graduated prices net
From piecesPrice per pieces
5207,23 EUR
10205,67 EUR
15204,10 EUR
20202,54 EUR

Product information for Allnet All-GHN101-2-wire-Set:

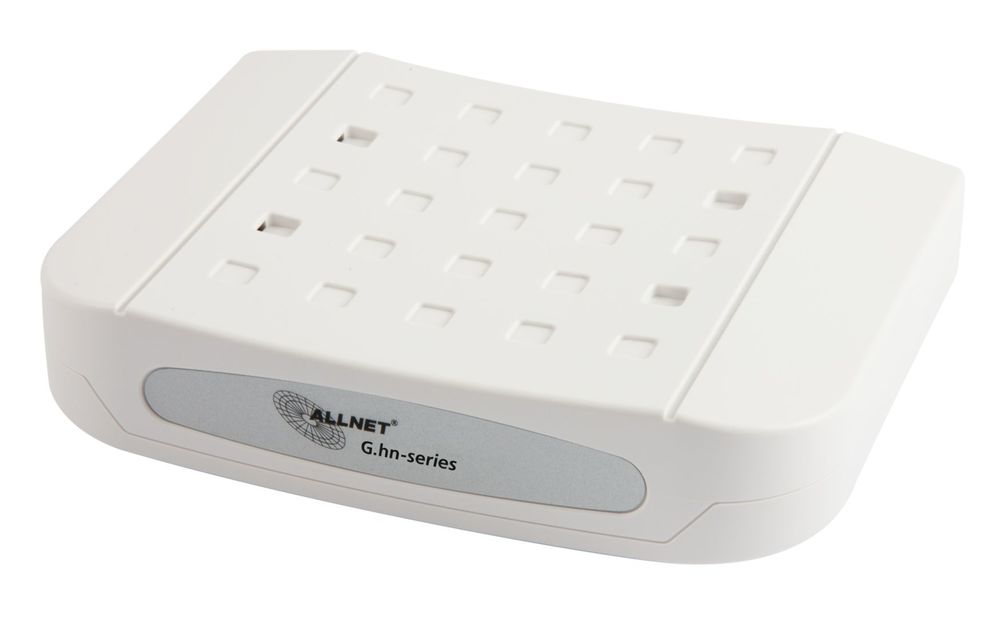

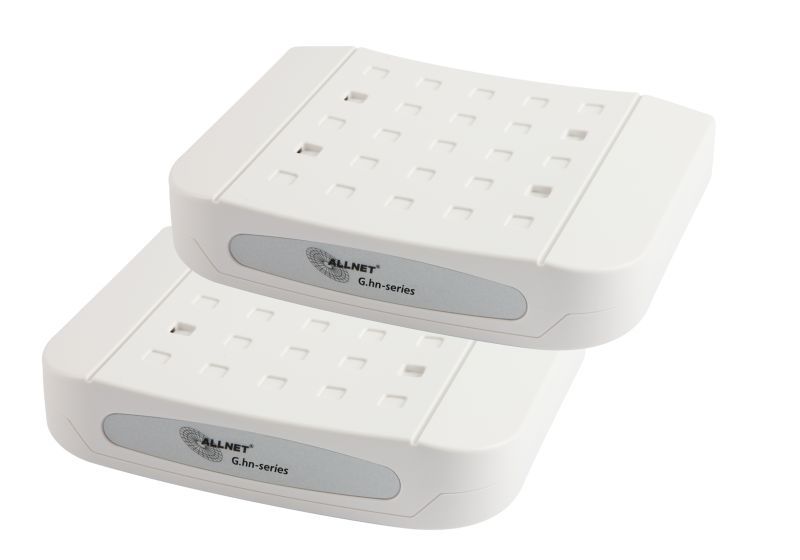

The Allnet ALL-GHN101-2-wire-Set is a G.hn network bridge for using existing telephone lines as a backbone for a private network. The device enables the transmission of Gigabit Ethernet data over 2-wire connections, such as those found in traditional telephone lines, without the need to lay additional network cables. The technology is based on the international standard ITU G.9960 G.hn, which enables data transmission over existing copper lines such as telephone or power cables. The bridge is designed for a point-to-point connection, establishing a direct link between two devices over the telephone line.

Applications

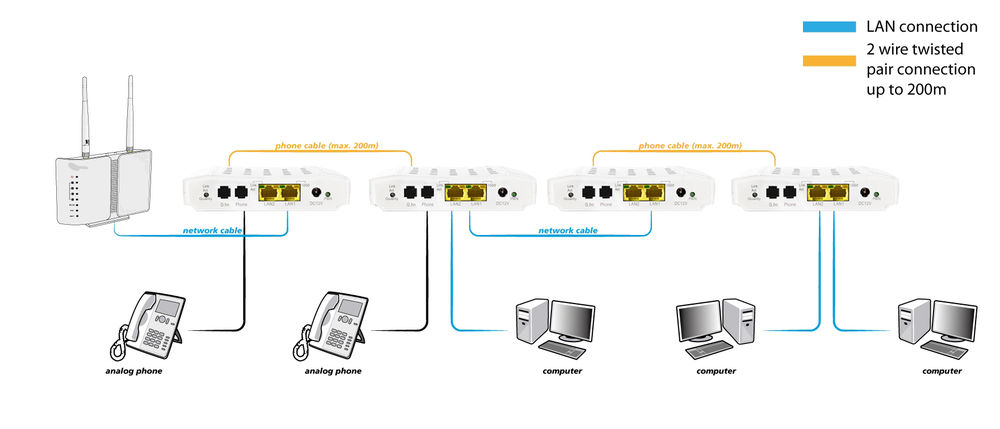

This device is particularly suitable for extending an existing home network, especially in apartments or houses where telephone lines are already installed. It can be used to connect a DSL modem, FTTH router, PC, set-top box, or other Ethernet-capable end devices at high data rates. The maximum range is up to 350 meters, with the actual data rate depending on the length and quality of the line. Measured net data rates are 251 MBit/s over 60 meters, 241 MBit/s over 100 meters, 201 MBit/s over 200 meters, and 92 MBit/s over 300 meters.

Functions and Features in Detail

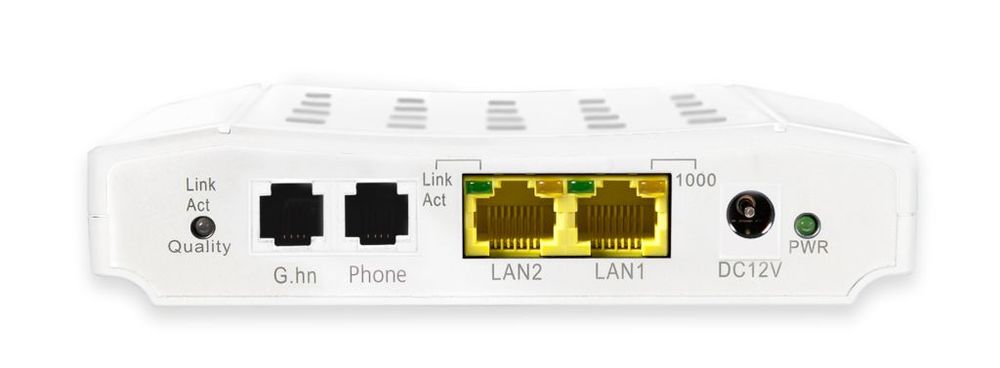

The bridge features two RJ-45 Ethernet ports supporting 100/1000 Mbps (Gigabit Ethernet), with speed automatically negotiated (Auto Negotiation). The ports also support Auto-Crossover (MDI/MDI-X), so no special patch cables are required. For connection over the telephone line, two RJ-11 ports are provided: one for the G.hn connection, and the other allows bypassing the telephone line, so the existing telephone function (PSTN) can still be used. An integrated filter ensures that interference from telephone systems or PSTN lines is minimized.

Technology Explained Simply
The G.hn technology uses the frequency band from 6 to 76 MHz for data transmission. This frequency band does not overlap with the frequencies used for ADSL or VDSL, so coexistence is not guaranteed. The transmission power is 6 ±1 dBm. Data transmission is encrypted using AES-128, ensuring secure communication. The bridge also supports Energy Efficiency Ethernet (IEEE 802.3az), reducing power consumption during inactive use. Power supply is via an included power adapter providing 12 volts, with power consumption of 3.5 watts.

Compatibility and Accessories
The bridge is not compatible with VDSL and ADSL on the same line, as the frequency bands overlap. It is not possible to establish multiple G.hn connections in a multi-pair cable, as this would cause crosstalk. As accessories, various RJ11 connectors and a crimping tool are available, suitable for telephone line cabling.

Mounting and Installation
The bridge can be wall-mounted, with dimensions of 130 mm (width) × 95 mm (depth) × 32 mm (height). The device weighs 135 g (without power adapter). Installation involves connecting the two RJ-11 connectors to the existing telephone line and the RJ-45 ports to the Ethernet devices. LED indicators for power supply, G.hn connection (Link/Activity/Quality), and Ethernet connection (Link/Activity) allow for easy status monitoring.

Advantages in Operation
Using existing telephone lines reduces the need for new cable installations and minimizes installation effort. The bridge offers high data rates over long distances and is suitable for use in residential and office buildings. Integrated Quality of Service (QoS) with prioritization according to IEEE 802.1p ensures reliable data transmission, especially for time-critical applications. The operating temperature range is 0 °C to 50 °C, with humidity from 10 % to 95 % (non-condensing). The device is designed for indoor use and complies with CE marking.

General
Network standardITU G.9960 G.hn
Ethernet standardIEEE 802.3u, IEEE 802.3ab, IEEE 802.3az
Ethernet connections2 x RJ-45
G.hn connections2 x RJ-11
Data rateup to 250 MBit/s
Maximum range350 Metres
Frequency band6–76 MHz
Transmission power6 ±1 dBm
EncodingAES 128
Power consumption3,5 W
Operating voltage12 V
Operation temperature0–50 °C
Storage temperature-10–65 °C
Air humidity10–95 %
LED indicatorsPower, G.hn Link/Activity/Quality, Ethernet Link/Activity (x2)
QoSIEEE 802.1p
ApprovalCE
Power adaptorincluded
Auto-negotiationYes
Auto-CrossoverYes
Bypass functionYes


Product data sheet
Datasheet for Allnet All-GHN101-2-wire-Set, EAN: 4038816053428
