ALLNET ALL-GHN101-2wire / G.HN Bridge Converter for 2-wire connections

Your rating:
Average rating
product review for ALLNET ALL-GHN101-2wire / G.HN Bridge Converter for 2-wire connections
( 4.6 / 5 ) 240 ratings

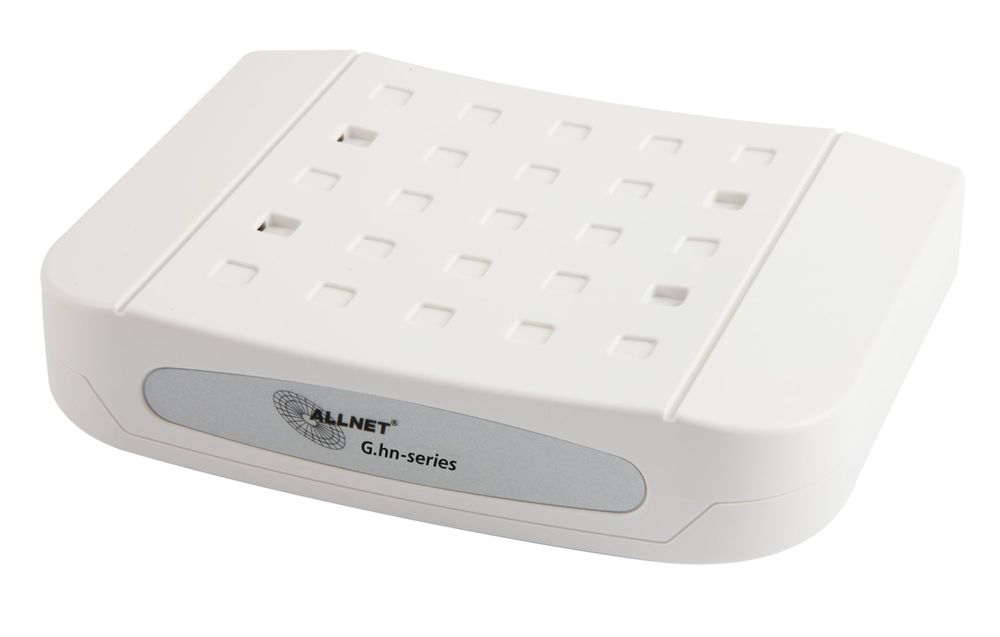

Allnet ALL-GHN101-2wire
This image may differ from the desired article.
Allnet ALL-GHN101-2wireAllnet ALL-GHN101-2wireAllnet ALL-GHN101-2wireAllnet ALL-GHN101-2wire
100,92 EUR
( 120,09 EUR incl. VAT )
≈ £84.37  |  ≈ $111.52
plus delivery charges: 55,00 €
in stockinfo_outline
In Stock: >500 pieces
1x ALLNET ALL-GHN101-2wire / G.HN Bridge Converter for 2-wire connections
Datasheet:file_download Download
Lieske Part No.:632431
Mfg Part No: ALL-GHN101-2wire
UPC/EAN: 4038816048516
Weight:0.42 kg

Product information for Allnet ALL-GHN101-2wire:

The Allnet ALL-GHN101-2wire is a G.hn modem for use over existing telephone lines using the 2-wire method. It serves as a Gigabit Ethernet bridge to extend a private network within a building without the need to lay additional network cables. The connection is established over existing telephone lines, with G.hn technology (ITU G.9960) as the basis, enabling data rates up to 251 MBit/s over distances up to 350 meters. Measured net data rates are 251 MBit/s over 60 m, 241 MBit/s over 100 m, 201 MBit/s over 200 m, and 92 MBit/s over 300 m. Transmission occurs in the frequency range of 6 to 76 MHz, where coexistence with ADSL or VDSL is not guaranteed due to overlapping frequencies. Therefore, the unit is not compatible with VDSL connections intended to operate on the same line.

Applications

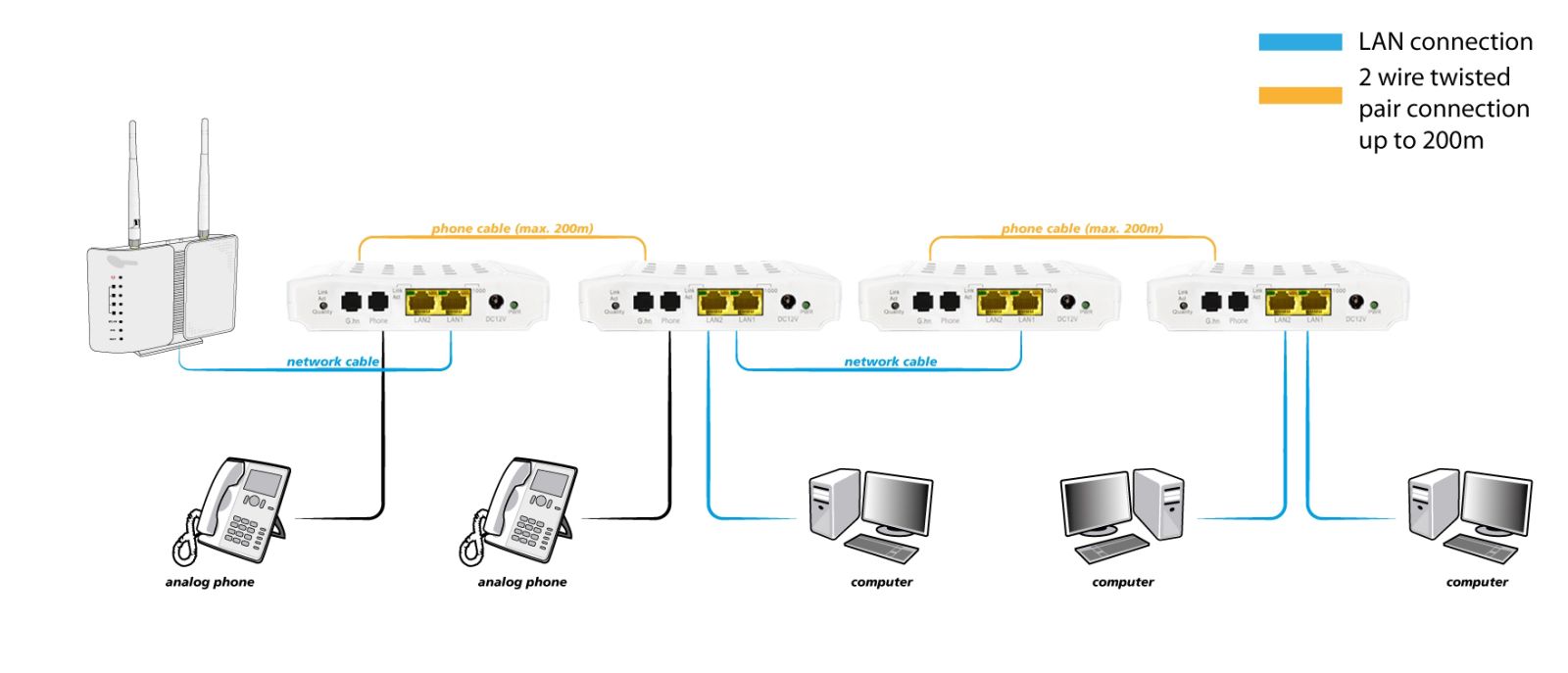

This device is suitable for use in residential and office buildings where existing telephone lines are to be used for network connections. It enables the connection of Ethernet terminals such as PCs, set-top boxes, TV devices, or WLAN access points over the telephone line. The point-to-point connection is specifically designed for use in a 2-wire system, where multiple G.hn connections in a multi-pair cable are not possible, as this would cause crosstalk. For multi-pair cable systems, Allnet offers VDSL2 Vectoring technology.

Functions and Equipment in Detail

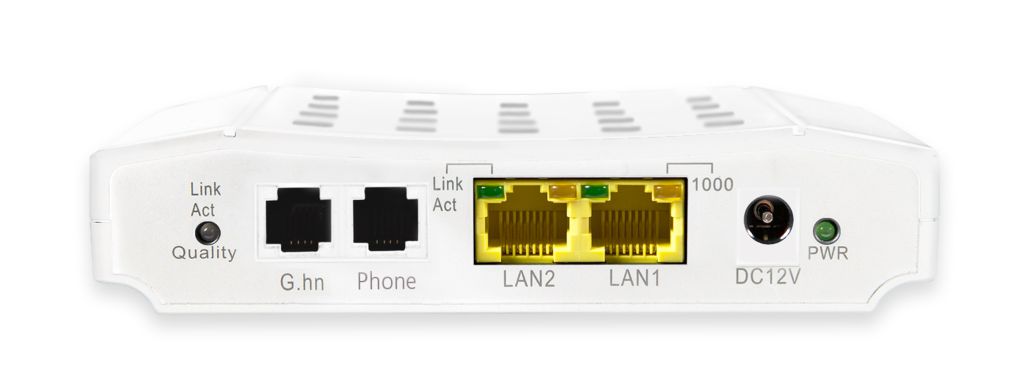

The modem features two RJ-45 ports for Gigabit Ethernet (100/1000 Mbps) with Auto-Negotiation and MDI/MDI-X Auto-Crossover. This allows direct connection to DSL modems, cable modems, FTTH end devices, or other Ethernet end devices. An integrated analog telephone splitter enables simultaneous use of the telephone line for broadband and telephony applications. Signal quality is indicated via an LED display (G.hn Link/Activity/Quality). Additionally, two LED indicators are provided for the Ethernet connections (Link/Activity). Data transmission is secured using AES-128 encryption.

Technology Explained Simply
The G.hn technology uses existing telephone lines as a transmission medium for high-speed data. The frequency bandwidth of 6 to 76 MHz enables high data rates, although compatibility with ADSL/VDSL is not possible due to frequency overlap. The maximum range of 350 meters depends on real-world conditions, including line quality and the number of connections. Power supply is provided via an included power adapter delivering 12 V, with a power consumption of 3.5 W. The unit is suitable for wall mounting and has dimensions of 130 mm (W) × 95 mm (D) × 32 mm (H), weighing 135 g (without power adapter).

Compatibility and Accessories
The device is designed for use with existing telephone lines. Compatible accessories include RJ11 connectors (6P4C) in various configurations (for round and flat cables, 100-piece pack, 2-piece pack with terminal block/screw contact) as well as a crimping tool for RJ10/RJ11/RJ12/RJ-45 connectors. These components allow adaptation to different cable types and installation scenarios.

Installation and Mounting

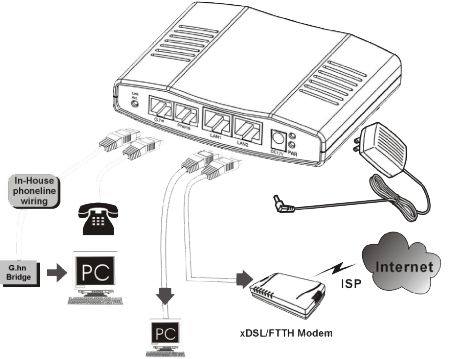

Installation involves connecting the two RJ-11 connectors to the telephone line—one for the G.hn connection and the other for bypassing the telephone line. The Ethernet ports are connected to the respective devices. Wall mounting is possible, with the unit operating in an ambient temperature range of 0 °C to 50 °C and relative humidity of 10 % to 95 % (non-condensing). Storage temperature ranges from –10 °C to 65 °C.

Operational Advantages
Using the Allnet ALL-GHN101-2wire reduces the effort required for network extensions, as no new cables need to be laid. Energy efficiency (Energy Efficiency Ethernet, IEEE 802.3az) ensures low power consumption. The integrated QoS function (Quality of Service) enables prioritization of data traffic based on IEEE 802.1p, which is beneficial for transmitting sensitive applications such as VoIP or streaming. The LED indicators support quick diagnosis of connection and signal quality issues.

General
Network standardITU G.9960 G.hn over telephone line
Ethernet standardIEEE 802.3u 100M Fast Ethernet, IEEE 802.3ab 1000M Gigabit Ethernet
Energy efficiencyIEEE 802.3az Energy Efficiency Ethernet
Ethernet connectionstwo RJ-45 connectors
G.hn connectionstwo RJ-11 connectors
G.hn transmission power6 +/- 1 dBm
G.hn frequency range6 ~ 76 MHz
Maximum range350 Metres
Measured net data rates60m: 251 MBit/s, 100m: 241 MBit/s, 200m: 201 MBit/s, 300m: 92 MBit/s
EncodingAES 128
Ethernet interface100/1000Mbps Auto Negotiation, MDI/MDI-X Auto Crossover
Quality of ServicePrioritization based on IEEE 802.1p
LED indicatorsPower, G.hn Link/Activity/Quality, Ethernet Link/Activity (x2)
Operation temperature0 °C to 50 °C
Storage temperature–10 °C to 65 °C
Power consumption3,5 W at 12 V
MountingWall mounting possible
Accessories included in deliveryPower adaptor


Product data sheet
Datasheet for Allnet ALL-GHN101-2wire, EAN: 4038816048516

Questions & answers

What is the delivery time of ALLNET ALL-GHN101-2wire / G.HN Bridge Converter for 2-wire connections?

The article ALLNET ALL-GHN101-2wire / G.HN Bridge Converter for 2-wire connections is currently in stock

According to our experience the article is ready for dispatch within 143 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allnet ALL-GHN101-2wire to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you ALLNET ALL-GHN101-2wire / G.HN Bridge Converter for 2-wire connections always at the best possible price. We can give you a discount of 2% on ALLNET ALL-GHN101-2wire / G.HN Bridge Converter for 2-wire connections if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
