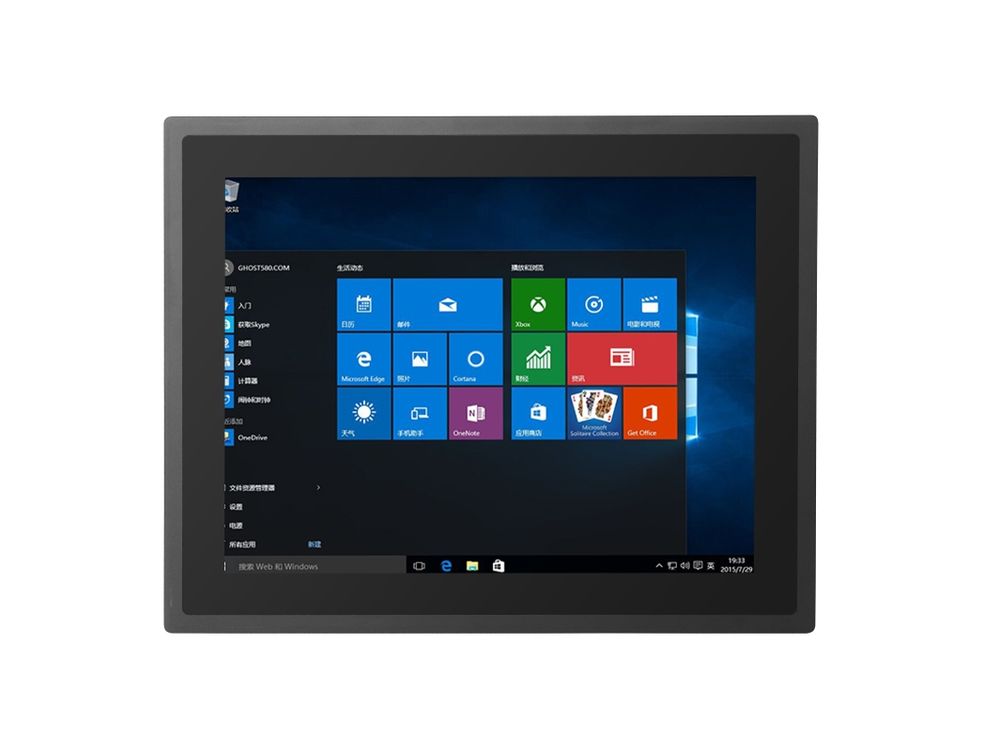

ALLNET AIO IPC industrial Windows/Linux, 15.0 inch touch, Intel® Whiskey Lake i3 8145U processor, 8GB/128GB, WiFi, RJ45, USB, SIM, wall mounting content_copy

ALL in One industrial PC 38,1 cm ( 15 inch ) Intel® Wiskey Lake Core™ i3 8145U industrial display, capacitive multi-point touchscreen 2*SO-DIMM DDR4 8GB (up to 32GB) 4*USB3.0/2*RS232 1*HDMI/1*VGA /1*Gigabit LAN/2*Audio Fanless Design Discover the ALLNET AIO PC - your solution for reliable and powerful industrial touchscreen technology!

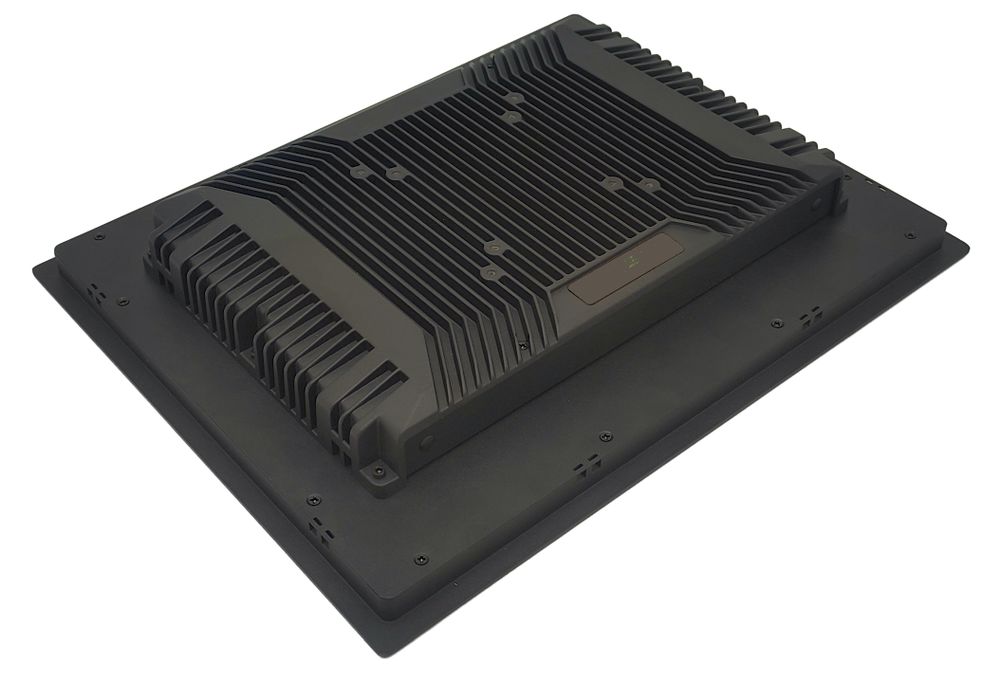

Ready to experience the future of touchscreen PCs? The ALLNET AIO PC is the industrial fanless capacitive Touch screen panel PC you need - with low power consumption and unmatched reliability. Its impressive die-cast aluminum alloy and CNC process ensures excellent cooling and offers you an incredibly slim and fanless experience. No more compromises
! AIO PC the ultimate companion for your projects? Performance without limits: With the 8th generation Intel® Whiskeylake Core™ i3 8145U processor (optional i5/i7), the ALLNET AIO PC offers impressive performance for all your requirements. Generous Memory: Supports DDR4 memory with a capacity of up to 32GB and offers a generous 128GB internal storage for all your data and applications. Robust and reliable: The fanless design ensures a long service life and minimizes downtime, while the IP65 rating protects the panel from dust and moisture - ideal for harsh environments. Versatile Connectivity: Enjoy a variety of I/O ports to easily integrate your devices and peripherals. Ease of Use: The ALLNET AIO PC supports Win10 and Linux operating systems and offers a clear 8 ohm 3 watt speaker for an immersive audio experience. Be ready for the next level of touchscreen PC technology - choose the ALLNET AIO PC for highest Performance, reliability and quality. Take your project to the next level and experience the future of touchscreen technology!
Please note! A license for Windows is not included. Download system drivers:

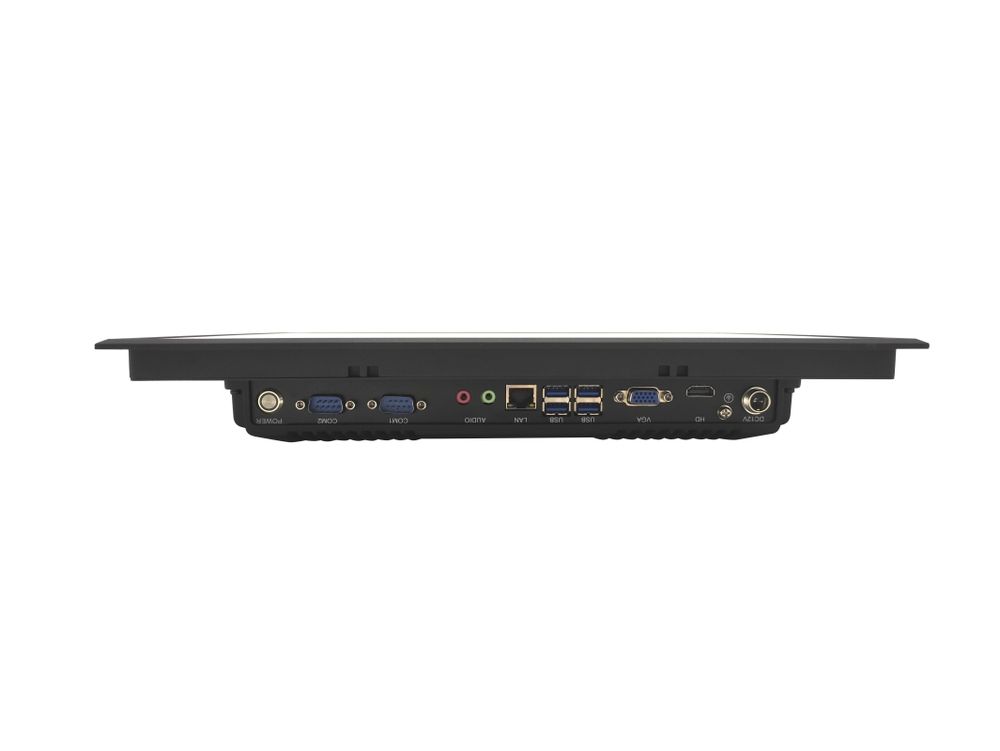

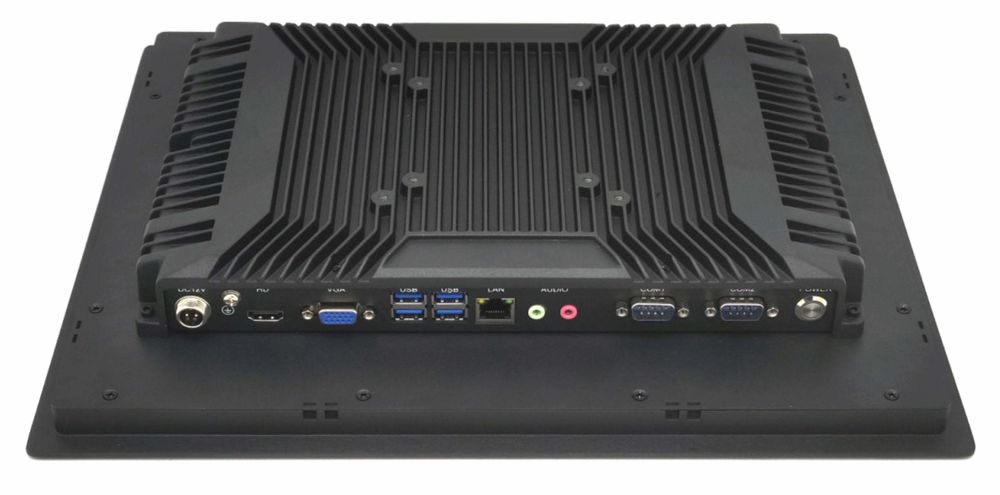

Optional wall bracket see accessories!! Display Display Screen 38,1 cm ( 15 inch ) LCD Resolution 1024x768 Brightness 350 cd/m2 Contrast 1000:01 Touch Screen Multi-Point Capacitive touch Performance Chipset Intel® WHISKEYLAKE CORE ™ i3 8145U RAM Board 8GB LPDDR4 memory Hardware Monitor Voltage, CPU, TEMP Watchdog Timer Support hardware reset function (256 levels, 0~255 seconds) Storage M.2, 128GB, up to 512GB Power Power Supply standard 12V/5A adapter Operating system O/S Windows10/Linux I/O Port USB 4*USB3.0 Ethernet 1x RJ45 Gigabit network interface COM 2x RS232 Audio 1*Line-out, 1*Mic-in Display 1*HD+1*VGA Mini PCIE 1*mini pcie (wifi/bt 2.4/5GHz) GPIO no Environmental Anti-vibration 5- 17Hz/1.0mm amplitude 19-200Hz/1.0g acceleration Anti-shock 10g acceleration, 11ms duration IP Level Front panel IP65 Reliability MTBF=50000h MTTR=0.5h Operating Temperature minus 10°C - up to +60°C with ventilation Storage Temperature - 20°C to +70°C Operating Humidity 95% @40°, non-condensing Mechanical Dimensions 376mm x 299.5mm x 55mm Mounting size VESA mounting: 100*100mm Embedded installation: 357mm x 280.5mm Material Fanless High-strength and elegant Al-alloy panel Weight 4.0kg (NW) / 4.5kg (GW) Color Black
