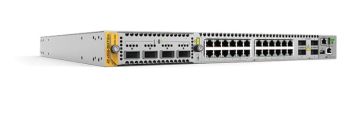

Allied Telesis AT-X950-28XTQM-B05 ADV LAYER 3 SWITCH QSFP+/QSFP28
|
21.646,31 EUR 21.711,22 EUR |
|
|
( 25.759,11 EUR incl. VAT ) ≈ £18,053.02 | ≈ $24,178.93 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 253378 |
| Mfg Part No: | AT-X950-28XTQM-B05 |
| UPC/EAN: | 0767035215730 |
| Weight: | 0 kg |
| Type: | CPNT |
Product information for Allied Telesis AT-X950-28XTQM-B05:
| Certificates | |
| Certification | UL, cUL, TUV |
| Data transmission | |
| Switching capacity | 1920 Gbit/s |
| Forwarding rate | 1190 Mpps |
| MAC address table | 96000 entries |
| Jumbo frames | 10000 |
| Packet buffer memory | 16 MB |
| Static route | |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Electromagnetic compatibility | EN55032 class A, FCC class A, VCCI class A |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 8517.62.0050 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3+ |
| Quality of Service (QoS) support | |
| Web-based management | |
| Traffic shaping | |
| ARP inspection | |
| System event log | |
| Multicast features | |
| Multicast MAC address table | 8000 entries |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1ad, IEEE 802.1v, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| Virtual LAN features | Policy-based VLAN, Stacked VLAN |
| Number of VLANs | 4000 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3050 m |
| Heat dissipation | 871.1 BTU/h |
| Packaging data | |
| Package weight | 10.9 kg |
| Performance | |
| Internal memory | 4000 MB |
| Flash memory | 4000 MB |
| Noise level | 61.9 dB |
| Export Control Classification Number (ECCN) | 5A992C |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| QSFP+ module slots quantity | 4 |
| Power | |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Power consumption (max) | 255.3 W |
| Power supply included | |
| Redundant power supply (RPS) support | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Protocols | |
| Routing protocols | BGP, BGP4, IP, OSPF, RIP, RIP-2, RIPng |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL) |
| GARP VLAN Registration Protocol (GVRP) | |
| Security | |
| DHCP features | DHCPv6 client, DHCPv6 relay |
| Security algorithms | EAP, HTTPS, MD5, PEAP, SSH, SSH-2, SSL/TLS, TLS, TTLS |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| SSH/SSL support | |
| Loop protection | |
| BPDU filtering/protection | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 445 mm |
| Height | 44 mm |
| Weight | 7.26 kg |
Questions & answers
What is the delivery time of Allied Telesis AT-X950-28XTQM-B05 ADV LAYER 3 SWITCH QSFP+/QSFP28?
The article Allied Telesis AT-X950-28XTQM-B05 ADV LAYER 3 SWITCH QSFP+/QSFP28 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-X950-28XTQM-B05 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Allied Telesis AT-X950-28XTQM-B05 ADV LAYER 3 SWITCH QSFP+/QSFP28 always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-X950-28XTQM-B05 ADV LAYER 3 SWITCH QSFP+/QSFP28 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
