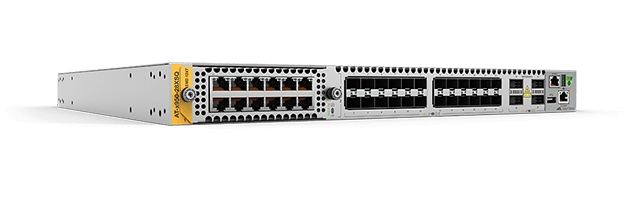

Allied Telesis AT-X950-28XSQ-B01 ADV LAYER 3 SWITCH SFP+ DUAL
|
13.896,53 EUR 13.896,53 EUR |
|
|
( 16.536,87 EUR incl. VAT ) ≈ £11,784.26 | ≈ $15,578.01 plus delivery charges: 148,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1105579 |
| Mfg Part No: | AT-X950-28XSQ-B01 |
| UPC/EAN: | 0767035215730 |
| Weight: | 10.94 kg |
| Type: | CPNT |
Product information for Allied Telesis AT-X950-28XSQ-B01:
| Certificates | |
| Certification | EN55024, EN61000-3-2 UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950 UL, cUL, TUV RoHS |
| Data transmission | |
| Switching capacity | 1920 Gbit/s |
| Forwarding rate | 1190 Mpps |
| MAC address table | 96000 entries |
| Latency (10 Gbps) | 0.8 µs |
| Jumbo frames | 10000 |
| Packet buffer memory | 16 MB |
| Jumbo frames support | |
| Design | |
| Product colour | Grey |
| Electromagnetic compatibility | EN55032 A, FCC A, VCCI A |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Configuring Location Settings (CLI) | |
| System event log | |
| Multicast features | |
| Multicast MAC address table | 8000 entries |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3ad |
| Routing entries | 64 |
| Virtual LAN features | Private VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| 10G support | |
| Port mirroring | |
| IP routing | |
| Policy-based routing | |
| Link aggregation | |
| Spanning tree protocol | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3050 m |
| Heat dissipation | 789 BTU/h |
| Packaging data | |
| Package weight | 9.2 kg |
| Performance | |
| Memory type | DDR-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 4000 MB |
| Noise level | 63.4 dB |
| Ports & interfaces | |
| SFP+ module slots quantity | 24 |
| QSFP+ module slots quantity | 4 |
| USB 2.0 ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Power consumption (max) | 231.2 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Protocols | |
| Routing protocols | BGP, OSPF, RIP, RIP-2 |
| Security | |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCPv6 client, DHCPv6 relay, DHCPv6 server |
| Security algorithms | EAP, HTTPS, MD5, PEAP, SSH, SSH-2, SSL/TLS, TTLS |
| Authentication | MAC-based authentication, Web-based authentication |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| Loop protection | |
| BPDU filtering/protection | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 482 mm |
| Height | 44 mm |
| Weight | 7.2 kg |
Questions & answers
What is the delivery time of Allied Telesis AT-X950-28XSQ-B01 ADV LAYER 3 SWITCH SFP+ DUAL?
The article Allied Telesis AT-X950-28XSQ-B01 ADV LAYER 3 SWITCH SFP+ DUAL is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-X950-28XSQ-B01 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Allied Telesis AT-X950-28XSQ-B01 ADV LAYER 3 SWITCH SFP+ DUAL always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-X950-28XSQ-B01 ADV LAYER 3 SWITCH SFP+ DUAL if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
