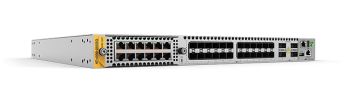

Allied Telesis AT-X950-28XSQ ALLIED Advanced Layer 3 switch with SFP+ slot x 24- QSFP/QSFP28 slots x 4- Expansion slot x 1- Dual Hotswap PSU Bays
|
12.000,10 EUR 12.010,89 EUR |
|
|
( 14.280,12 EUR incl. VAT ) ≈ £10,008.08 | ≈ $13,404.11 plus delivery charges: 100,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 752909 |
| Mfg Part No: | AT-X950-28XSQ |
| UPC/EAN: | 0767035218144 |
| Weight: | 9.45 kg |
| Type: | CPNT |
Product information for Allied Telesis AT-X950-28XSQ:
| Certificates | |
| Certification | EN55024, EN61000-3-2 UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950 UL, cUL, TUV RoHS |
| Data transmission | |
| Switching capacity | 1920 Gbit/s |
| Forwarding rate | 1190 Mpps |
| MAC address table | 96000 entries |
| Latency (10 Gbps) | 0.8 µs |
| Jumbo frames | 10000 |
| Packet buffer memory | 16 MB |
| Jumbo frames support | |
| Design | |
| Product colour | Grey |
| Electromagnetic compatibility | EN55032 A, FCC A, VCCI A |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Configuring Location Settings (CLI) | |
| System event log | |
| Multicast features | |
| Multicast MAC address table | 8000 entries |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3ad |
| Routing entries | 64 |
| Virtual LAN features | Private VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| 10G support | |
| Port mirroring | |
| IP routing | |
| Policy-based routing | |
| Link aggregation | |
| Spanning tree protocol | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3050 m |
| Heat dissipation | 789 BTU/h |
| Packaging data | |
| Package weight | 9.2 kg |
| Performance | |
| Memory type | DDR-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 4000 MB |
| Noise level | 63.4 dB |
| Ports & interfaces | |
| SFP+ module slots quantity | 24 |
| QSFP+ module slots quantity | 4 |
| USB 2.0 ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Power consumption (max) | 231.2 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Protocols | |
| Routing protocols | BGP, OSPF, RIP, RIP-2 |
| Security | |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCPv6 client, DHCPv6 relay, DHCPv6 server |
| Security algorithms | EAP, HTTPS, MD5, PEAP, SSH, SSH-2, SSL/TLS, TTLS |
| Authentication | MAC-based authentication, Web-based authentication |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| Loop protection | |
| BPDU filtering/protection | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 482 mm |
| Height | 44 mm |
| Weight | 7.2 kg |
Questions & answers
What is the delivery time of Allied Telesis AT-X950-28XSQ ALLIED Advanced Layer 3 switch with SFP+ slot x 24- QSFP/QSFP28 slots x 4- Expansion slot x 1- Dual Hotswap PSU Bays?
The article Allied Telesis AT-X950-28XSQ ALLIED Advanced Layer 3 switch with SFP+ slot x 24- QSFP/QSFP28 slots x 4- Expansion slot x 1- Dual Hotswap PSU Bays is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-X950-28XSQ to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Allied Telesis AT-X950-28XSQ ALLIED Advanced Layer 3 switch with SFP+ slot x 24- QSFP/QSFP28 slots x 4- Expansion slot x 1- Dual Hotswap PSU Bays always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-X950-28XSQ ALLIED Advanced Layer 3 switch with SFP+ slot x 24- QSFP/QSFP28 slots x 4- Expansion slot x 1- Dual Hotswap PSU Bays if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
