Allied Telesis AT-X930-52GTX ALLIED 48x10/100/1000BASE-TX ports 2x SFP+ ports 2x SFP+/Stack ports 1x Expansion-Module and dual hotswap PSU-bays

Your rating:
Average rating
product review for Allied Telesis AT-X930-52GTX ALLIED 48x10/100/1000BASE-TX ports 2x SFP+ ports 2x SFP+/Stack ports 1x Expansion-Module and dual hotswap PSU-bays
( 0 / 5 ) 0 ratings

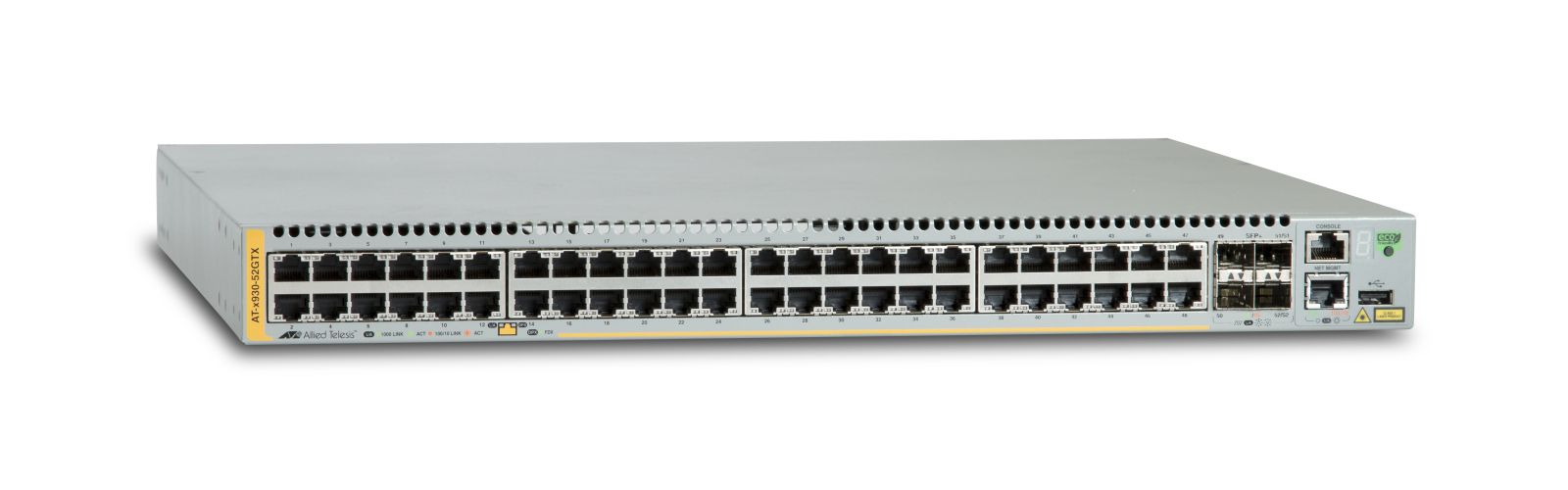

Allied Telesis AT-X930-52GTX
This image may differ from the desired article.
4.458,02 EUR
( 5.305,04 EUR incl. VAT )
≈ £3,731.36  |  ≈ $4,899.36
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Allied Telesis AT-X930-52GTX ALLIED 48x10/100/1000BASE-TX ports 2x SFP+ ports 2x SFP+/Stack ports 1x Expansion-Module and dual hotswap PSU-bays
Datasheet:file_download Download
Lieske Part No.:362660
Mfg Part No: AT-X930-52GTX
UPC/EAN: 0767035199467
Weight:7.34 kg
Type:CPNT

Product information for Allied Telesis AT-X930-52GTX:

The Allied Telesis AT-X930-52GTX is a managed Layer-3-switch of the x930 series, designed for use in distribution and core networks. It offers high performance, scalability, and integrated security features to enable reliable and efficient operation of networks in enterprises and organisations. With 48 Gigabit-Ethernet ports (10/100/1000 Mbps) and four SFP+-module slots for high-speed connections, it is designed for use in modern, high-performance network infrastructures. The rack-mountable design enables flexible integration into existing server and network environments.

Applications

The switch is suitable for use in medium to large networks, particularly in distribution layers and as a core layer. Support for Virtual Chassis Stacking (VCStack™) allows up to eight units to be linked into a single logical unit, simplifying network management and increasing availability. The stacking bandwidth reaches up to 160 Gbit/s per switch, ensuring high data rates between units. The ability to build stacks over long distances using fibre cables (VCStack LD) makes it suitable for distributed locations as well.

Functions and Features in Detail

The AT-X930-52GTX features a comprehensive range of functions. It supports Quality of Service (QoS) to prioritise critical data streams such as VoIP or video transmissions. Traffic classification enables precise control of data traffic. ARP inspection and 802.1x RADIUS authentication provide protection against unauthorised access and network attacks. VLAN support with up to 4094 VLANs and features such as Private VLAN allow fine-grained network segmentation. Port mirroring is useful for network monitoring and diagnostics.

Technology Explained Simply

The routing/switching capacity is 336 Gbit/s, ensuring high throughput for internal data traffic within the switch. The forwarding rate is 250 Mpps (millions of packets per second), indicating the switch’s ability to process data packets quickly. The MAC address table holds 64,000 entries, sufficient to manage a large number of devices in the network. The routing entries total 2000, indicating the maximum number of routes in the routing table. Support for IEEE 802.3ad (Link Aggregation) allows combining multiple physical connections into a single logical one to increase bandwidth and create redundancy. Spanning tree protocols (IEEE 802.1D, 1w, 1s) prevent loops in the network and ensure a stable topology.

Compatibility and Accessories

The switch is equipped with SFP+-module slots for 10-Gigabit-Ethernet connections. The expansion module support feature allows installation of additional modules to extend functionality. The Allied Telesis Management Framework (AMF) enables central management of network devices, including integration of third-party devices such as IP phones or surveillance cameras via AMF Guestnode. The Wireless Manager function allows management of Allied Telesis TQ-series wireless access points directly from the switch. Support for OpenFlow v1.3 makes the switch suitable for Software-Defined Networking (SDN).

Mounting and Installation

The switch is designed for rack mounting and fits into standard 19-inch racks. Stackability via VCStack™ enables flexible scaling of the network infrastructure. The dual, hot-swappable power supplies allow maintenance-friendly replacement without network downtime. LED indicators support visual monitoring of operational status.

Operational Advantages

Energy efficiency is achieved through support for Energy Efficient Ethernet (EEE), which automatically reduces power consumption when no data traffic occurs on a port. The power consumption in standard operation is 95 W. The operating temperature ranges from 0 to 50 °C, enabling use in typical indoor environments. The noise level is 39.7 dB, ensuring quiet operation in office environments. The firmware is upgradable, allowing adaptation to new requirements and security updates. Safety certifications include UL60950-1, EN60950-1 and others, confirming compliance with international safety standards.

Security

The switch offers comprehensive security features, including IGMP Snooping to prevent multicast overloads, DHCP server and client functions, as well as DHCPv6 relay and server. The Loop Guard function detects incorrect cable connections that could cause network loops. Tri-authentication enables multi-level authentication for endpoints to control network access.

Future-Proofing

Support for IPv6, 10-Gigabit and 40-Gigabit uplinks, and OpenFlow for SDN ensures the switch meets future requirements. Software-Defined Networking (SDN) readiness enables flexible network control and optimisation.

Design and Operating Conditions

The switch has a grey finish and is compact with a height of 44 mm. The operating altitude is up to 3048 m, allowing use in higher elevation locations. The storage temperature ranges from -25 to 70 °C, and the relative humidity during operation is 5 to 90 %, ensuring flexible deployment in various environments.

Memory and Performance

The switch features 2048 MB DDR-SDRAM and 256 MB flash memory, sufficient to store firmware, configurations, and temporary data. The heat dissipation is 323 BTU/h, ensuring effective cooling of the device under load.

Network Standards

The switch supports a wide range of IEEE network standards, including IEEE 802.1AX (Link Aggregation), IEEE 802.1Q (VLAN), IEEE 802.1p (QoS), IEEE 802.1x (Port Authentication), IEEE 802.3 (Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3ad (Link Aggregation), IEEE 802.3ae (10 Gigabit Ethernet), IEEE 802.3af/at (PoE), IEEE 802.3az (EEE), IEEE 802.3ba (10 Gigabit Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3x (Flow Control), and IEEE 802.3z (Gigabit Ethernet). 10G support is integrated, although PoE functionality is not available.

Multicast Functions

Multicast support is enabled, with a multicast MAC address table for 2000 entries, enabling efficient processing of multicast traffic.

System Event Log and MIB Support

A system event log allows recording of operational events, and MIB support (Management Information Base) is available to enable management via SNMP (Simple Network Management Protocol).

Web-Based Management

Configuration and monitoring are performed via a web-based management interface, enabling intuitive operation. Central management via the Allied Telesis Management Framework (AMF) simplifies network management and reduces complexity when controlling large networks.

Noise Level and Operation

The noise level is 39.7 dB, ensuring quiet operation in office environments. The operating temperature ranges from 0 to 50 °C, and the relative humidity during operation is 5 to 90 %, ensuring flexible deployment in various environments.

Data transmission
Switching capacity336 Gbit/s
Throughput250 Mpps
MAC address table64000 entries
Design
Product colourGrey
SafetyUL60950-1, CAN/CSA-C22.2 No.60950-1-03, EN60950-1, EN60825-1, AS/NZS60950.1, UL, cUL
Rack mountingYes
StackableYes
LED indicatorsYes
Logistics data
Harmonized System (HS) code85176990
Management features
Switch typeManaged
Switch layerL3
MIB supportY
Quality of Service (QoS) supportYes
Web-based managementYes
Traffic classificationYes
ARP inspectionYes
System event logYes
Multicast features
Multicast MAC address table2000 entries
Multicast supportYes
Network
Networking standardsIEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology100BASE-TX, 1000BASE-TX
Routing entries2000
Virtual LAN featuresPrivate VLAN
Number of VLANs4094
10G supportYes
Port mirroringYes
Full duplexYes
Policy-based routingYes
Link aggregationYes
Spanning tree protocolYes
VLAN supportYes
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m
Heat dissipation323 BTU/h
Performance
Memory typeDDR-SDRAM
Internal memory2048 MB
Flash memory256 MB
Noise level39.7 dB
Expansion module supportYes
Firmware upgradeableYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity48
SFP+ module slots quantity4
Power
AC input voltage90 - 260 V
AC input frequency47/63 Hz
Power consumption (typical)95 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Security
DHCP featuresDHCP server, DHCPv6 relay, DHCPv6 server, DHCP client
Security algorithms802.1x RADIUS
IGMP snoopingYes
Weight & dimensions
Width440 mm
Depth420 mm
Height44 mm
Weight5.1 kg


Product data sheet
Datasheet for Allied Telesis AT-X930-52GTX, EAN: 0767035199467
