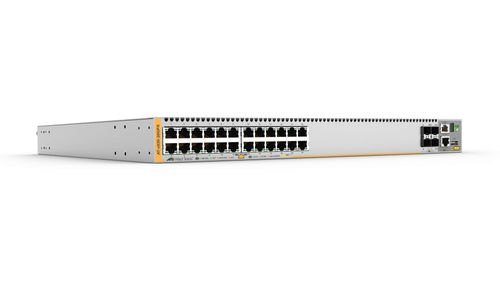

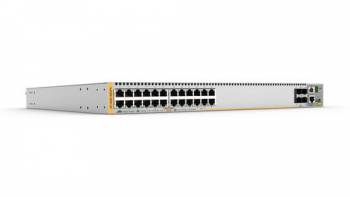

Allied Telesis AT-X930-28GPX-B05 24x10/100/1000BASE-TX POE+
|
6.643,93 EUR 6.663,83 EUR |
|
|
( 7.906,28 EUR incl. VAT ) ≈ £5,541.04 | ≈ $7,421.27 plus delivery charges: 100,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1211137 |
| Mfg Part No: | AT-X930-28GPX-B05 |
| Weight: | 7.34 kg |
| Type: | CPNT |
Product information for Allied Telesis AT-X930-28GPX-B05:
| Data transmission | |
| Switching capacity | 2.88 Gbit/s |
| Throughput | 214.3 Mpps |
| MAC address table | 64000 entries |
| Latency (1 Gbps) | 3.6 µs |
| Latency (10 Gbps) | 2.6 µs |
| Design | |
| Product colour | Grey |
| Rack mounting | |
| Stackable | |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Traffic classification | |
| ARP inspection | |
| System event log | |
| Multicast features | |
| Multicast MAC address table | 2000 entries |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-TX |
| Routing entries | 2000 |
| Virtual LAN features | Private VLAN |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Link aggregation | |
| Spanning tree protocol | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 301 BTU/h |
| Performance | |
| Noise level | 56 dB |
| Firmware upgradeable | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
| Power | |
| Power source | AC/DC |
| AC input voltage | 90 - 260 V |
| AC input frequency | 47/63 Hz |
| Power consumption (typical) | 84 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP client, DHCP server |
| Security algorithms | 802.1x RADIUS |
| IGMP snooping | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 420 mm |
| Height | 44 mm |
| Weight | 5.1 kg |
Questions & answers
What is the delivery time of Allied Telesis AT-X930-28GPX-B05 24x10/100/1000BASE-TX POE+?
The article Allied Telesis AT-X930-28GPX-B05 24x10/100/1000BASE-TX POE+ is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-X930-28GPX-B05 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Allied Telesis AT-X930-28GPX-B05 24x10/100/1000BASE-TX POE+ always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-X930-28GPX-B05 24x10/100/1000BASE-TX POE+ if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
