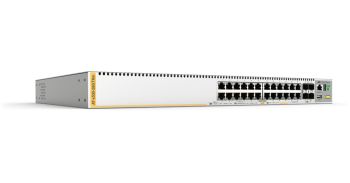

Allied Telesis AT-X530-52GPXM-30 L3 STACKABLE SWITCH 40X 10/1000
|
4.009,21 EUR 4.021,24 EUR |
|
|
( 4.770,96 EUR incl. VAT ) ≈ £3,343.68 | ≈ $4,478.29 plus delivery charges: 55,00 € |
|
| Made to order · Expected to be available from 22.11.2026info_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1047582 |
| Mfg Part No: | AT-X530-52GPXM-30 |
| UPC/EAN: | 0767035213668 |
| Weight: | 0 kg |
| Type: | CPNT |
Product information for Allied Telesis AT-X530-52GPXM-30:
| Certificates | |
| Certification | UL, cUL, UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
| Data transmission | |
| Switching capacity | 160 Gbit/s |
| Forwarding rate | 119 Mpps |
| MAC address table | 16000 entries |
| Latency (10-100 Mbps) | 7.38 µs |
| Latency (1 Gbps) | 4.05 µs |
| Latency (10 Gbps) | 1.63 µs |
| Number of queues | 8 |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Electromagnetic compatibility | EN55032 class A, FCC class A, VCCI class A, ICES-003 class A |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Traffic classification | |
| Configuring Location Settings (CLI) | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10GBASE-T |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Virtual LAN features | VLAN Identifier ( VLAN ID) |
| 10G support | |
| Port mirroring | |
| Policy-based routing | |
| Flow control support | |
| Link aggregation | |
| Spanning tree protocol | |
| Auto-negotiation | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Optical fiber | |
| Fiber ethernet cabling technology | 100BASE-X, 1000Base-X |
| Wavelength | 850 nm |
| Packaging data | |
| Package width | 563 mm |
| Package depth | 534 mm |
| Package height | 128 mm |
| Package weight | 6.8 kg |
| Performance | |
| Physical stacking (units) | 4 |
| Memory type | DDR3-SDRAM |
| Internal memory | 1000 MB |
| Flash memory | 256 MB |
| Noise level | 42 dB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 20 |
| SFP+ module slots quantity | 4 |
| USB 2.0 ports quantity | 1 |
| Power connector | AC-in jack |
| Power | |
| Power consumption (max) | 900 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay |
| Security algorithms | 802.1x RADIUS, SSH, SSH-2, SSL/TLS |
| Authentication | MAC-based authentication, Port-based authentication, Web-based authentication |
| Authentication type | IEEE 802.1x |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| Loop protection | |
| BPDU filtering/protection | |
| Password protection | |
| Weight & dimensions | |
| Width | 441 mm |
| Depth | 323 mm |
| Height | 44 mm |
| Weight | 4.8 kg |
Questions & answers
What is the delivery time of Allied Telesis AT-X530-52GPXM-30 L3 STACKABLE SWITCH 40X 10/1000?
The article Allied Telesis AT-X530-52GPXM-30 L3 STACKABLE SWITCH 40X 10/1000 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-X530-52GPXM-30 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Allied Telesis AT-X530-52GPXM-30 L3 STACKABLE SWITCH 40X 10/1000 always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-X530-52GPXM-30 L3 STACKABLE SWITCH 40X 10/1000 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
