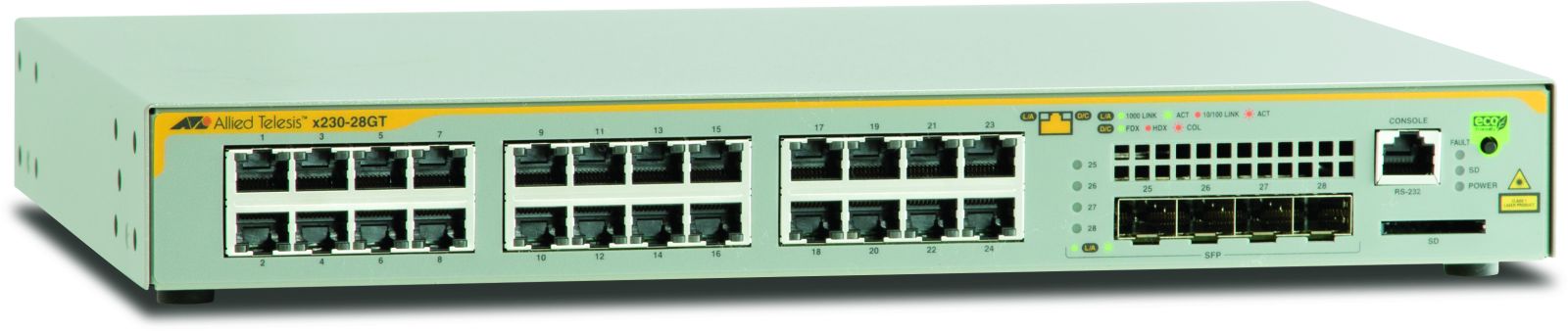

Allied Telesis AT-X230-28GT-50 ALLIED L2+ managed switch 24x 10/100/1000Mbps 4x SFP uplink slots
|
922,44 EUR |
|||||||||||
|
( 1.097,70 EUR incl. VAT ) ≈ £782.23 | ≈ $1,034.06 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 921982 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | AT-X230-28GT-50 | ||||||||||
| UPC/EAN: | 0767035208435 | ||||||||||
| Weight: | 4.202 kg | ||||||||||
| Type: | CPNT | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Allied Telesis AT-X230-28GT-50:
| Certificates | |
| Certification | UL, cUL, UL-EU, RoHS |
| Data transmission | |
| Switching capacity | 56 Gbit/s |
| Throughput | 41.7 Mpps |
| MAC address table | 16000 entries |
| Number of queues | 8 |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Safety | UL60950-1, CAN/CSA-C22.2 # 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
| Electromagnetic compatibility | EN55022 A, FCC A, VCCI A |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| MIB support | SNMP |
| Quality of Service (QoS) support | |
| Web-based management | |
| Traffic classification | |
| ARP inspection | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1v, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-FX, 100BASE-T, 1000BASE-LX, 1000BASE-SX |
| Virtual LAN features | Private VLAN |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| IP routing | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Spanning tree protocol | |
| Active link detection | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 89 BTU/h |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X, 1000BASE‑LX, 1000BASE‑SX, 1000BASE‑ZX |
| Transmission distance (max) | 80 km |
| Performance | |
| Physical stacking (units) | 32 |
| Memory type | DDR-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Noise level | 34 dB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Fiber optic connector | SFP |
| Console port | RJ-45 |
| Compatible memory cards | SD, SDHC |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2.4 A |
| Power consumption (max) | 26 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Protocols | |
| Management protocols | SNMP |
| Supported network protocols | IPv6, IPv4, DHCP, NTPv6, STP, BDPU, IP, ICMP, ARP, LLDP, SNMP, MSTP, RSTP, RIP, TLS,TTLS,PEAP, MD5, Telnet, GVRP |
| Security | |
| DHCP features | DHCP client |
| Security algorithms | 802.1x RADIUS, EAP, HTTPS, MD5, PEAP, SNMP, SSH, SSH-2, SSL/TLS |
| Authentication | MAC-based authentication, Port-based authentication |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| SSH/SSL support | |
| Loop protection | |
| BPDU filtering/protection | |
| Weight & dimensions | |
| Width | 341 mm |
| Depth | 231 mm |
| Height | 44 mm |
| Weight | 2.4 kg |
