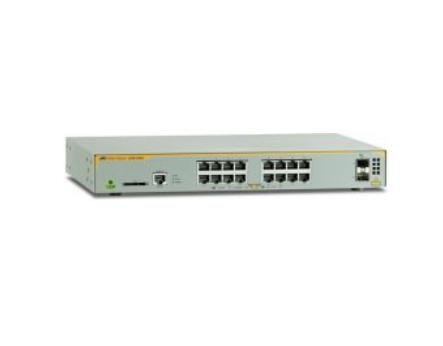

Allied Telesis AT-X230-18GT-50 ALLIED L2+ managed switch 16x 10/100/1000Mbps POE+ ports 2x SFP uplink slots 1 Fixed AC power supply
|
691,51 EUR |
|
|
( 822,90 EUR incl. VAT ) ≈ £586.40 | ≈ $775.18 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 742440 |
|---|---|
| Mfg Part No: | AT-X230-18GT-50 |
| UPC/EAN: | 0767035208381 |
| Weight: | 3.8 kg |
| Type: | CPNT |
Product information for Allied Telesis AT-X230-18GT-50:
| Certificates | |
| Certification | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL, UL-EU RoHS |
| Data transmission | |
| Switching capacity | 40 Gbit/s |
| Throughput | 26.8 Mpps |
| Number of queues | 8 |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | White |
| Rack mounting | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Traffic classification | |
| ARP inspection | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1ad, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Virtual LAN features | Stacked VLAN, Private VLAN, Tagged VLAN |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Link aggregation | |
| Broadcast storm control | |
| Spanning tree protocol | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 61 BTU/h |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X, 1000BASE‑LX, 1000BASE‑SX, 1000BASE‑ZX |
| Performance | |
| Memory type | DDR-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Noise level | 29 dB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
| Compatible memory cards | SD, SDHC |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 18 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Protocols | |
| Management protocols | SNMP, Telnet |
| Supported network protocols | IPv4 / IPv6 |
| Security | |
| DHCP features | DHCP server, DHCP client |
| Security algorithms | 3DES, 802.1x RADIUS, AES, DES, HTTPS, MD5, RSA, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| Loop protection | |
| BPDU filtering/protection | |
| Weight & dimensions | |
| Width | 341 mm |
| Depth | 231 mm |
| Height | 44 mm |
| Weight | 2.4 kg |
