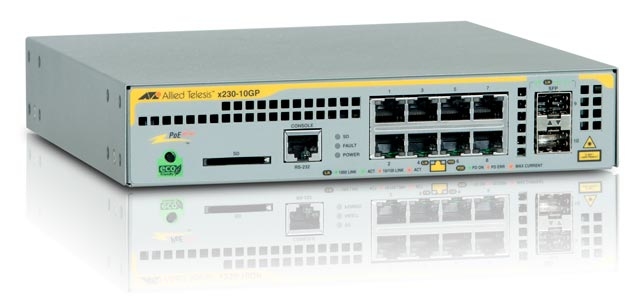

Allied Telesis AT-X230-10GP-50 ALLIED L2+ managed switch 8x 10/100/1000Mbps POE ports 2x SFP uplink slots 1 Fixed AC power supply
|
838,19 EUR 838,19 EUR |
|
|
( 997,44 EUR incl. VAT ) ≈ £710.78 | ≈ $939.61 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 711538 |
|---|---|
| Mfg Part No: | AT-X230-10GP-50 |
| UPC/EAN: | 0767035202020 |
| Weight: | 2.99 kg |
| Type: | CPNT |
Product information for Allied Telesis AT-X230-10GP-50:
| Certificates | |
| Certification | UL, cUL, UL-EU |
| Data transmission | |
| Switching capacity | 20 Gbit/s |
| Throughput | 14.9 Mpps |
| Packet buffer memory | 1.5 MB |
| Jumbo frames support | |
| Design | |
| Product colour | Grey |
| Safety | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
| Rack mounting | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | |
| Web-based management | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 2048 |
| 10G support | |
| Port mirroring | |
| Broadcast storm control | |
| Auto MDI/MDI-X | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 126 BTU/h |
| Performance | |
| Flash memory | 64 MB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
| Power connector | DC-in jack |
| Power | |
| Power consumption (typical) | 16 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCPv6 client, DHCP client |
| SSH/SSL support | |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 275 mm |
| Height | 42.5 mm |
| Weight | 2.1 kg |
