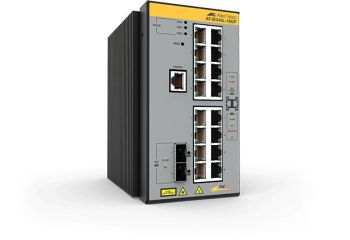

Allied Telesis AT-IE340L-18GP-80 L3 INDUSTRIAL ETHERNET SWITCH
|
1.885,19 EUR 1.890,84 EUR |
|
|
( 2.243,38 EUR incl. VAT ) ≈ £1,572.25 | ≈ $2,105.76 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1673918 |
|---|---|
| Mfg Part No: | AT-IE340L-18GP-80 |
| UPC/EAN: | 0767035217871 |
| Weight: | 2.82 kg |
| Type: | CPNT |
Product information for Allied Telesis AT-IE340L-18GP-80:
| Certificates | |
| Certification | EN 50022, EN 60715 CE, FCC, ICES, RCM, TEC, UL, VCCI RoHS, China-RoHS, WEEE |
| Data transmission | |
| Switching capacity | 36 Gbit/s |
| Forwarding rate | 26.7 Mpps |
| MAC address table | 16000 entries |
| Latency (10-100 Mbps) | 7.8 µs |
| Latency (1 Gbps) | 3.4 µs |
| Number of queues | 8 |
| Jumbo frames | 9000 |
| Packet buffer memory | 1.5 MB |
| Jumbo frames support | |
| Design | |
| Product colour | Grey |
| Housing material | Aluminium, Metal |
| International Protection (IP) code | IP30 |
| Electromagnetic compatibility | AS/NZS CISPR 32 A, CISPR 32 A, EN 55032 A, EN 61000-6-4 A, FCC 47 CFR 15 B A, ICES 003 6 A, VCCI A |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Wall mountable | |
| DIN rail mounting | |
| Logistics data | |
| Harmonized System (HS) code | 8517.62.0050 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| ARP inspection | |
| Configuring Location Settings (CLI) | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1x |
| Virtual LAN features | Private VLAN |
| Number of VLANs | 4094 |
| 10G support | |
| Spanning tree protocol | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 65 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 105.8 BTU/h |
| Performance | |
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Export Control Classification Number (ECCN) | 5A992C |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Power | |
| Power consumption (max) | 271 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 15 W |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) | |
| Protocols | |
| Routing protocols | BGP, OSPF, RIP |
| Security | |
| DHCP features | DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 server |
| Authentication | Guest VLAN |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| BPDU filtering/protection | |
| Password protection | |
| Weight & dimensions | |
| Width | 91 mm |
| Depth | 139 mm |
| Height | 153 mm |
| Weight | 2.34 kg |
