Allied Telesis AT-DMC1000/SC-50 DESK MINI MC 1000TX to SX SC

Your rating:
Average rating
product review for Allied Telesis AT-DMC1000/SC-50 DESK MINI MC 1000TX to SX SC
( 0 / 5 ) 0 ratings

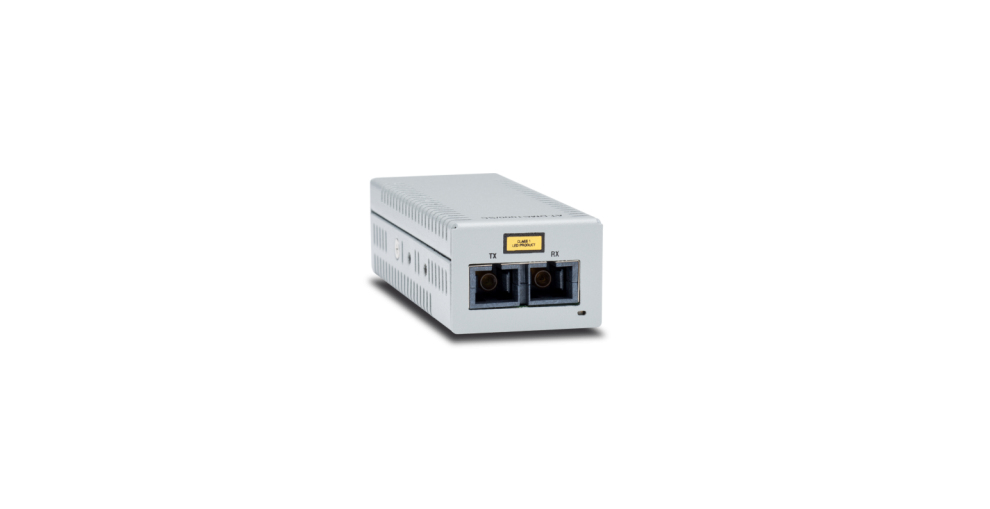

Allied Telesis AT-DMC1000/SC-50
This image may differ from the desired article.
312,19 EUR
( 371,51 EUR incl. VAT )
≈ £261.30  |  ≈ $343.10
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline
In Stock: >5 pieces
1x Allied Telesis AT-DMC1000/SC-50 DESK MINI MC 1000TX to SX SC
Datasheet:file_download Download
Lieske Part No.:443951
Mfg Part No: AT-DMC1000/SC-50
UPC/EAN: 0767035206691
Weight:0.23 kg
Type:PERP

Product information for Allied Telesis AT-DMC1000/SC-50:

The Allied Telesis AT-DMC1000/SC-50 is a compact media converter of the DMC series, converting Gigabit Ethernet connections from copper cables (1000Base-T) to fiber cables (1000Base-SX). It serves to extend networks by extending the reach of UTP networks via fiber optic cables. With a maximum transmission distance of 550 meters and a wavelength of 850 nm, it is designed for use with multi-mode fiber cables. The converter features an SC connector and is suitable for use in small to medium-sized networks where a compact design and simple installation are required.

Applications
The AT-DMC1000/SC-50 is typically used in networks where a connection between a copper and a fiber cable is required, for example, to connect switches, hubs, or PCs over longer distances. It is particularly suitable for environments where a compact, energy-efficient solution is needed, such as in offices, server rooms, or when extending existing networks. The maximum range of 550 meters enables the connection of network segments over medium distances without additional amplifiers.

Functions and Features in Detail
The converter supports Auto MDI/MDI-X, meaning it automatically detects the correct connection setting (straight or crossed) for the connected device, simplifying installation. It is transparent to IEEE 802.1Q VLAN packets, allowing it to be used in modern networks with Virtual LANs without discarding data packets. The Smart MissingLink (SML) function monitors the network connection and alerts in case of failures, enabling network administrators to respond quickly to errors. Additionally, the converter offers a Link Test function, allowing the integrity of the fiber cable connection to be checked without requiring special optical measuring equipment.

Technology Explained Simply
The converter operates with a maximum data transfer rate of 1000 Mbit/s and supports both full-duplex and half-duplex modes. The packet forwarding rate is 148,800 packets per second at 1 Gbit/s, ensuring efficient data processing. Power supply is via a DC connection, with an AC power adapter included in the delivery. Alternatively, the converter can be connected via a Micro-USB port to a laptop or PC, enabling installation without additional power supply. The operating temperature ranges from 0 to 40 °C, and the storage temperature ranges from -15 to 65 °C. Relative humidity during operation is 5 to 95 %, without condensation.

Compatibility and Accessories
The converter is designed for use with multi-mode fiber cables and uses an SC connector. The use of fiber cables enables greater reach and lower data loss compared to copper cables, especially over longer distances.

Mounting and Installation
Installation is simple: connect to a network device via a UTP cable at the RJ45 port and to a fiber cable at the SC port. The Auto-MDI/MDI-X function ensures no additional configuration is required. Power supply is either via the included AC power adapter or via a USB connection to a computer. The LED indicators on the device signal the operating status, including system status, fiber and RJ45 connection, and activity indicators.

Advantages in Operation
The AT-DMC1000/SC-50 is distinguished by its compact design, measuring only 31.8 mm wide, 91.4 mm deep, and 21.6 mm high. It consumes only 1.5 W of power, representing a significant energy saving compared to older models. The Smart Link Restoration function enables the connection to be automatically restored after a power failure or connection loss, without requiring a restart. The integrated Link Test function reduces installation and maintenance effort, as faulty connections can be checked directly on the device. Compatibility with VLAN packets makes the converter suitable for modern networks based on Virtual LANs.

Features
InternalNo
Logistics data
Harmonized System (HS) code85176990
Network
Maximum data transfer rate1000 Mbit/s
Converter input interface1000Base-T
Converter output interface1000Base-SX
Ethernet LAN data rates1000 Mbit/s
Packet forwarding rate (10 Mbps)1488000 pps
Packet forwarding rate (100 Mbps)148800 pps
Packet forwarding rate (1 Gbps)14880 pps
Duplex systemFull, Half
Cable types supportedFiber
Auto MDI/MDI-XYes
Rate limitingYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m
Packaging content
AC adapter includedYes
Performance
Maximum transfer distance550 m
Wavelength850 nm
Fiber mode structureMulti-mode
Ports & interfaces
Fiber optic connectorSC
DC-in jackYes
Weight & dimensions
Width31.8 mm
Depth91.4 mm
Height21.6 mm
Weight113.39 g


Product data sheet
Datasheet for Allied Telesis AT-DMC1000/SC-50, EAN: 0767035206691
