Allied Telesis AT-DMC1000/LC-50 DESK MINI MC 1000TX to SX LC

Your rating:
Average rating
product review for Allied Telesis AT-DMC1000/LC-50 DESK MINI MC 1000TX to SX LC
( 0 / 5 ) 0 ratings

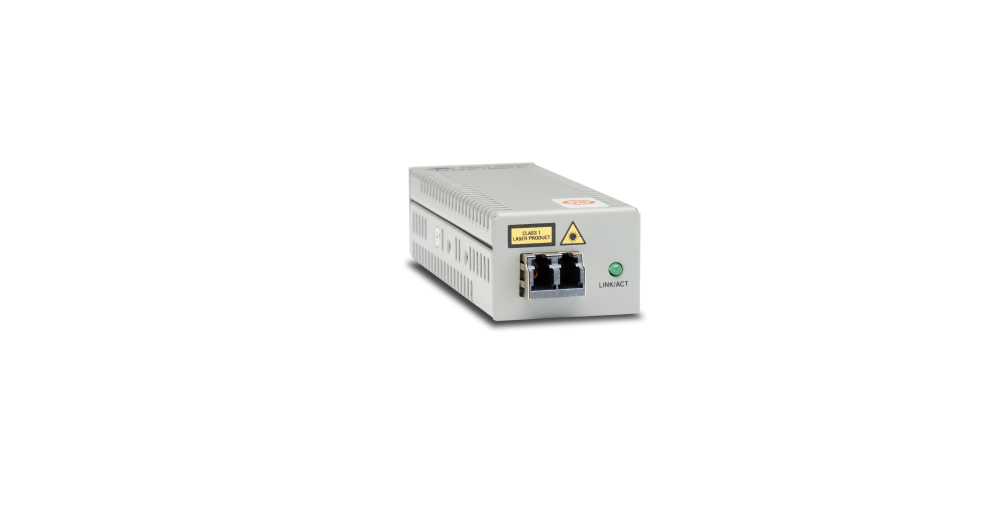

Allied Telesis AT-DMC1000/LC-50
This image may differ from the desired article.
312,19 EUR
( 371,51 EUR incl. VAT )
≈ £261.30  |  ≈ $343.10
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Allied Telesis AT-DMC1000/LC-50 DESK MINI MC 1000TX to SX LC
Datasheet:file_download Download
Lieske Part No.:451730
Mfg Part No: AT-DMC1000/LC-50
UPC/EAN: 0767035207056
Weight:0.23 kg
Type:PERP

Product information for Allied Telesis AT-DMC1000/LC-50:

The Allied Telesis AT-DMC1000/LC-50 is a compact media converter of the DMC series, designed for connecting 1000Base-T networks via 1000Base-SX fiber cables. It enables the extension of Ethernet networks over fiber optic cable, with a maximum transmission distance of up to 550 meters. The device is implemented as a PERP (Passive Ethernet Repeater/Passive Media Converter) and serves as a bridge between copper and fiber optic cables, increasing the reach of Gigabit Ethernet connections. The compact design with a width of 31.8 mm, depth of 91.4 mm, and height of 21.6 mm makes the converter particularly suitable for space-saving installations.

Applications

The media converter is designed for use in Gigabit Ethernet networks, particularly in environments where extending the reach beyond copper cables is required. It is suitable for office and corporate networks, where fiber optic cables are used to bridge longer distances or to separate network segments. Support for IEEE 802.1Q VLAN packets enables integration into modern networks that utilize Virtual LANs. The maximum transmission distance of 550 meters with multi-mode fiber at a wavelength of 850 nm makes it especially suitable for indoor and building cabling applications.

Functions and Features in Detail

The converter features an Auto MDI/MDI-X function, which automatically adapts the connection to the connected device type (e.g., switch, hub, or PC), simplifying installation. The rate limiting function allows targeted control of data transmission rate. The packet forwarding rate is 1,488,000 pps at 1000 Mbit/s, ensuring efficient data processing. The Smart MissingLink (SML) function monitors the network connection and signals failures, enabling network administrators to respond quickly to disruptions. The Smart Link Restoration function enables automatic re-establishment of the connection after power failure or connection loss, without requiring a restart.

Technology Explained Simply

The converter converts electrical signals from a 1000Base-T copper cable (RJ45) into optical signals for a 1000Base-SX fiber optic cable. Transmission occurs over multi-mode fiber at a wavelength of 850 nm, optimized for short to medium distances indoors. The maximum range of 550 meters is achieved when using appropriate fiber cables. Power supply is via a DC connector, and the delivery includes the AC power adapter. Alternatively, the device can be connected via a Micro-USB port to a computer or laptop, enabling installation without additional power supply.

Compatibility and Accessories

The converter is compatible with LC connectors for the optical interface. Support for IEEE 802.1Q VLAN packets ensures use in modern networks. Network connection is made via a standard UTP cable at the RJ45 interface.

Mounting and Installation

Installation is simple: connect to a UTP cable at the RJ45 interface and to a fiber optic cable at the LC interface. The Auto MDI/MDI-X function allows direct connection without additional switching. The integrated Link Test function enables checking the integrity of the fiber connection without requiring special measuring equipment. Status LEDs indicate operational status (System, Fiber, RJ45) and allow for quick diagnosis.

Advantages in Operation

The converter features low power consumption of 1.5 watts, representing significant energy savings compared to older models. The compact design and simple installation reduce installation effort. Integrated functions such as Smart MissingLink and Smart Link Restoration enhance network security and reduce downtime. Support for VLAN packets ensures compatibility with modern network architectures. The operating temperature ranges from 0 to 40 °C, and the storage temperature ranges from -15 to 65 °C, making the device suitable for indoor use. Relative humidity during operation is 5 to 95 %, without condensation, and storage humidity is also 5 to 95 %.

Features
InternalNo
Logistics data
Harmonized System (HS) code85176990
Network
Maximum data transfer rate1000 Mbit/s
Converter input interface1000Base-T
Converter output interface1000Base-SX
Ethernet LAN data rates1000 Mbit/s
Packet forwarding rate (10 Mbps)1488000 pps
Packet forwarding rate (100 Mbps)148800 pps
Packet forwarding rate (1 Gbps)14880 pps
Duplex systemFull, Half
Cable types supportedFiber
Auto MDI/MDI-XYes
Rate limitingYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m
Packaging content
AC adapter includedYes
Performance
Maximum transfer distance550 m
Wavelength850 nm
Fiber mode structureMulti-mode
Ports & interfaces
Fiber optic connectorLC
DC-in jackYes
Weight & dimensions
Width31.8 mm
Depth91.4 mm
Height21.6 mm
Weight113.39 g


Product data sheet
Datasheet for Allied Telesis AT-DMC1000/LC-50, EAN: 0767035207056

Questions & answers

What is the delivery time of Allied Telesis AT-DMC1000/LC-50 DESK MINI MC 1000TX to SX LC?

The article Allied Telesis AT-DMC1000/LC-50 DESK MINI MC 1000TX to SX LC is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-DMC1000/LC-50 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Allied Telesis AT-DMC1000/LC-50 DESK MINI MC 1000TX to SX LC always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-DMC1000/LC-50 DESK MINI MC 1000TX to SX LC if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
