Allied Telesis AT-DMC100/ST-50 DESK MINI MC 100TX to 100FX ST

Your rating:
Average rating
product review for Allied Telesis AT-DMC100/ST-50 DESK MINI MC 100TX to 100FX ST
( 0 / 5 ) 0 ratings

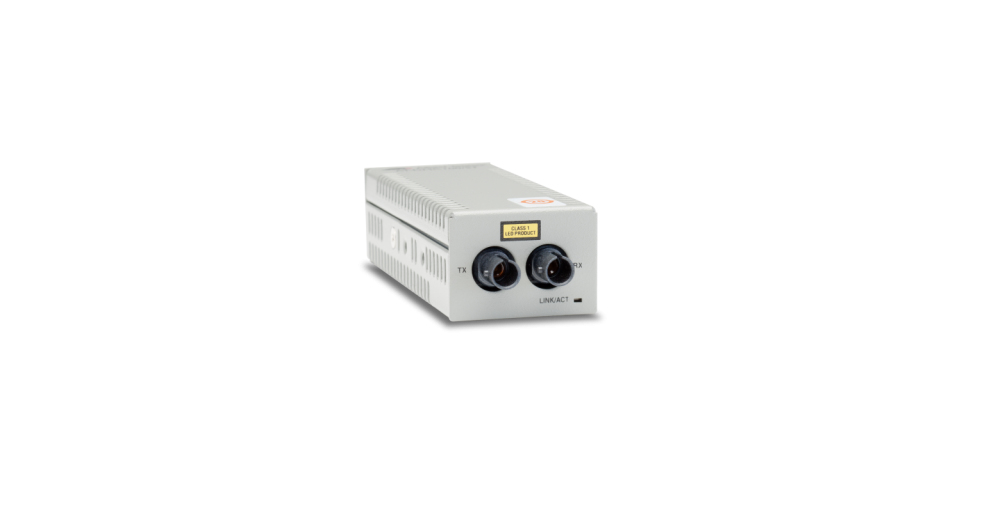

Allied Telesis AT-DMC100/ST-50
This image may differ from the desired article.
186,87 EUR
( 222,38 EUR incl. VAT )
≈ £156.41  |  ≈ $205.37
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Allied Telesis AT-DMC100/ST-50 DESK MINI MC 100TX to 100FX ST
Datasheet:file_download Download
Lieske Part No.:728246
Mfg Part No: AT-DMC100/ST-50
UPC/EAN: 0767035206653
Weight:0.23 kg
Type:PERP

Product information for Allied Telesis AT-DMC100/ST-50:

The Allied Telesis AT-DMC100/ST-50 is a compact media converter of the DMC series, specifically designed for connecting 100Base-TX networks via 100Base-FX fibre cables. It enables the transmission of Ethernet data over multi-mode fibre cables with a wavelength of 1310 nm and a maximum reach of 2000 metres. The device is designed for use in networks with 100 Mbit/s and serves as a bridge between copper and fibre cable networks, thereby extending the reach of existing LAN infrastructures.

Applications
This converter is suitable for use in building networks, industrial facilities, and inter-building connections, where stable, long-distance data transmission over fibre cables is required. Due to its compact design and the ability to connect it directly to a laptop or PC via USB, it is particularly suitable for temporary or mobile installations. The use of ST connectors makes it compatible with common fibre cable systems in enterprise environments.

Functions and Features in Detail
The AT-DMC100/ST-50 supports Auto MDI/MDI-X, meaning it automatically detects and configures the correct connection type (straight or crossover) without requiring a special cable. This simplifies installation and reduces error sources. Additionally, it features Smart MissingLink (SML), a function that monitors network connections and issues an alert in case of failure, speeding up troubleshooting. The Smart Link Restoration function allows the connection to be automatically re-established after a power failure or connection loss, without requiring a device restart.

Technology Explained Simply
The converter operates at a maximum data rate of 100 Mbit/s and supports both full- and half-duplex mode. The packet forwarding rate at 100 Mbit/s is 148,800 packets per second (pps), ensuring efficient data processing. The use of multi-mode fibre with a wavelength of 1310 nm enables stable transmission over long distances. Power supply is via a DC connector, with an AC power adapter included in the delivery scope. Alternatively, the device can be connected to a computer via USB, enabling installation without additional power supply.

Compatibility and Accessories
The converter is transparent to IEEE 802.1Q VLAN packets, making it suitable for modern networks with Virtual LANs. It is compatible with ST optical connector and can be connected to fibre cables using this connector type.

Mounting and Installation
Installation is straightforward: the converter is connected via a UTP cable to a network device (e.g. switch, router, or PC) and via the fibre cable to the target device. The integrated Link Test function allows verification of the fibre connection integrity without requiring special optical measuring equipment. Status LEDs indicate the operating state, with the SYS LED showing system operation, the Fiber LED indicating the fibre link, and the RJ45 LEDs showing the status of the copper connection.

Operational Advantages
The AT-DMC100/ST-50 features low power consumption of 1.5 watts, resulting in over 50 % higher energy efficiency compared to older models. Its compact design and flexible power supply via USB or power adapter reduce installation costs and required cabling. The integrated monitoring and restoration functions ensure higher availability and reduce operational downtime.

Operating Conditions
The device can be operated at temperatures from 0 to 40 °C and relative humidity from 5 to 95 %. Storage is possible at temperatures from -15 to 65 °C and humidity from 5 to 95 %. The maximum operating altitude is 3048 metres above sea level.

Delivery Contents
An AC power adapter is included in the delivery scope.

Features
InternalNo
Logistics data
Harmonized System (HS) code85176990
Network
Maximum data transfer rate100 Mbit/s
Converter input interface100Base-TX
Converter output interface100Base-FX
Ethernet LAN data rates100 Mbit/s
Packet forwarding rate (10 Mbps)1488000 pps
Packet forwarding rate (100 Mbps)148800 pps
Packet forwarding rate (1 Gbps)14880 pps
Duplex systemFull, Half
Cable types supportedFiber
Auto MDI/MDI-XYes
Rate limitingYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m
Packaging content
AC adapter includedYes
Performance
Maximum transfer distance2000 m
Wavelength1310 nm
Fiber mode structureMulti-mode
Ports & interfaces
Fiber optic connectorST
DC-in jackYes
Weight & dimensions
Width31.8 mm
Depth91.4 mm
Height21.6 mm
Weight113.39 g


Product data sheet
Datasheet for Allied Telesis AT-DMC100/ST-50, EAN: 0767035206653

Questions & answers

What is the delivery time of Allied Telesis AT-DMC100/ST-50 DESK MINI MC 100TX to 100FX ST?

The article Allied Telesis AT-DMC100/ST-50 DESK MINI MC 100TX to 100FX ST is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-DMC100/ST-50 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Allied Telesis AT-DMC100/ST-50 DESK MINI MC 100TX to 100FX ST always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-DMC100/ST-50 DESK MINI MC 100TX to 100FX ST if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
