Allied Telesis AT-DMC100/SC-50 DESK MINI MC 100TX to 100FX SC

Your rating:
Average rating
product review for Allied Telesis AT-DMC100/SC-50 DESK MINI MC 100TX to 100FX SC
( 4.7 / 5 ) 3 ratings

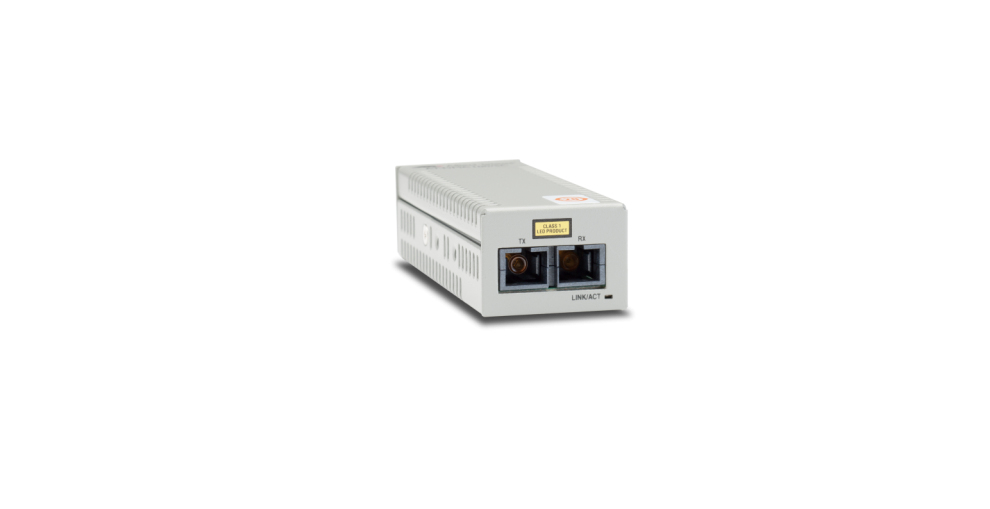

Allied Telesis AT-DMC100/SC-50
This image may differ from the desired article.
186,87 EUR
( 222,38 EUR incl. VAT )
≈ £156.41  |  ≈ $205.37
plus delivery charges: 55,00 €
Made to order · Expected to be available from 22.11.2026info_outline
1x Allied Telesis AT-DMC100/SC-50 DESK MINI MC 100TX to 100FX SC
Datasheet:file_download Download
Lieske Part No.:139060
Mfg Part No: AT-DMC100/SC-50
UPC/EAN: 0767035206615
Weight:0.23 kg
Type:PERP

Product information for Allied Telesis AT-DMC100/SC-50:

The Allied Telesis AT-DMC100/SC-50 is a compact media converter of the DMC series, enabling the connection between a 100Base-TX network via UTP cable and a 100Base-FX fibre network. It is designed to extend existing Ethernet networks over longer distances, with data transmission occurring over multimode fibre at a wavelength of 1310 nm. The converter is rated for a maximum transmission distance of 2000 metres and supports a data rate of 100 Mbit/s. It is specifically designed for use in networks where a cost-effective and reliable connection between copper and fibre cables is required.

Applications

The AT-DMC100/SC-50 is suitable for use in small to medium-sized networks, particularly in environments where extending the range via copper cables is no longer sufficient. Typical applications include connecting network segments in buildings distributed across multiple floors or rooms, or connecting remote devices such as camera surveillance systems, access control systems, or industrial sensors. The compact design allows for flexible placement, such as in enclosures, on walls, or at workstations.

Functions and Features in Detail

The converter features an SC connector for the optical fibre and an RJ45 port for the UTP cable. It supports Auto MDI/MDI-X, allowing connection to a PC, switch, or hub without requiring additional cable reconfiguration. The packet forwarding rate at 100 Mbit/s is 148,800 packets per second (pps), ensuring efficient data processing. The Smart MissingLink (SML) function monitors the network connection and signals failures, enabling network administrators to respond quickly to disruptions. Additionally, the converter includes a Link Test function, which allows checking the integrity of the fibre link without requiring special test equipment.

Technology Explained Simply

The converter operates as a transparent bridge between two network media: it receives data via the UTP cable (100Base-TX) and converts it into optical signals transmitted over multimode fibre (100Base-FX). The wavelength of 1310 nm is typical for multimode fibre and enables stable transmission over the specified distance. The maximum range of 2000 metres is achieved under ideal conditions, with actual range depending on fibre quality and installation. Power supply is via a DC connection, with an AC power adapter included in the delivery. Alternatively, the converter can be powered via USB cable connected to a computer or laptop, simplifying installation.

Compatibility and Accessories

The AT-DMC100/SC-50 is compatible with IEEE 802.1Q VLAN packets, making it suitable for modern networks. It supports both full- and half-duplex modes and is transparent for forwarding network packets. The use of multimode fibre with SC connector is required for operation.

Mounting and Installation

Installation is performed by simply connecting the RJ45 cable to the UTP port and the fibre cable to the SC connector. Power supply can be via the included AC power adapter or via USB. Status LEDs on the device indicate operational status: the SYS LED indicates system operation, the Fiber LED indicates the fibre link, and the RJ45 LED indicates the status of the copper connection, including duplex mode and collisions. No special configuration is required, as the converter automatically detects connection settings.

Operational Advantages

The converter features low power consumption of 1.5 W, resulting in significant energy savings compared to older models. The compact design and simple installation reduce installation effort. Integrated functions such as Smart MissingLink and Link Test enable efficient network monitoring and fault diagnosis. Support for VLAN packets ensures compatibility with modern network architectures. Operating temperature ranges from 0 to 40 °C, and storage temperature from -15 to 65 °C, making the converter suitable for use in industrial environments.

Features
InternalNo
Logistics data
Harmonized System (HS) code85176990
Network
Maximum data transfer rate100 Mbit/s
Converter input interface100Base-TX
Converter output interface100Base-FX
Ethernet LAN data rates100 Mbit/s
Packet forwarding rate (10 Mbps)1488000 pps
Packet forwarding rate (100 Mbps)148800 pps
Packet forwarding rate (1 Gbps)14880 pps
Duplex systemFull, Half
Cable types supportedFiber
Auto MDI/MDI-XYes
Rate limitingYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m
Packaging content
AC adapter includedYes
Performance
Maximum transfer distance2000 m
Wavelength1310 nm
Fiber mode structureMulti-mode
Ports & interfaces
Fiber optic connectorSC
DC-in jackYes
Weight & dimensions
Width31.8 mm
Depth91.4 mm
Height21.6 mm
Weight113.39 g


Product data sheet
Datasheet for Allied Telesis AT-DMC100/SC-50, EAN: 0767035206615

Questions & answers

What is the delivery time of Allied Telesis AT-DMC100/SC-50 DESK MINI MC 100TX to 100FX SC?

The article Allied Telesis AT-DMC100/SC-50 DESK MINI MC 100TX to 100FX SC is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-DMC100/SC-50 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Allied Telesis AT-DMC100/SC-50 DESK MINI MC 100TX to 100FX SC always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-DMC100/SC-50 DESK MINI MC 100TX to 100FX SC if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
