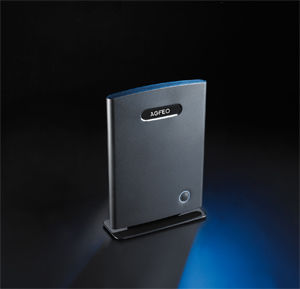

Agfeo 6101730 DECT IP base pro black content_copy

The Agfeo DECT IP-Basis pro is a base station for DECT-IP systems, connected to an Agfeo communication system via an existing network infrastructure. It serves as a central interface for DECT-IP handsets and enables the formation of multi-cell systems. The base station is suitable for use in ES and HyperVoice systems as well as in HyperFonie instances. It features an updated hardware design and supports Mixed Mode, ensuring full compatibility for expanding existing multi-cell systems (from two DECT IP bases). Wall mounting is simplified, facilitating installation in various environments.

Multi-cell systems can be built with the DECT IP-Basis pro, with system limits of up to 254 bases, 10 SIP registrars, and up to 1000 Agfeo DECT IP devices. The actual number of handsets depends on the preceding communication infrastructure. The base station is prepared for future expansion to up to 4000 bases and 16,000 DECT IP endpoints, with implementation dependent on the SIP registrar software used. The handover function enables seamless call transfer between cells, ensuring continuous communication. Additionally, the base station supports the use of repeaters (optional, max. 100) to increase coverage range.

The base station offers a private and central phonebook, where contacts can be stored locally on the device or retrieved via a CTI server. CTI support for registered DECT IP handsets and headsets (Type IP / Infinity) enables integration into call center or communication solutions. Display of contact and door images on handsets is possible, although not available for the DECT 33 IP, DECT 44 IP, and DECT Headset IP / Infinity models.

Connection is via LAN, with power supplied through PoE (Power over Ethernet). This reduces the need for separate power cables and simplifies installation. The base station supports DECT and LAN system synchronization, enabling consistent system control. TLS encryption is also prepared, with usage dependent on the SIP registrar software used. Function extensions will be provided with future DECT system versions.

The base station is black and has a compact design with dimensions of 140 mm (height), 140 mm (width), and 35 mm (depth). Mounting is either on a desk or on the wall. The status light indicates the current operating state. The base station is designed for indoor use and meets the requirements of ear category 6 (small IT and telecommunications equipment).

General
Product type	DECT base station
Colour	Black
Mounting	Desktop mounting, wall mounting
Connection	LAN
Current supply	PoE
System limits	max. 254 bases, 10 SIP registrations, up to 1000 AGFEO DECT IP devices
Handover function	Seamless connection handover
Repeater support	max. 100
Central administration	without separate DECT Master/Manager
Phone book	Private and central phonebook
CTI support	for registered DECT IP handsets and headsets (Type IP / Infinity)
Contact and door image display	supported, not for DECT 33 IP, DECT 44 IP, DECT Headset IP / Infinity
Expandability	prepared for up to 4000 bases and 16,000 DECT IP endpoints
Synchronisation	DECT- and LAN system synchronisation
Encoding	TLS encryption (depending on SIP registrar)
Status indicator	Status indicator for operating condition
Mixed Mode	Full compatibility with expansion of existing multi-cell systems (from 2 DECT IP bases)

---
