Advantech PPC-3100-RAE content_copy

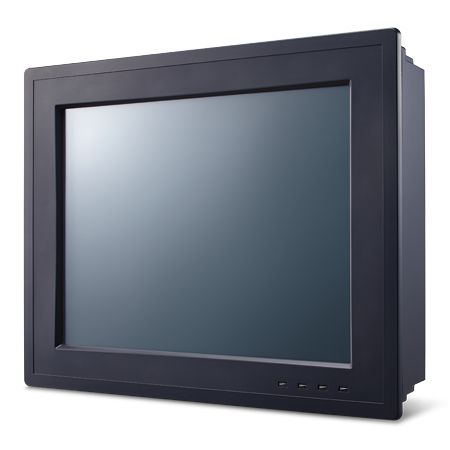

The Advantech PPC-3100-RAE is a fanless panel PC with a 10.4-inch TFT SVGA LED display, designed for use in industrial environments. The device features an embedded Intel® Atom™ processor D2550 with a clock speed of 1.86 GHz and supports up to 4 GB DDR3 1066 SDRAM as system memory. The display is equipped with a resistive touchscreen, enabling robust operation even under dirty or moist conditions. The LED backlight includes an automatic dimming function that adjusts brightness according to ambient light, thereby reducing energy consumption.

Fanless design ensures disturbance-free and quiet operation, making the device particularly suitable for applications where noise generation or dust accumulation must be avoided. The low power consumption supports efficiency and makes the panel PC interesting for applications with limited power supply. The integrated hardware enables the use of an internal SATA 6,3 cm ( 2,5 inch ) hard drive as well as an mSATA socket, allowing for flexible storage solutions.

Applications include industrial control systems, machine operation, process visualization, and other applications requiring a compact, robust, and low-maintenance user interface. The combination of fanless operation, robust touchscreen, and industrial design makes the device suitable for use in factories, logistics centers, or outdoor environments, provided environmental conditions meet technical specifications.

Functions and equipment in detail include the ability to configure the COM1 and COM2 interfaces via BIOS to different pin assignments (RI/5V/12V). Additionally, the serial interfaces RS-232, RS-422, and RS-485 can also be configured via BIOS, enabling flexible connection to various industrial devices and sensors. The integrated graphics and networking functions are part of the processor and require no additional components.

Technology explained simply shows that the Intel® Atom™ processor D2550 is an energy-efficient CPU developed for embedded systems. The 1.86 GHz clock speed provides sufficient computing power for typical industrial applications, such as displaying user interfaces, data processing, or communication with other devices. The DDR3 memory architecture at 1066 MHz offers sufficient bandwidth for applications that are not extremely compute-intensive.

Compatibility and accessories refers to support for SATA 6,3 cm ( 2,5 inch ) hard drives and mSATA modules, which can be used as internal storage media. The serial interfaces enable connection to a wide range of peripheral devices, such as sensors, printers, or industrial controls. BIOS configuration of the COM interfaces allows adaptation to specific application requirements.

Mounting and installation typically involves direct mounting into an operator console or on a wall, with the device designed for industrial environments. Installation does not require special tools, but adherence to electrical and mechanical specifications is important to ensure stable operation.

Operational advantages lie in the low-maintenance design due to the fanless construction, energy efficiency, and robust user interface. The automatic dimming function of the display reduces power consumption and extends the lifespan of the backlight. The flexible configuration of serial interfaces via BIOS allows adaptation to different requirements without hardware modifications.

General
Screen size	10,4 "
Fanless

---
