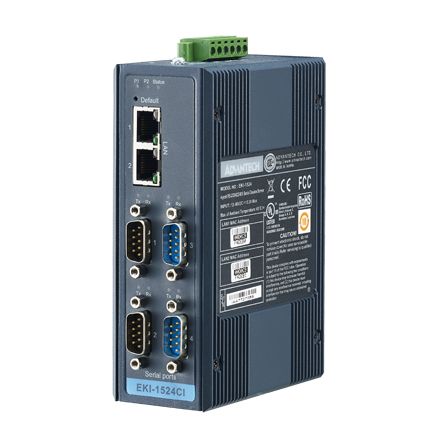

Advantech EKI-1524CI-BE - 4-port Serial Device Server content_copy

The Advantech EKI-1524CI-BE is a 4-port RS-422/485 Serial Device Server designed for network integration of serial devices. It enables the connection of serial peripheral devices, such as sensors, controls or industrial machines, over an Ethernet network. The unit is specifically designed for use in industrial environments where high reliability, real-time performance and protection against electrical interference are required. The server features two 10/100 Mbps Ethernet ports, providing redundant LAN connectivity and thus ensuring high availability of serial communication.

Applications

The EKI-1524CI-BE is suitable for applications in industrial automation, building automation, energy supply and manufacturing industry, where serial devices need to be accessed over a network. It is particularly suitable for environments with high electrical interference, as it provides galvanic isolation, protecting devices against voltage spikes and potential differences. The support of a wide operating temperature range also makes it suitable for use in locations outside standard climate conditions, such as outdoor installations or production halls with high ambient temperatures.

Functions and Features in Detail

The server enables the transmission of serial COM ports over the network, creating a Virtual COM Port on the client computer. This allows the use of serial devices as if they were directly connected to the computer. Communication occurs in TCP and UDP modes, with TCP mode suitable for reliable data transfer and UDP mode for time-critical applications. The maximum data transfer rate is 921.6 kbps, with any baud rate configurable to ensure compatibility with various serial devices. Up to five hosts can simultaneously access a single serial port, while in TCP client mode up to 16 hosts can be addressed.

Technology Explained Simply

The unit features integrated 15 kV ESD protection for all serial signals, protecting against electrostatic discharges that may occur during handling or operation. Additionally, it offers 4 kV surge protection between lines and 8 kV surge protection between line and ground, protecting devices against transient voltage spikes. The galvanic isolation ensures there is no direct electrical connection between the serial device and the network, enhancing communication stability and safety. Automatic RS-485 flow control enables efficient communication, especially in multi-point networks where multiple devices are connected to one line.

Compatibility and Accessories

Configuration of the server can be performed via various methods, including a Windows utility, a Telnet console interface and a web browser interface. Software support includes 32-bit and 64-bit versions of Windows 2000 to Windows 8.1, Windows Server 2003 to 2012, Windows CE 5.0 as well as Linux. This ensures broad compatibility with various operating systems in industrial and IT environments. The unit is part of the EKI-1524 series, with the 'CI' model specifically designed for isolation and a wide operating temperature range.

Mounting and Installation

Configuration can be performed via the mentioned interfaces (web, Telnet, utility).

Operational Advantages

Operation of the EKI-1524CI-BE enables flexible and scalable integration of serial devices into existing networks. The redundant LAN connection increases system availability, while galvanic isolation and surge protection functions ensure reliability in electrically demanding environments. Support for multiple operating systems and flexible configuration via various interfaces simplifies integration into heterogeneous IT and industrial systems. The maximum number of five hosts per serial port and 16 hosts in TCP client mode enables efficient resource utilization.

General
Number of serial ports	4
Serial interface	RS-422/485
Ethernet ports	2
Maximum data rate	921.6 kbps
Max. hosts per serial port	5
Overvoltage protection (line to line)	4 kV
LAN redundancy

---
