Adeunis ARF8240AA LoRa LoRaWAN 10 ModBus Sensor EU868

Your rating:
Average rating
product review for Adeunis ARF8240AA LoRa LoRaWAN 10 ModBus Sensor EU868
( 4.2 / 5 ) 5 ratings

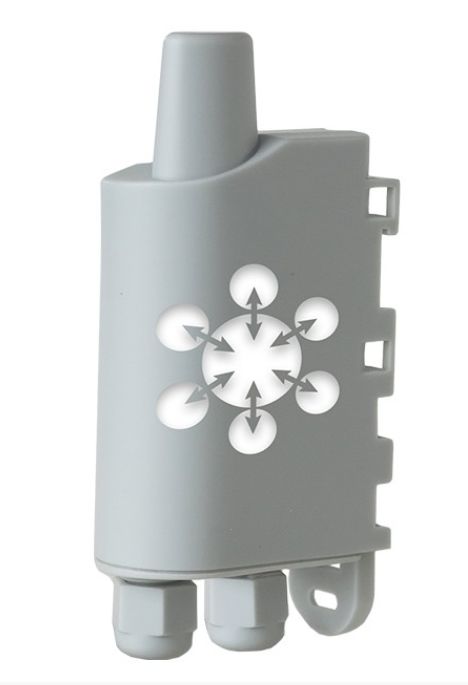

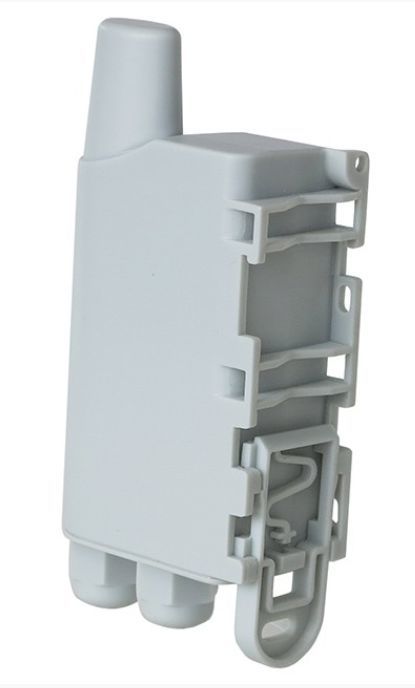

Adeunis ARF8240AA
This image may differ from the desired article.
Adeunis ARF8240AAAdeunis ARF8240AA
195,08 EUR
( 232,15 EUR incl. VAT )
≈ £162.50  |  ≈ $214.00
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Adeunis ARF8240AA LoRa LoRaWAN 10 ModBus Sensor EU868
Lieske Part No.:1789006
Mfg Part No: ARF8240AA
Weight:0.1 kg

Product information for Adeunis ARF8240AA:

The Adeunis LoRaWAN 10 ModBus Sensor ARF8240AA is an industrial sensor that communicates with Modbus slaves over the LoRaWAN network (EU863-870). It enables querying, writing, and reading of registers on one or more Modbus slaves, allowing it to be used for remote monitoring and control of industrial devices. Communication takes place via the LoRaWAN protocol, which is suitable for industrial environments due to its long range and low bandwidth usage. The sensor is designed for use in industrial facilities where reliable remote control and monitoring of devices are required.

Applications

The sensor is intended for applications in industrial environments, particularly in settings where Modbus slaves must be controlled or monitored via a wireless network. Typical use cases include remote monitoring of machines, control of pumps, valves, or other industrial components communicating via Modbus. Support for up to 10 slaves or 15 registers per slave allows flexible integration into existing systems. The operating temperature range of -25°C to +70°C makes the sensor suitable for outdoor use or in industrial halls with varying temperatures.

Functions and Features in Detail

The ARF8240AA enables both periodic and event-based communication with Modbus slaves. It can send parameters to slaves, execute actions, and receive feedback on errors or warnings. Local and remote configuration allows flexible adjustment of settings, with configuration possible over the network. The integrated lifespan indicator is configurable and supports planning of maintenance tasks. The sensor includes integrated fault detection, which indicates product faults, configuration errors, and low battery status.

Technology Explained Simply

The sensor uses the LoRaWAN protocol, operating in the EU863-870 frequency band. This protocol is optimized for wireless sensor networks and enables long range with low energy consumption. The external power supply range of 6 to 30 V allows connection to various voltage sources commonly used in industrial environments. The housing is rated IP67, meaning it is dust-tight and waterproof, enabling use outdoors or in humid environments. Dimensions of 105 x 50 x 27 mm make the sensor compact and easy to integrate.

Compatibility and Accessories

The sensor is compatible with Modbus slaves communicating via the Modbus protocol. Communication occurs over the LoRaWAN network, requiring a connection to a gateway and a network operator. Support for up to 10 slaves or 15 registers per slave enables flexible configuration. The integrated mounting system allows installation on DIN rail, pipe, wall, or flange, enabling flexible installation in various industrial environments.

Mounting and Installation

Mounting is done via the integrated mounting system, designed for DIN rails, pipes, walls, and flanges. Installation requires an external power supply in the range of 6 to 30 V. Configuration can be done locally or over the network, allowing flexible adaptation to specific applications. Installation is typically performed by professionals familiar with Modbus and LoRaWAN technology.

Operational Advantages

The sensor provides reliable remote control and monitoring of Modbus slaves over the LoRaWAN network. Integrated fault detection and the configurable lifespan indicator support maintenance and enhance operational safety. The IP67 protection rating and operating temperature range of -25°C to +70°C make the sensor suitable for demanding environments. Flexible mounting and support for up to 10 slaves increase its applicability in various industrial scenarios.

Batteries are not included in the delivery scope.

General
Degree of protectionIP67
Operating temperature range-25 °C
Current supply6-30 V
Frequency bandEU863-870
Communications protocolLoRaWAN
Modbus functionalityReading, writing, querying registers
Maximum number of slaves10
Maximum number of registers per slave15
Operation modeperiodic or event-based
ConfigurationLocal and remote configuration
Fault detectionProduct fault alarm, configuration error, low battery level
Life indicatorconfigurable
Mounting systemDIN rail, pipe, wall mounting, flange
NormDirective 2014/53/EU
