Adeunis ARF8123AA LoRa LoRaWAN field tester EU868

Your rating:
Average rating
product review for Adeunis ARF8123AA LoRa LoRaWAN field tester EU868
( 4.6 / 5 ) 12 ratings

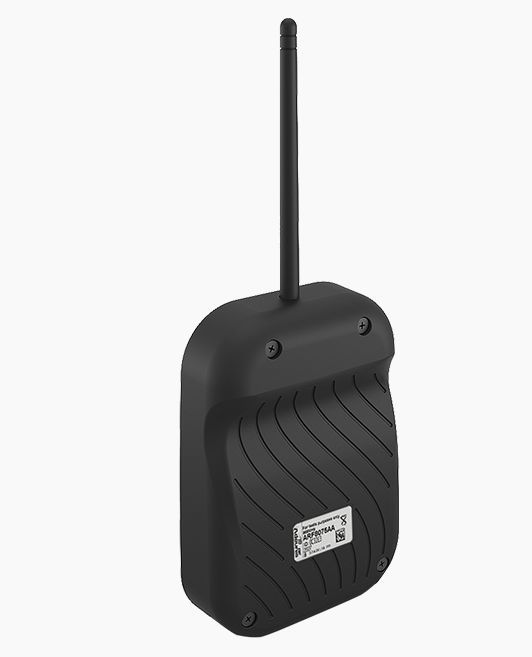

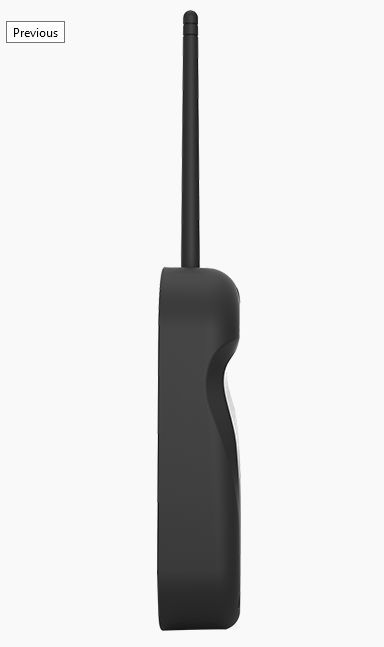

Adeunis ARF8123AA
This image may differ from the desired article.
Adeunis ARF8123AAAdeunis ARF8123AAAdeunis ARF8123AA
206,45 EUR 206,45 EUR
( 245,68 EUR incl. VAT )
≈ £171.97  |  ≈ $226.48
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline
In Stock: >25 pieces
1x Adeunis ARF8123AA LoRa LoRaWAN field tester EU868
Datasheet:file_download Download
Lieske Part No.:1290029
Mfg Part No: ARF8123AA
UPC/EAN: 9900002730138
Weight:0.1655 kg

Product information for Adeunis ARF8123AA:

The Adeunis ARF8123AA is a portable field tester for LoRaWAN networks in the EU863–870 MHz frequency range. It is used for testing and validating network coverage at a specific location, displaying uplink and downlink data, channels, RSSI, SNR, PER, GPS position, and temperature values. The device is self-powered and rechargeable, enabling flexible use without being tied to a fixed power supply. It is used by public network operators as a reference product and helps optimize gateway positioning during the setup of private networks.

Applications
This field tester is designed for technical specialists in IoT network deployment and optimization. It enables targeted verification of radio coverage at potential installation sites for gateways or for positioning IoT devices. The geolocated measurement of signal quality helps evaluate network performance and identify network weaknesses. The application is particularly suitable for planning and commissioning LoRaWAN networks in industrial, urban, or rural environments.

Functions and Features in Detail

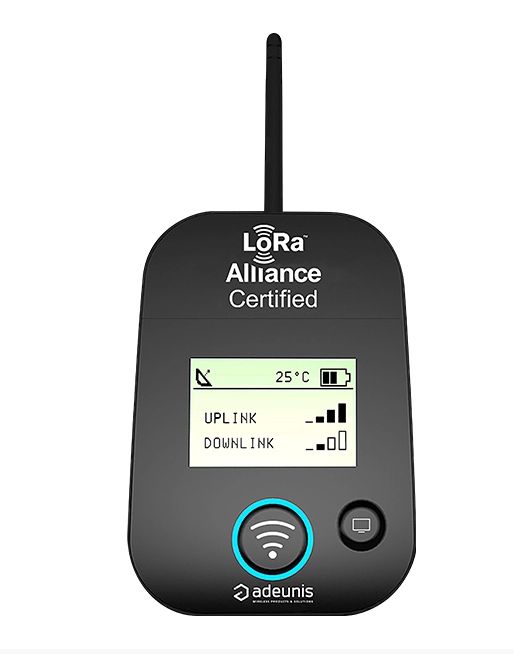

The device features a simple, easy-to-read monochrome display with backlighting, showing key measurement values directly. Data can be stored locally — up to 100 measurements are possible — and retrieved via a USB connection. Data transmission occurs either periodically or on-demand via an integrated button. The integrated antenna simulates the functionality of a device with a PCB antenna, increasing the realism of measurements. Device configuration is performed using the local IoT Configurator software.

Technology Explained Simply
The ARF8123AA operates in the ISM frequency band 865–870 MHz and supports the LoRaWAN standard in Class A. Communication occurs via OTAA (Over-The-Air Activation) and ABP (Activation By Personalization), with ADR (Adaptive Data Rate) and adaptive channel configuration optimizing transmission efficiency. The transmitted RF power is 14 dBm (equivalent to 25 mW), ensuring sufficient range. Sensitivity is -140 dBm for LoRaWAN (at SF12) and -126 dBm for Sigfox, enabling high reception performance even with weak signals. Data encryption is performed using AES-128 to ensure the security of transmitted information.

Compatibility and Accessories
The device is designed for use in LoRaWAN networks in the EU868 region and supports the EU863–870 MHz frequency bands. It is compatible with the IoT Configurator software for local configuration. The integrated GPS function enables geographical mapping of measurement data.

Mounting and Installation
The field tester is designed as a handheld device and requires no mounting. It is operated directly at the site of use, with GPS position automatically captured. Power is supplied by a rechargeable lithium-ion battery (3.7 V, 2 Ah, 7.4 Wh), which can be charged via a Micro-USB port with 5 V and 500 mA. The operating temperature range is -20 °C to +40 °C, and humidity can reach up to 85 %, provided no condensation occurs.

Operational Advantages
The combination of local display, local storage, and GPS geolocation enables quick and precise evaluation of network coverage. The rechargeable battery and compact form factor (180 x 72 x 21 mm, weight 140 g) ensure high mobility. Compliance with Directive 2014/53/EU (RED) ensures conformity with European radio and electronic equipment standards. Thus, the device is suitable for professional use in network planning and monitoring.

Protection Rating and Environmental Conditions
The enclosure is made of ABS GP22 and polycarbonate, while the antenna is made of Thermolast K. The operating temperature range is -20 °C to +40 °C, and humidity can be 0 to 85 % relative humidity without condensation. The device is not classified as waterproof or dustproof, so it is intended for indoor use or protected outdoor environments.

Radio Standard and Network Integration
The ARF8123AA is designed for LoRaWAN networks and supports Class A. Communication occurs in the ISM band 865–870 MHz. The integrated GPS function enables spatial mapping of measurement data, which is beneficial for network optimization. Data encryption is performed using AES-128 to ensure the integrity of transmitted information. Configuration is performed locally via the IoT Configurator software.

Operating Conditions and Environmental Requirements
The device is designed for use at temperatures from -20 °C to +40 °C and relative humidity from 0 to 85 % without condensation. The operating environment should be dry and dust-free. No specific protection against mechanical stress or environmental influences such as rain or dust is specified.

General
Wireless standardLoRaWAN
LoRaWAN classA
Frequency rangeEU863–870 MHz
ISM band865–870 MHz
Transmitting power14 dBm
Sensitivity LoRaWAN-140 dBm
Sensitivity Sigfox-126 dBm
EncodingAES-128
Data transmissionOTAA, ABP, ADR, adaptive channel configuration
IndicationUplink/Downlink, channels, RSSI, SNR, PER, GPS, temperature
Local storageup to 100 measurements
Current supplyLithium-ion battery 3.7 V, 2 Ah, 7.4 Wh
External power supplyMicro-USB, 5 V, 500 mA
Operation temperature-20 to +40 °C
Air humidity0 to 85 % RH
Housing materialABS GP22, polycarbonate, Thermolast K
ConformityDirective 2014/53/EU (RED)
GPS functionYes


Product data sheet
Datasheet for Adeunis ARF8123AA, EAN: 9900002730138
