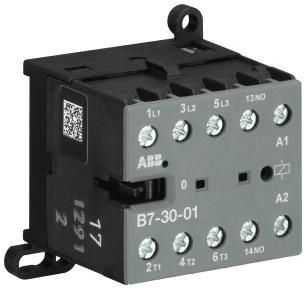

ABB GJL1311001R0011 B7-30-01-01 Mini Contactor 24V 40-450Hz

Your rating:
Average rating
Rating for ABB GJL1311001R0011 B7-30-01-01 Mini Contactor 24V 40-450Hz
( 5 / 5 ) 1 ratings

This image may differ from the desired article.
41,18 EUR
( 49,00 EUR incl. VAT )
Delivery time (ca.) 10 workdaysinfo_outline
1x ABB GJL1311001R0011 B7-30-01-01 Mini Contactor 24V 40-450Hz
Lieske Part No.:171906
Mfg Part No: GJL1311001R0011
UPC/EAN: 4013614156366
Weight:0.18 kg
Graduated prices net
From piecesPrice per pieces
1038,71 EUR
2536,24 EUR
5033,77 EUR
7531,30 EUR

Product information for ABB GJL1311001R0011:

The B7-30-01 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.

Technical
Number of Poles: 4
Mini Contactor Type: Mini Contactor
Rated Operational Voltage: Auxiliary Circuit 12 ... 240 V DC
Auxiliary Circuit 12 ... 500 V AC/DC
Main Circuit 12 ... 690 V AC/DC
Main Circuit 690 V AC
Rated Frequency (f): Control Circuit 400 Hz
Control Circuit 50 Hz
Control Circuit 60 Hz
Main Circuit 60 Hz
Main Circuit 50 Hz
Main Circuit DC
Rated Impulse Withstand Voltage (Uimp): Auxiliary Circuit 6 kV
Main Circuit 6 kV
Rated Insulation Voltage (Ui): 690 V
acc. to UL/CSA 600 V
Number of Main Contacts NC: 0
Number of Main Contacts NO: 3
Rated Operational Current AC-1 (Ie): (220 / 240 V) 40 °C 20 A
(220 / 240 V) 55 °C 16 A
(380 / 440 V) 40 °C 20 A
(380 / 440 V) 55 °C 16 A
(690 V) 40 °C 6 A
(690 V) 55 °C 6 A
Rated Operational Power AC-3 (Pe): (220 / 230 / 240 V) 3 kW
(400 V) 5.5 kW
(400 V) Three Phase 5.5 kW
(440 V) 5.5 kW
(500 V) 5.5 kW
(690 V) 3 kW
Rated Short-time Withstand Current (Icw): at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 96 A
Number of Auxiliary Contacts NC: 1
Number of Auxiliary Contacts NO: 0
Rated Operational Current AC-15 (Ie): (120 V) 4 A
(220 / 240 V) 4 A
(24 V) 4 A
(380 / 400 V) 3 A
(500 V) 2 A
Rated Operational Current DC-13 (Ie): (110 V) 0.7 A
(220 / 240 V) 0.4 A
(24 V) 2.5 A
Conventional Free-air Thermal Current (Ith): Main Circuit 20 A
Rated Control Circuit Voltage (Uc): 24 V AC
Coil Operating Limits: (acc. to IEC 60947-4-1) for AC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C)
Degree of Protection: Auxiliary Circuit Terminals IP20
Control Circuit Terminals IP20
Main Circuit Terminals IP20
Mechanical Durability: 10000000 cycle
Minimum Switching Capacity: 17 V
5 mA
Maximum Electrical Switching Frequency: AC-1 300 cycles per hour
AC-15 600 cycles per hour
AC-3 600 cycles per hour
DC-1 600 cycles per hour
DC-13 600 cycles per hour
DC-3 600 cycles per hour
Connecting Capacity Main Circuit: Flexible with Ferrule 1/2x 1 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²
Flexible 1/2x 1 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
Connecting Capacity Auxiliary Circuit: Flexible with Ferrule 1/2x 1 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²
Flexible 1/2x 1 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
Connecting Capacity Control Circuit: Flexible with Ferrule 1/2x 1 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²
Flexible 1/2x 1 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
Wire Stripping Length: Auxiliary Circuit 9 mm
Main Circuit 9 mm
Tightening Torque: Auxiliary Circuit 0.8 ... 1.1 N·m
Control Circuit 0.8 ... 1.1 N·m
Main Circuit 0.8 ... 1.1 N·m
Mounting on DIN Rail: TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Power Loss: at Rated Operating Conditions per Pole 2 W
Standards: IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 60947-1
UL 60947-4-1
Type: B7-30-01-01


Questions & answers

What is the delivery time of ABB GJL1311001R0011 B7-30-01-01 Mini Contactor 24V 40-450Hz?

The article ABB GJL1311001R0011 B7-30-01-01 Mini Contactor 24V 40-450Hz is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 10 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ABB GJL1311001R0011 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you ABB GJL1311001R0011 B7-30-01-01 Mini Contactor 24V 40-450Hz always at the best possible price. We can give you a discount of 2% on ABB GJL1311001R0011 B7-30-01-01 Mini Contactor 24V 40-450Hz if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of ABB GJL1311001R0011 B7-30-01-01 Mini Contactor 24V 40-450Hz we can offer you a price of 38,71 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of ABB GJL1311001R0011 B7-30-01-01 Mini Contactor 24V 40-450Hz via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
