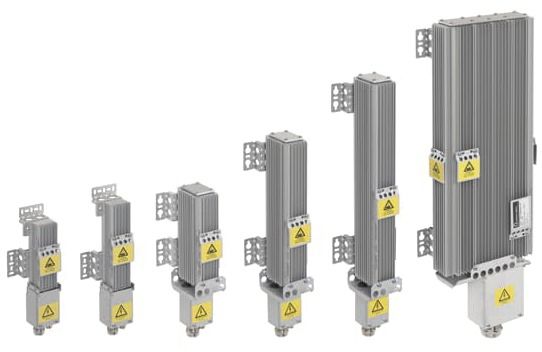

ABB 64102931 Brake device ACS-BRK-D ACS400 for ..0030 to ..0041
|
1.323,35 EUR 1.379,07 EUR |
|||||||||||
|
( 1.574,79 EUR incl. VAT ) ≈ £1,102.35 | ≈ $1,451.71 plus delivery charges: 148,00 € |
|||||||||||
| Made to order · Delivery time approx. 11 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1315344 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 64102931 | ||||||||||
| UPC/EAN: | 6410038069131 | ||||||||||
| Weight: | 19.23 kg | ||||||||||
| Type: | ACS-BRK-D | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for ABB 64102931:
Braking resistors are a central component of the braking module and are responsible for converting electrical energy into heat. These resistors are dimensioned to handle thermal stress during frequent braking operations. The integrated braking chopper unit controls the activation of the resistor, ensuring energy is dissipated only when the voltage in the DC link exceeds a defined threshold. This prevents overloading of the converter and ensures stable operation.
Applications include drive systems in industrial environments requiring frequent starting, braking, or reversing operations, such as conveyor systems, presses, crane systems, or material handling systems. The braking module is particularly suitable for applications where the motor cannot be braked via the network, for example in isolated or non-grid-connected systems. Using the ACS-BRK-D enables precise and reliable braking control, extending the service life of the drive system.
Functions and equipment in detail include direct connection to the DC link of the frequency converter and automatic control via the integrated braking chopper. The braking module is designed for industrial environments and requires no additional control components. The thermal capacity of the resistors is matched to the specific requirements of the ACS400 models, ensuring continuous and safe braking performance.
Technology explained simply means that the braking module converts the electrical energy, which increases in the DC link during motor braking, into heat via the resistor. The braking chopper automatically activates when the voltage reaches a predefined level and deactivates when the voltage falls below the threshold. This process occurs without external control and ensures seamless integration into existing drive systems.
Compatibility and accessories refers to use exclusively with frequency converters of the ACS400 series, specifically models with the last digits ..0030 to ..0041. The braking module is designed as a standalone unit and requires no additional components for operation.
Mounting and installation is performed by direct connection to the DC link of the frequency converter. The braking module is designed for industrial applications and requires professional installation by qualified personnel.
Operational advantages include reliable and controlled braking, which increases the service life of drive components and improves operational safety. The integrated control via the braking chopper reduces the need for additional control components and simplifies system architecture. Thermal energy conversion occurs without feedback to the network, which is particularly beneficial in isolated installations.
| General | |
| Manufacturer | ABB |
| Compatibility | Frequency converter ACS400, models ..0030 to ..0041 |
| Function | Energy conversion during braking |
| Connection | Intermediate circuit of frequency converter |
| Control | integrated brake chopper |
| Energy conversion | Thermal |
Questions & answers
What is the delivery time of ABB 64102931 Brake device ACS-BRK-D ACS400 for ..0030 to ..0041?
The article ABB 64102931 Brake device ACS-BRK-D ACS400 for ..0030 to ..0041 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ABB 64102931 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ABB 64102931 Brake device ACS-BRK-D ACS400 for ..0030 to ..0041 always at the best possible price. We can give you a discount of 2% on ABB 64102931 Brake device ACS-BRK-D ACS400 for ..0030 to ..0041 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of ABB 64102931 Brake device ACS-BRK-D ACS400 for ..0030 to ..0041 we can offer you a price of 1.293,57 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
