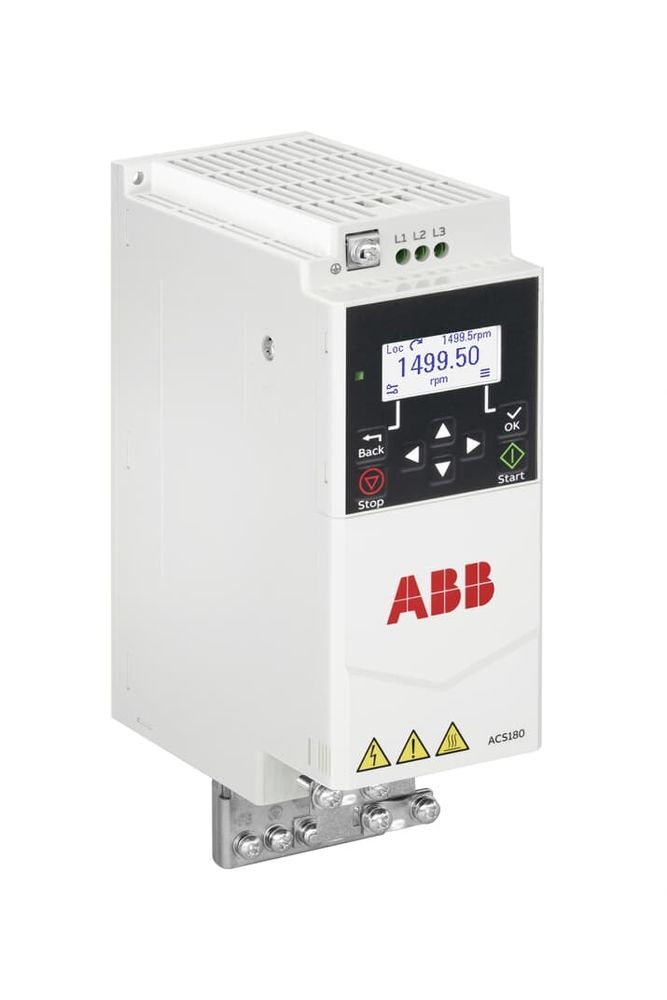

ABB 3AXD50000716616 DRIVEWINDOW LIGHT ACS180-04S-09A8-1 frequency converter
|
493,05 EUR 513,81 EUR |
|||||||||||
|
( 586,73 EUR incl. VAT ) ≈ £416.63 | ≈ $551.23 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 2094516 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3AXD50000716616 | ||||||||||
| UPC/EAN: | 6438177649182 | ||||||||||
| Weight: | 1.24 kg | ||||||||||
| Type: | ACS180-04S-09A8-1 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for ABB 3AXD50000716616:
for speed adjustment of asynchronous and permanent magnet motors
With icon-based integrated control panel,
EMV-C2 for 1x230 V, EMV-C3 for 3x380-480V, EMV-C4 for 3x230 V
Spring-loaded terminal for the control connections (2xAI, 1xAO, 4xDI, 1xDO, 1xRO, 1x RJ45 for Modbus RTU or external control panel/PC tool)
Adaptive programming (logic blocks)
Integrated brake chopper from size R2
Commissioning with the Drive Composer entry software (free of charge) or pro, connection via optional USB cable
Optional: mains choke, EMV-C1, DIN rail mounting (for R0.R2, integrated from R3)
| General | |
| Mains voltage | 240 |
| Mains frequency | 50/60 Hz |
| Number of phases input | Other |
| Number of phases output | 3 |
| Max. output frequency | 598 |
| Max. output voltage | 240 |
| Nominal output current I2N | 9.8 |
| Max. output at quadratic load at rated output voltage | 2.2 |
| Max. output at linear load at rated output voltage | 2.2 |
| Relative symmetric net frequency tolerance | 5 |
| Relative symmetric net voltage tolerance | 10 |
| Number of analogue outputs | 1 |
| Number of analogue inputs | 2 |
| Number of digital outputs | 2 |
| Number of digital inputs | 4 |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 1 |
| Type of converter | U converter |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Height | 220 |
| Width | 70 |
| Depth | 143 |
| Power consumption | 84 |
| With control unit | |
| Application in industrial area permitted | |
| Application in domestic- and commercial area permitted | |
| Supporting protocol for TCP/IP | |
| Supporting protocol for PROFIBUS | |
| Supporting protocol for CAN | |
| Supporting protocol for INTERBUS | |
| Supporting protocol for ASI | |
| Supporting protocol for KNX | |
| Supporting protocol for MODBUS | |
| Supporting protocol for Data-Highway | |
| Supporting protocol for DeviceNet | |
| Supporting protocol for SUCONET | |
| Supporting protocol for LON | |
| Supporting protocol for PROFINET IO | |
| Supporting protocol for PROFINET CBA | |
| Supporting protocol for SERCOS | |
| Supporting protocol for Foundation Fieldbus | |
| Supporting protocol for EtherNet/IP | |
| Supporting protocol for AS-Interface Safety at Work | |
| Supporting protocol for DeviceNet Safety | |
| Supporting protocol for INTERBUS-Safety | |
| Supporting protocol for PROFIsafe | |
| Supporting protocol for SafetyBUS p | |
| Supporting protocol for BACnet | |
| Supporting protocol for other bus systems | |
| With optical interface | |
| With PC connection | |
| Integrated breaking resistance | |
| 4-quadrant operation possible | |
Questions & answers
What is the delivery time of ABB 3AXD50000716616 DRIVEWINDOW LIGHT ACS180-04S-09A8-1 frequency converter ?
The article ABB 3AXD50000716616 DRIVEWINDOW LIGHT ACS180-04S-09A8-1 frequency converter is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ABB 3AXD50000716616 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ABB 3AXD50000716616 DRIVEWINDOW LIGHT ACS180-04S-09A8-1 frequency converter always at the best possible price. We can give you a discount of 2% on ABB 3AXD50000716616 DRIVEWINDOW LIGHT ACS180-04S-09A8-1 frequency converter if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of ABB 3AXD50000716616 DRIVEWINDOW LIGHT ACS180-04S-09A8-1 frequency converter we can offer you a price of 474,56 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
