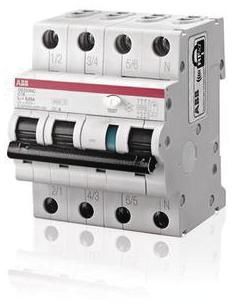

ABB 2CSR256140R1167 DS203NC K16 A30 FI/LS-switch 6kA 3 6kA IEC/EN 61009, 10kA IEC/EN 60947-2
|
303,24 EUR 316,01 EUR |
|||||||||||
|
( 360,86 EUR incl. VAT ) ≈ £257.15 | ≈ $339.93 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1340819 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 2CSR256140R1167 | ||||||||||
| UPC/EAN: | 8012542769323 | ||||||||||
| Weight: | 0.53 kg | ||||||||||
| Type: | DS203NC K16 A30 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for ABB 2CSR256140R1167:
Rated switching capacity Icn = 6,000 A according to IEC/EN 61009-1 (VDE 0664-20) for RCDs (residual current devices) in residential buildings and similar applications, Icu = 10 kA according to IEC/EN 60947-2 (VDE 0660-101) for MCBs (LS) in industrial applications.
RCBO DS203NC A Type A is 3-pole protected (LS), 4-pole switching and can be used in three-phase networks with or without N conductor.
| General | |
| Number of poles (total) | 4 |
| Number of protected poles | 3 |
| Rated voltage | 415 |
| Rated insulation voltage Ui | 500 |
| Rated impulse withstand voltage Uimp | 4 |
| Rated current | 16 |
| Rated fault current | 0.03 |
| Leakage current type | A |
| Current limiting class | 3 |
| Rated short-circuit breaking capacity acc. EN 61009 | 6 |
| Rated short-circuit breaking capacity IEC 60947-2 | 10 |
| Rated short-circuit breaking capacity Icn acc. EN 61009-1 | 6 |
| Disconnection characteristic | Undelayed |
| Voltage type | AC |
| Frequency | 50/60 Hz |
| Release characteristic | K |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Ambient temperature during operating | 55 |
| Width in number of modular spacings | 4 |
| Built-in depth | 69 |
| Degree of protection (IP) | IP2X |
| Connectable conductor cross section solid-core | 25 |
| Connectable conductor cross section multi-wired | 25 |
| Mounting method | DIN rail |
| Power loss | 10 |
| Concurrently switching N-neutral | |
| With interlocking device | |
| Anti-nuisance tripping version | |
