ABB 2CDL900001R7600 BKE-A eHZ adapter BKE-A

Your rating:
Average rating
product review for ABB 2CDL900001R7600 BKE-A eHZ adapter BKE-A
( 4.4 / 5 ) 100 ratings

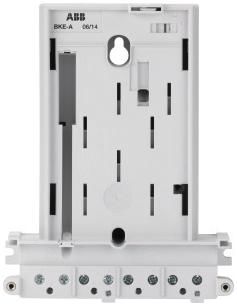

ABB 2CDL900001R7600
This image may differ from the desired article.
ABB 2CDL900001R7600ABB 2CDL900001R7600
114,00 EUR
incl. 2,85 EUR copper surcharge
( 135,66 EUR incl. VAT )
≈ £94.96  |  ≈ $125.06
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >10 pieces
1x ABB 2CDL900001R7600 BKE-A eHZ adapter BKE-A
Lieske Part No.:301481
Mfg Part No: 2CDL900001R7600
UPC/EAN: 4016779667197
Weight:0.6 kg
Type:BKE-A
Graduated prices net
From piecesPrice per pieces
5109,00 EUR
10104,00 EUR
1598,99 EUR
2093,99 EUR

Product information for ABB 2CDL900001R7600:

ABB adapter plate type BKE-A, manufacturer number 2CDL900001R7600, is a specific accessory for mounting electronic household meters (eHZ) in existing meter positions. It serves as an interface between the meter cross and the eHZ and enables single- or three-phase connection. The adapter plate complies with the standard DIN VDE 0603-3-2, which defines requirements for the mechanical and electrical integration of meters in distribution systems. It is mounted directly onto a meter cross, typically installed in distribution boxes or meter boxes, and establishes the necessary electrical connection.

Adapter plate
The adapter plate is designed to securely and stably accommodate the electronic household meter. It features an integrated terminal connection block, ensuring reliable electrical connections between the meter and the network. The connection terminals are designed for connection to the power supply network cables and guarantee reliable power transmission. The construction is designed for use in electrical distribution systems, with mechanical stability and electrical insulation being the primary focus.

Applications
The adapter plate is primarily intended for use in residential and commercial buildings where electronic household meters are to be integrated into existing meter positions. It enables modernization of existing metering systems without extensive modifications. Installation is carried out on a meter cross, typically installed in a distribution box or meter box. The application is particularly suitable when the existing meter position is not designed for an eHZ, but adaptation is required without structural changes.

Functions and equipment in detail
The adapter plate is equipped with a terminal connection block that ensures secure and durable electrical connections. The terminals are designed for connection to the power supply network cables and guarantee reliable power transmission. The adapter plate is suitable for single- or three-phase operation, making it flexible for use in various network configurations. Installation is performed directly onto the meter cross, with mechanical stability ensured by the plate's construction.

Technology explained simply
The adapter plate functions as a mechanical and electrical interface between the meter cross and the electronic household meter. The terminal connection block enables secure connection of supply lines to the meter. The design ensures that it withstands mechanical stresses during operation while providing a reliable electrical connection. The DIN VDE 0603-3-2 standard ensures that the adapter plate meets requirements for meter mounting and operation in distribution systems.

Compatibility and accessories
The adapter plate is suitable for mounting terminal covers according to DIN 43857-4 and DIN 43857-5. Compatibility with these standards ensures that electrical connections are securely covered and protected against mechanical damage. The adapter plate is specifically designed for use with electronic household meters (eHZ) and enables their integration into existing meter positions.

Installation and mounting
Mounting is performed directly onto a meter cross installed in a distribution box or meter box. The adapter plate is mechanically secured, with exact mounting instructions depending on the specific meter cross and installation conditions. Electrical connections are made via the integrated terminal connection block. Installation requires no additional tools or components beyond those already present in the meter position. The installation complies with the requirements of DIN VDE 0603-3-2.

Operational advantages
The adapter plate enables integration of an electronic household meter into existing meter positions without structural modifications. Use of the terminal connection block ensures a reliable and durable electrical connection. Compatibility with DIN 43857-4 and DIN 43857-5 standards ensures secure shielding of connections. Installation is simple and requires no additional components, making the process efficient and cost-effective. The adapter plate is suitable for single- or three-phase operation, increasing its flexibility in various application scenarios.

General
Type of accessoryConnection terminal


Please note...
This article contains a copper surcharge of 2,85 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990

Questions & answers

What is the delivery time of ABB 2CDL900001R7600 BKE-A eHZ adapter BKE-A ?

The article ABB 2CDL900001R7600 BKE-A eHZ adapter BKE-A is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ABB 2CDL900001R7600 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you ABB 2CDL900001R7600 BKE-A eHZ adapter BKE-A always at the best possible price. We can give you a discount of 2% on ABB 2CDL900001R7600 BKE-A eHZ adapter BKE-A if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of ABB 2CDL900001R7600 BKE-A eHZ adapter BKE-A we can offer you a price of 109,00 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
