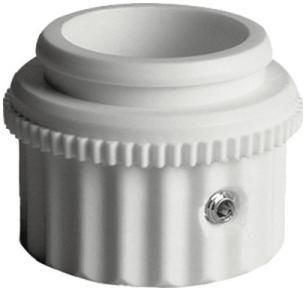

ABB 2CDG120011R0011 VA/Z78.1 valve adapter flange
|
-6% 2,61 EUR 2,77 EUR |
|
|
( 3,11 EUR incl. VAT ) ≈ £2.18 | ≈ $2.87 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 11 workdaysinfo_outline | |
| Lieske Part No.: | 733134 |
|---|---|
| Mfg Part No: | 2CDG120011R0011 |
| UPC/EAN: | 4016779653213 |
| Weight: | 0.018 kg |
| Type: | VA/Z78.1 |
Product information for ABB 2CDG120011R0011:
Applications
The VA/Z78.1 is specifically designed for use in heating systems, where thermoelectric actuators are employed to control heating circuit valves. It is used to adapt the actuators to valve flanges, particularly in heating circuit distributors and with Danfoss RA valves. The application is in residential and commercial buildings where intelligent, automated heating control is required.
Functions and Equipment in Detail
The valve adapter provides the mechanical connection between the actuator and the valve. It enables a secure and torque-stable mounting, ensuring precise positioning of the valve. The construction is tailored to the specific dimensions of the actuators TSA/K 230.1 and TSA/K 24.1 as well as Danfoss RA valves, ensuring a trouble-free installation. The use of the adapter is necessary to secure the actuators to the valve flanges, as these are not directly compatible.
Technology Explained Simply
The adapter functions as a mechanical interface, transferring the movement of the actuator to the valve. Thermoelectric actuators operate without electrical power supply, instead using thermal energy to move the valve. The VA/Z78.1 ensures that this movement is transferred precisely and without play to the valve. The design is engineered to withstand mechanical loads in the heating circuit, including vibrations and temperature fluctuations common in heating systems.
Compatibility and Accessories
The VA/Z78.1 valve adapter is specifically designed for actuators TSA/K 230.1 and TSA/K 24.1. It is compatible with valves from the manufacturer Danfoss RA, particularly in heating circuit distributors. The use of the adapter requires combination with one of these actuators to ensure the functionality of the heating control system.
Installation and Mounting
Mounting is achieved by mechanically securing the adapter to the valve flanges. The adapter is attached to the corresponding connection points on the valve, with the exact fit designed for Danfoss RA valves. Subsequently, the actuator (TSA/K 230.1 or TSA/K 24.1) is mounted onto the adapter. Installation requires no additional tools or components, as the adapter is directly adapted to existing flanges. Mounting is performed as part of the heating system installation and is part of integrating home automation technology.
Operational Advantages
The use of the VA/Z78.1 enables precise and reliable control of heating valves, leading to more efficient heat supply. The mechanical stability of the adapter ensures that the actuators maintain their function throughout the system's lifetime. Compatibility with various home automation systems (KNX, Busch-free@home®) allows flexible integration into existing or new building automation systems. The use of thermoelectric actuators reduces energy consumption, as no external power supply is required.
| General | |
| Product type | Valve adapter |
| Compatibility | actuators TSA/K 230.1, TSA/K 24.1 |
| Compatible valves | Danfoss RA |
| Product series | KNX, Busch-free@home®, Busch-free@home® wired, Busch-free@home® wireless |
| Application | heating circuit distributor, valve heads |
Questions & answers
What is the delivery time of ABB 2CDG120011R0011 VA/Z78.1 valve adapter flange ?
The article ABB 2CDG120011R0011 VA/Z78.1 valve adapter flange is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ABB 2CDG120011R0011 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ABB 2CDG120011R0011 VA/Z78.1 valve adapter flange always at the best possible price. We can give you a discount of 2% on ABB 2CDG120011R0011 VA/Z78.1 valve adapter flange if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
