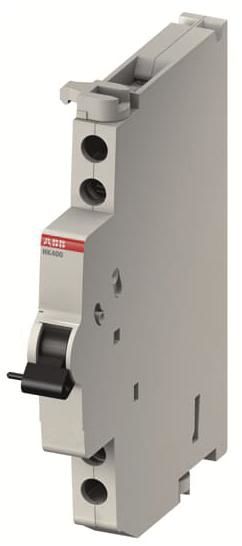

ABB 2CCF201112R0001 HK40020-L auxiliary switch 2S
|
26,50 EUR |
|||||||||||
|
( 31,54 EUR incl. VAT ) ≈ £22.18 | ≈ $29.12 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 14 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1773336 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 2CCF201112R0001 | ||||||||||
| UPC/EAN: | 7612270111183 | ||||||||||
| Weight: | 0.045 kg | ||||||||||
| Type: | HK40020-L | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for ABB 2CCF201112R0001:
Applications
The auxiliary switch HK40020-L is used in industrial and commercial electrical installations where reliable signal transmission during operating conditions or tripping events is required. It is particularly suitable for applications where a collective alarm function via auxiliary current rails LA or LB is to be implemented. This solution reduces the need for additional wiring and enables cost-efficient signal transmission across multiple protective devices.
Functions and Equipment in Detail
The switch is equipped with two closing contacts (2S) that close when the main device is actuated. The signal function is activated exclusively during electrical tripping, which can be simulated via the test button. After each tripping event, the signal contact must be manually reset to its initial position using an orange reset button. This ensures clear indication of the tripping event and enables targeted fault diagnosis. The device is delivered with a contact piece that allows direct mounting on a Smissline TP socket. For variants with two closing contacts (2S) and two opening contacts (2Oe), two contact pieces are provided.
Technology Explained Simply
Connection is made either via the SMISSLINE auxiliary current rails LA or LB, enabling integrated power supply, or via conventional terminals. The version with integrated connection reduces required wiring and simplifies installation. The rated operational current is 6 A at AC-15 and 230 V, ensuring suitability for standard mains voltages. The mounting type is specified as other, indicating a specific fixation to protective devices that does not fall into standard mounting categories.
Compatibility and Accessories
The auxiliary switch is designed for use with protective devices from the ABB product family, particularly in combination with residual current circuit breakers. Compatibility with SMISSLINE auxiliary current rails LA and LB enables flexible integration into existing switchgear. The signal contact version with collective alarm function is especially suitable for system configurations where multiple devices are to be monitored via a common signal network.
Mounting and Installation
Mounting is performed directly on the protective device, with positioning possible on the left (standard) or right (for circuit breakers). Connection is made via the included contact piece onto a Smissline TP socket. When using auxiliary current rails LA or LB, power supply is provided through these rails, eliminating the need for additional cable connections. Installation does not require special tools, as fixation is achieved via the socket structure.
Operational Advantages
The use of the auxiliary switch HK40020-L enables precise status monitoring and signaling of tripping events. The collective alarm function reduces wiring complexity and lowers installation costs. Manual reset via the orange button ensures unambiguous signaling and prevents misinterpretations. Compatibility with SMISSLINE systems guarantees seamless integration into existing installation structures.
| General | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 2 |
| Number of contacts as normally closed contact | 0 |
| Number of fault-signal switches | 2 |
| Rated operation current Ie at AC-15, 230 V | 6 |
| Mounting method | Other |
