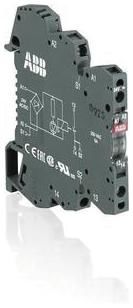

ABB 1SNA645025R2200 OBOC 1500-24VAC/DC optocoupler R600 content_copy

Programmable logic controllers (PLCs) play a central role in today's industrial automation systems. They connect measuring instruments and actuators connected via conventional cabling to the process. However, a PLC is not completely decoupled from the industrial environment, so overvoltage peaks and transient currents can certainly affect its functionality. In order to adjust the applied voltage and/or current and to provide the PLC with suitable galvanic isolation, the appropriate interface should be installed for each input/output point, which both regulates the voltage and current level and offers isolation protection. The relay and optocoupler series from ABB offer such interfaces. They allow a wide range of adjustment of the voltage (from 5 to 250 V) and current (from 0.01 to 8 A) as well as a high level of isolation between input and output of 2 to 4 kV. Transistor, MOS-FET or triac outputs can be selected for high switching frequencies with low switching loads.

General
Input voltage	24
Type of voltage (input voltage)	AC/DC
Type of output voltage	DC
Rated operation current Ie	2
Type of digital output	Other
With LED indication

---
