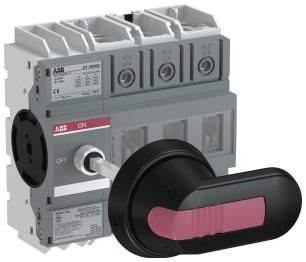

ABB 1SCA135139R1001 OT160G03P switch disconnector 3-pole and shaft
|
256,13 EUR 266,91 EUR |
|||||||||||
|
( 304,79 EUR incl. VAT ) ≈ £217.20 | ≈ $287.12 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1340368 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 1SCA135139R1001 | ||||||||||
| UPC/EAN: | 6417019638706 | ||||||||||
| Weight: | 1 kg | ||||||||||
| Type: | OT160G03P | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for ABB 1SCA135139R1001:
The OT series switches currents from 16 A to 4000 A and at voltages of up to 1000 V AC.
Despite their high performance, the switches are very easy to operate and take up little space.
The freely selectable installation position enables a high level of flexibility and efficiency in planning.
In addition, the OT switches can be used as main switches in the main or sub-distribution board. Of course, the OT series also has IEC and UL approvals, which make this series even more attractive. ABB also offers you a wide range of accessories for these switches, such as extension shafts, handles, auxiliary switches and terminal covers. This means that the OT switch disconnectors can also be used in the most demanding applications.
| General | |
| Number of switches | 1 |
| Max. rated operation voltage Ue AC | 1000 |
| Rated operating voltage | 1000 |
| Rated permanent current Iu | 160 |
| Rated permanent current at AC-23, 400 V | 160 |
| Rated permanent current at AC-21, 400 V | 160 |
| Rated short-time withstand current lcw | 4 |
| Rated operation power at AC-23, 400 V | 75 |
| Switching power at 400 V | 75 |
| Conditioned rated short-circuit current Iq | 50 |
| Number of poles | 3 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Device construction | Complete device in housing |
| Colour control element | Black |
| Type of electrical connection of main circuit | Screw connection |
| Degree of protection (IP), front side | IP20 |
| Degree of protection (NEMA) | Other |
| Colour housing | Grey |
| Depth | 73 |
| Height | 130 |
| Material housing | Plastic |
| Width | 123 |
| Version as main switch | |
| Version as maintenance-/service switch | |
| Version as safety switch | |
| Version as emergency stop installation | |
| Version as reversing switch | |
| Motor drive optional | |
| Motor drive integrated | |
| Voltage release optional | |
| Suitable for front mounting 4-hole | |
| Suitable for front mounting centre | |
| Interlockable | |
| Floor mounting | |
Questions & answers
What is the delivery time of ABB 1SCA135139R1001 OT160G03P switch disconnector 3-pole and shaft?
The article ABB 1SCA135139R1001 OT160G03P switch disconnector 3-pole and shaft is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ABB 1SCA135139R1001 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ABB 1SCA135139R1001 OT160G03P switch disconnector 3-pole and shaft always at the best possible price. We can give you a discount of 2% on ABB 1SCA135139R1001 OT160G03P switch disconnector 3-pole and shaft if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of ABB 1SCA135139R1001 OT160G03P switch disconnector 3-pole and shaft we can offer you a price of 242,68 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
