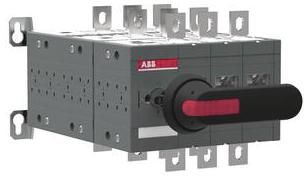

ABB 1SCA123581R1001 OT315E03YP bypass switch 3-pole 3 shaft
|
2.398,48 EUR 2.499,47 EUR |
|||||||||||
|
( 2.854,19 EUR incl. VAT ) ≈ £2,033.91 | ≈ $2,688.70 plus delivery charges: 148,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1337629 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 1SCA123581R1001 | ||||||||||
| UPC/EAN: | 6417019543659 | ||||||||||
| Weight: | 11.93 kg | ||||||||||
| Type: | OT315E03YP | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Frequency converter, soft starter from ABBFurther products in category Frequency converter, soft starter
All products of ABB
Product information for ABB 1SCA123581R1001:
ABB's manually operated bypass switches are unique in their variety and flexibility. The series switches currents from 160 A to 800 A at voltages up to 690 V AC. Despite their high performance, the switches are very easy to operate and take up little space. The freely selectable installation position enables a high level of flexibility and efficiency in planning. The bypass switches have an IEC approval. ABB also offers you a wide range of accessories for this series, such as extension shafts, handles and terminal covers. This means that bypass switches can also be used in the most demanding applications and are an ideal solution for load bypass. The equipment can be safely maintained while the load is supplied directly from the source. ABB's bypass switches meet the isolation requirements without additional devices.
| General | |
| Number of switches | 1 |
| Max. rated operation voltage Ue AC | 1000 |
| Rated operating voltage | 1000 |
| Rated permanent current at AC-23, 400 V | 315 |
| Rated permanent current at AC-21, 400 V | 315 |
| Rated short-time withstand current lcw | 15 |
| Rated operation power at AC-23, 400 V | 160 |
| Switching power at 400 V | 160 |
| Number of poles | 3 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Device construction | Built-in device plug-in technique |
| Colour control element | Black |
| Type of electrical connection of main circuit | Screw connection |
| Degree of protection (IP), front side | IP20 |
| Degree of protection (NEMA) | 1 |
| Colour housing | Grey |
| Depth | 306 |
| Height | 185 |
| Material housing | Plastic |
| Width | 240 |
| Version as main switch | |
| Version as maintenance-/service switch | |
| Version as safety switch | |
| Version as emergency stop installation | |
| Version as reversing switch | |
| Motor drive optional | |
| Motor drive integrated | |
| Voltage release optional | |
| Suitable for front mounting 4-hole | |
| Suitable for front mounting centre | |
| Suitable for distribution board installation | |
| Suitable for intermediate mounting | |
| Interlockable | |
Questions & answers
What is the delivery time of ABB 1SCA123581R1001 OT315E03YP bypass switch 3-pole 3 shaft?
The article ABB 1SCA123581R1001 OT315E03YP bypass switch 3-pole 3 shaft is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ABB 1SCA123581R1001 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ABB 1SCA123581R1001 OT315E03YP bypass switch 3-pole 3 shaft always at the best possible price. We can give you a discount of 2% on ABB 1SCA123581R1001 OT315E03YP bypass switch 3-pole 3 shaft if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of ABB 1SCA123581R1001 OT315E03YP bypass switch 3-pole 3 shaft we can offer you a price of 2.272,56 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
